3.3. USB Interface
The EVB provides a USB 3.0/2.0 Type-C interface and supports high-speed (480 Mbps) and full-speed
(12 Mbps) for connection with a host device, as shown in Figure 9 and Figure 10. This USB interface is
used for AT command communication, data transmission, GNSS NMEA sentences output, software
debug and firmware upgrade and voice over USB*.
Table 5: Description of USB Interface

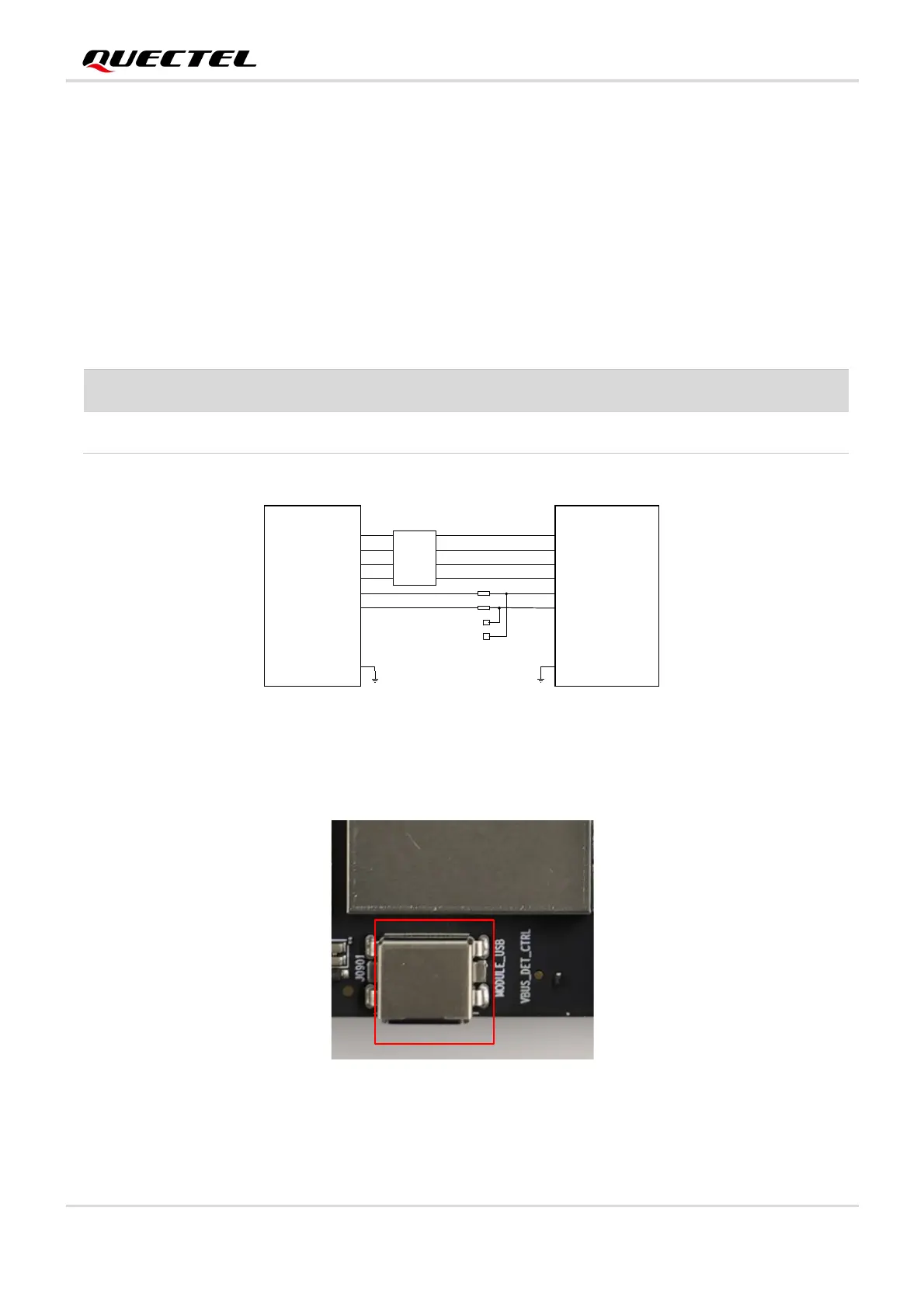

Figure 9: Connection Between Module and USB Type-C Interface
Figure 10: USB Type-C Interface
J0901 J0101
USB_DM
USB_DP
USB_SS_TX_P
USB_SS_TX_M
USB_SS_RX_P
USB_SS_RX_M
USB
Type-C
Controller
USB_DM
USB_DP
USB_SS_RX_P
USB_SS_RX_M
USB_SS_TX_P
USB_SS_TX_M
TP0901
0Ω
0Ω
Module TE-A
TP0902
USB Type-C
USB Type-C
J0901
RefDes.
Description
J0901
USB Type-C interface
