4 Operation Procedures
BG95xA-GL & BG950S-GL TE-B can be used alone to upgrade firmware, power consumption test and
debug applications based on BG95xA-GL & BG950S-GL module. The following describes the operation
procedures of using TE-B along.
4.1. Operation Procedure with Single Board
4.1.1. Interface Diagram of Using TE-B Alone
J0301
J0501
S0403

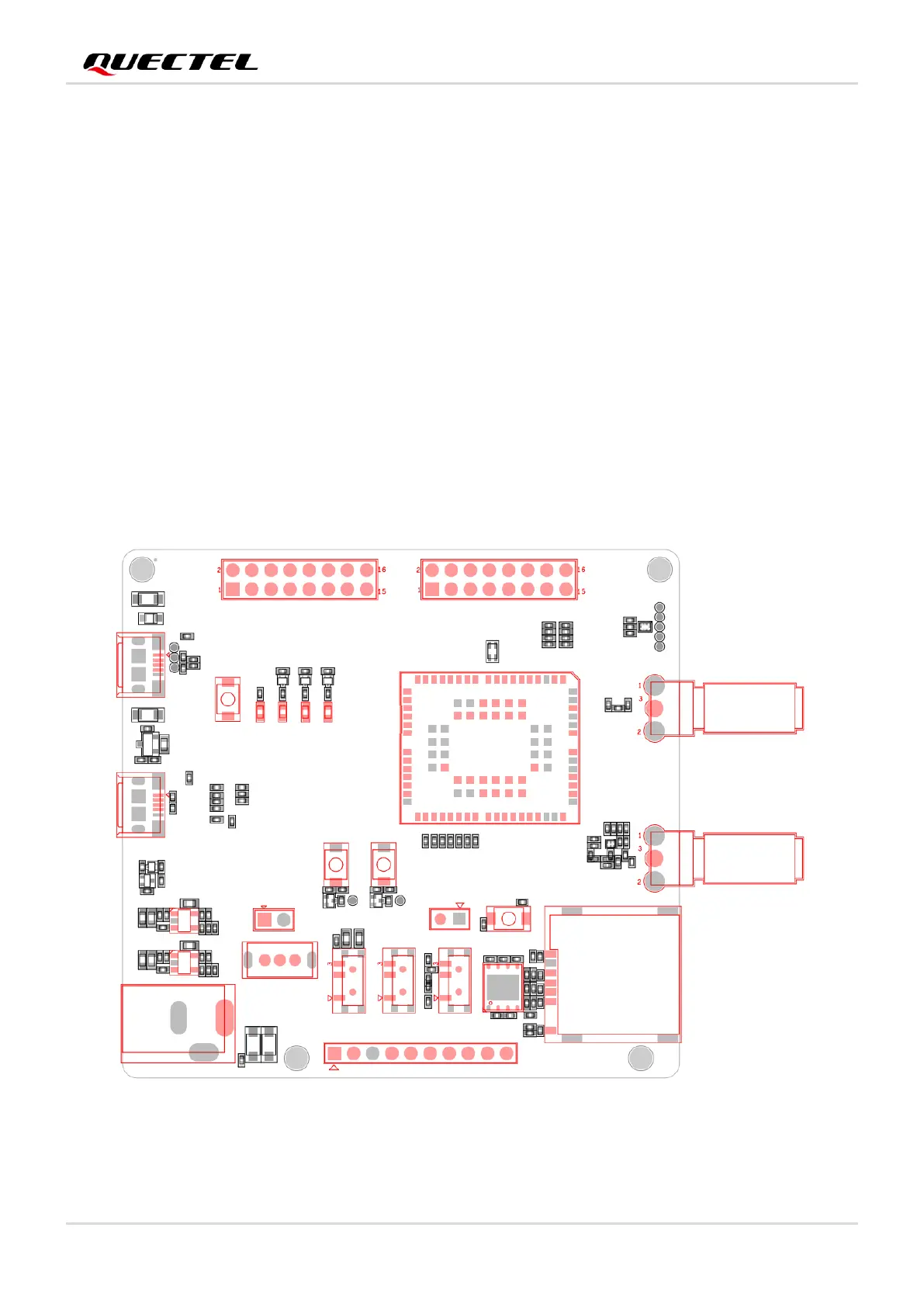

Figure 8: Interface Diagram of Using TE-B Alone
