LPWA Module Series
BG95 Hardware Design
BG95_Hardware_Design 36 / 80
Table 8: Pin Definition of PWRKEY
When BG95 is in power off mode, it can be turned on to normal mode by driving the PWRKEY pin to a low
level for a duration between 500ms and 1000ms. It is recommended to use an open drain/collector driver
to control the PWRKEY. A simple reference circuit is illustrated in the following figure.
Turn on pulse
PWRKEY
4.7K
47K
500ms~1000ms
10nF

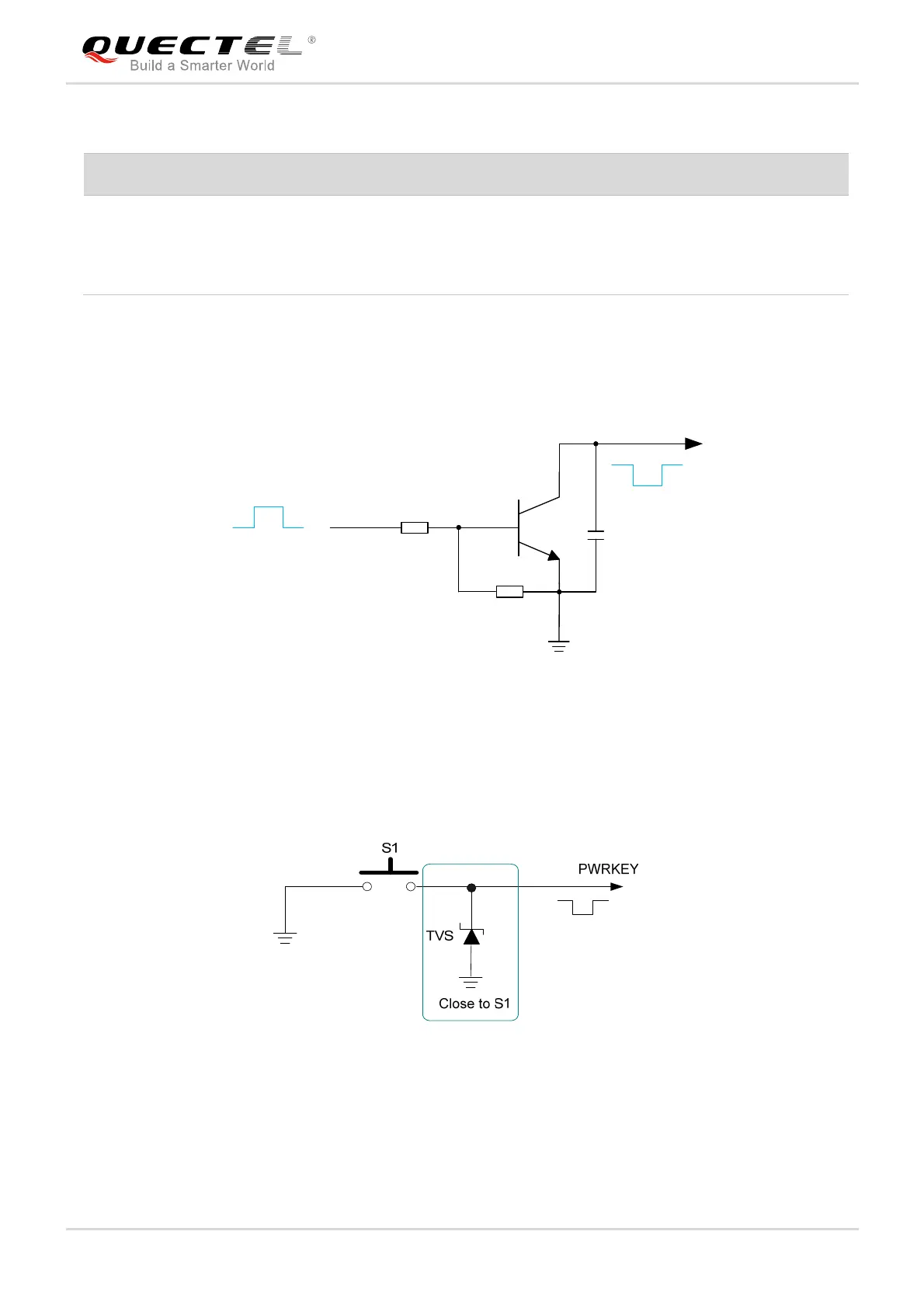

Figure 6: Turn on the Module Using Driving Circuit
Another way to control the PWRKEY is using a button directly. When pressing the key, electrostatic strike
may generate from the finger. Therefore, a TVS component is indispensable to be placed nearby the
button for ESD protection. A reference circuit is shown in the following figure.
Figure 7: Turn on the Module Using Keystroke
The turn on scenario is illustrated in the following figure.
Pin Name Pin No. Description DC Characteristics Comment
PWRKEY 15 Turn on/off the module
Vnorm=1.5V
V
IL
max=0.45V
The output voltage is
1.5V because of the
diode drop in the
Qualcomm chipset.
To Next Page
