3.13. STATUS
The STATUS pin is used to indicate the operation status of BG95 module. It will output high level when
the module is powered on.
The following table describes the pin definition of STATUS.
Table 19: Pin Definition of STATUS

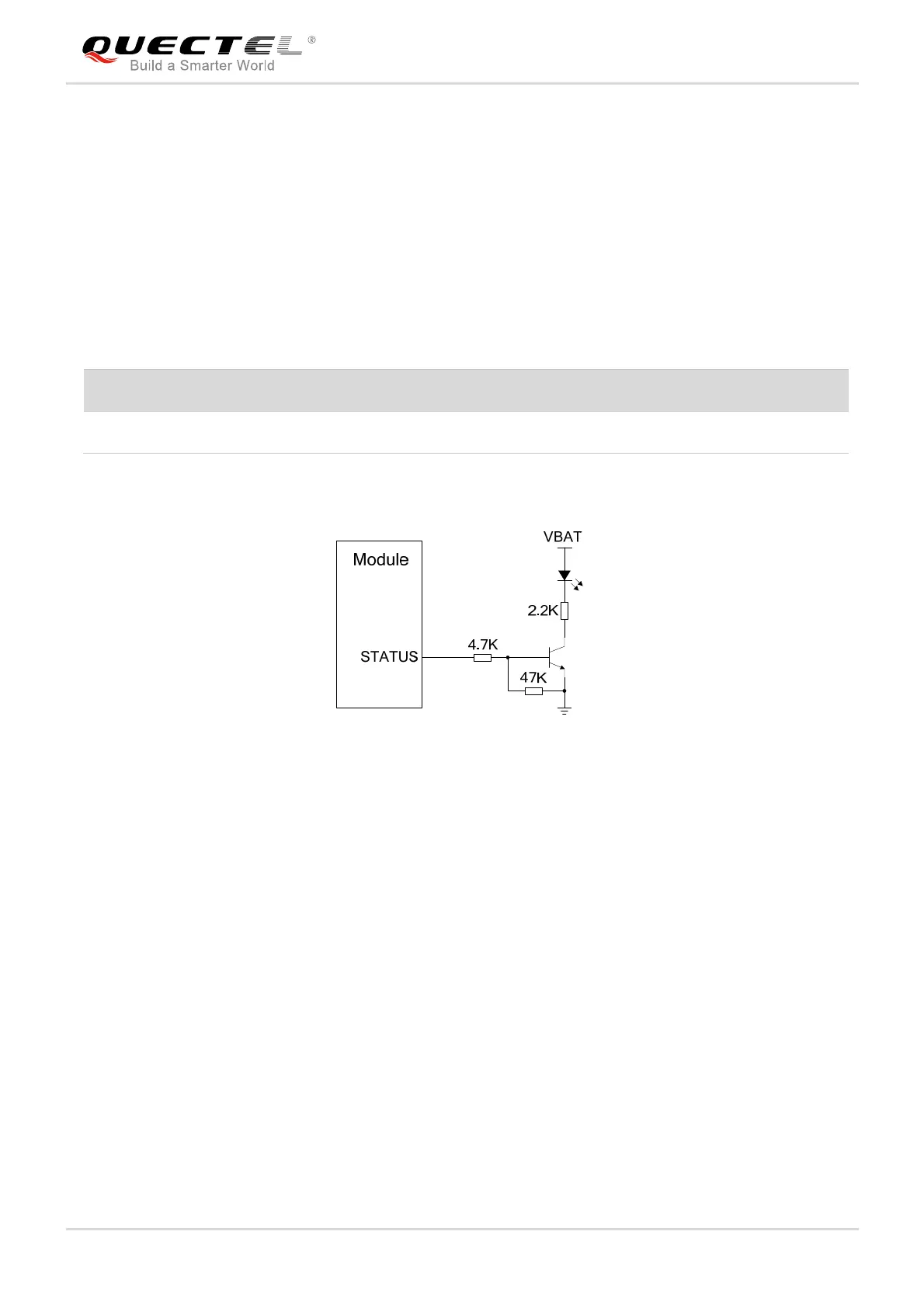

The following figure shows a reference circuit of STATUS.
Figure 20: Reference Circuit of STATUS
3.14. Behaviors of RI*
AT+QCFG="risignaltype","physical" command can be used to configure RI behavior.
No matter on which port URC is presented, URC will trigger the behavior of RI pin.
The default behaviors of RI are shown as below.
Pin Name Pin No. I/O Description Comment
STATUS 20 DO Indicate the module’s operation status 1.8V power domain
