EM05 Hardware Design
EM05_Hardware_Design Confidential / Released 37 / 59
Table 14: RF Status Indications of LED# Signal
3.11.3. WOWWAN# Signal
The WOWWAN# signal is an open drain signal, and requires a pull-up resistor on the host. When a URC
returns, a 1s low level pulse will be outputted. The state of WOWWAN# signal is shown as below.
Table 15: State of the WOWWAN# Signal
Wake up the host
1s
High
Low
(external pull-up)

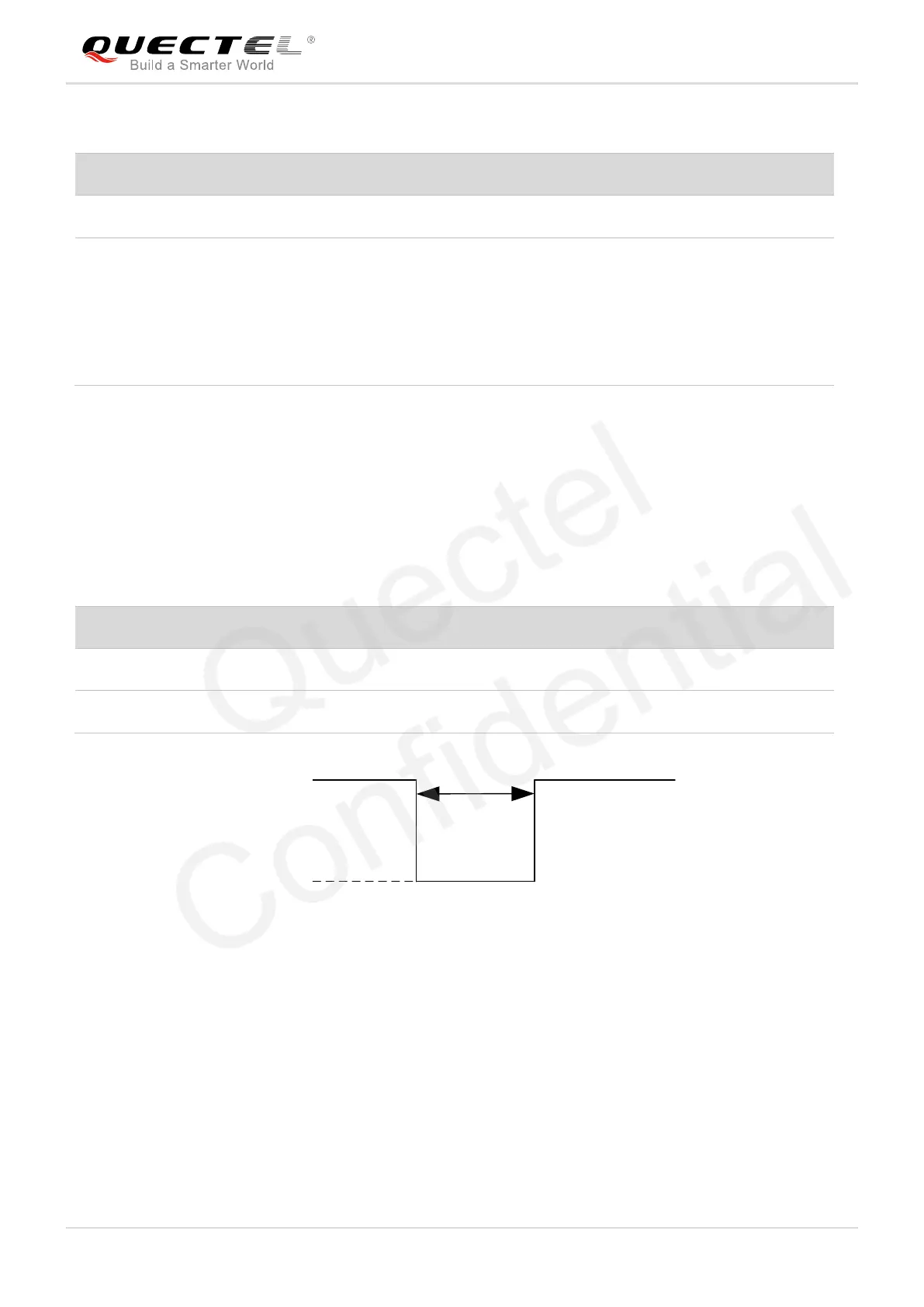

Figure 24: WOWWAN# Behavior
LED#
Description
Low Level (Light on)
RF function is turned on
High-impedance (Light off)
RF function is turned off if any of the following circumstances
occurs:
 The card is not powered
 W_DISABLE1# signal is at low level. (Disable the RF)
 AT+CFUN=0
 AT+CFUN=4
No.
WOWWAN#
Operating Status
1
Output 1s low level (pulse signal)
Call/SMS/Data
2
Always at high level
Idle/Sleep
