Quectel EC2 Series User Manual

LTE Module Series
EM05 Hardware Design
EM05_Hardware_Design Confidential / Released 43 / 59
Max input power (W): 50
Input impedance (ohm): 50
Polarization type: Vertical
Cable insertion loss: <1dB
(WCDMA B8, CDMA BC0, LTE B5/B8)
Cable insertion loss: <1.5dB
(WCDMA B1, LTE B1/B3)
Cable insertion loss <2dB
(LTE B38/B39/B40/B41)
5.3.2. Recommended RF Connector for Antenna Installation
EM05 supports antenna connection via buckled RF connectors. Buckled RF connector MM4829-2702
supplied by MURATA or other equivalent connectors are recommended. The dimensions of
MM4829-2702 connector are shown as below.

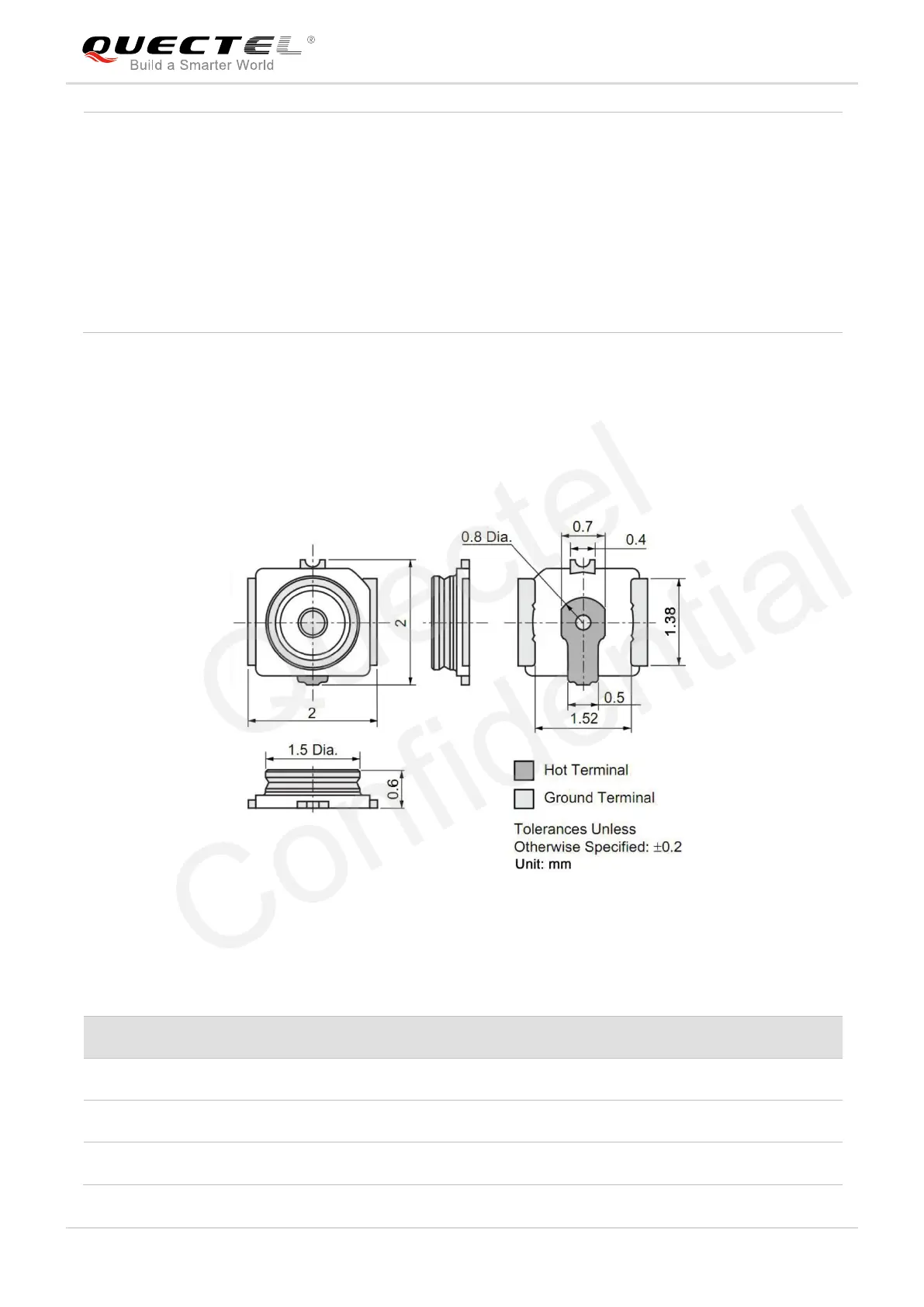

Figure 27: Dimensions of the MM4829-2702 Connector (Unit: mm)
Table 22: Major Specifications of MM4829-2702 Connector
Item
Specification
Nominal Frequency Range
DC to 6 GHz
Nominal Impedance
50Ω
Temperature Rating
-40°C to +85°C
