LTE Standard Module Series
EC200U_Series_Hardware_Design 85 / 94
6.2. Recommended Footprint

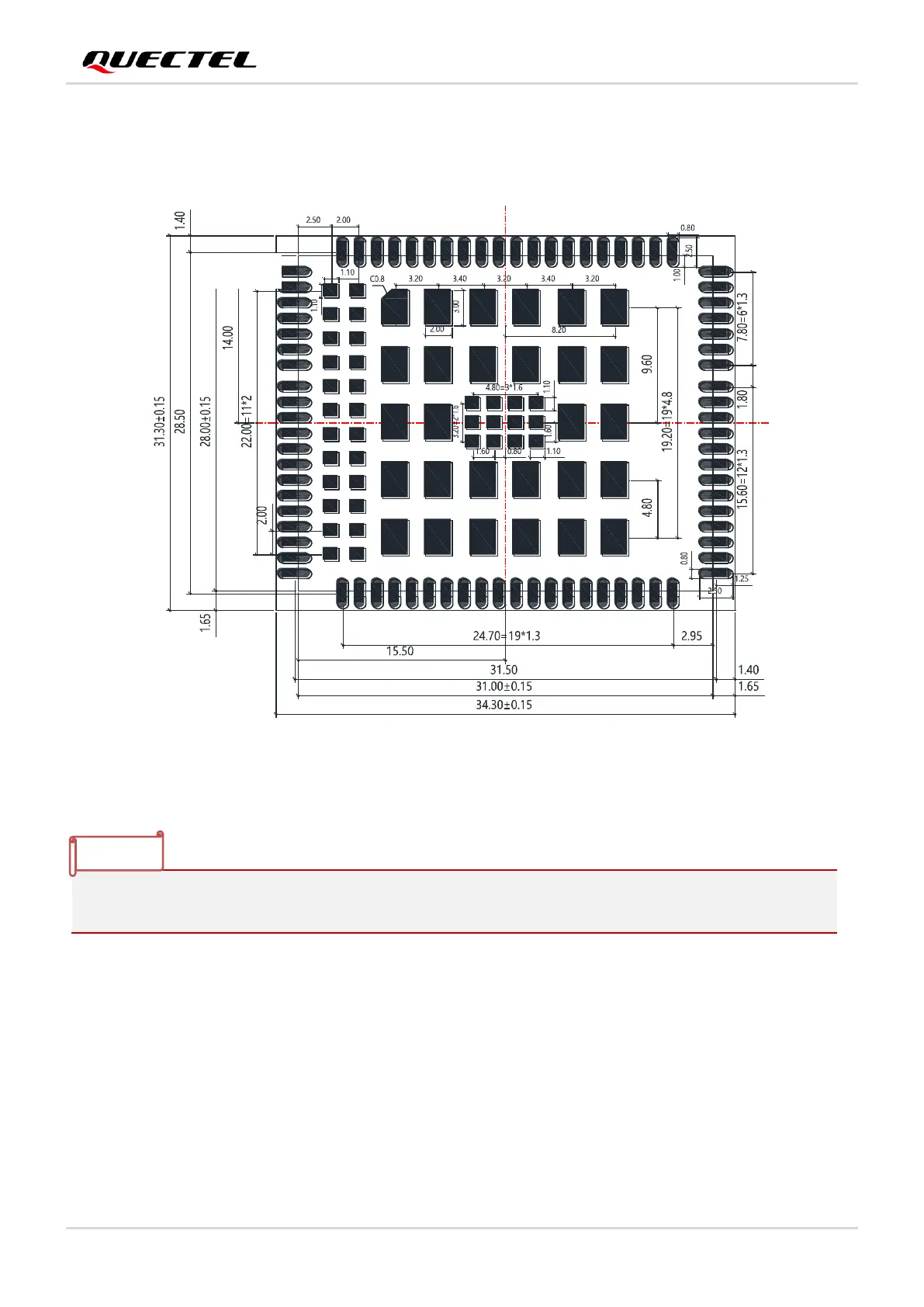

Figure 40: Recommended Footprint (Top View)
Keep at least 3 mm between the module and other components on the motherboard to improve
soldering quality and maintenance convenience.
NOTE
Pin 1
