7.3.1. Carrier Tape
Dimension details are as follow:

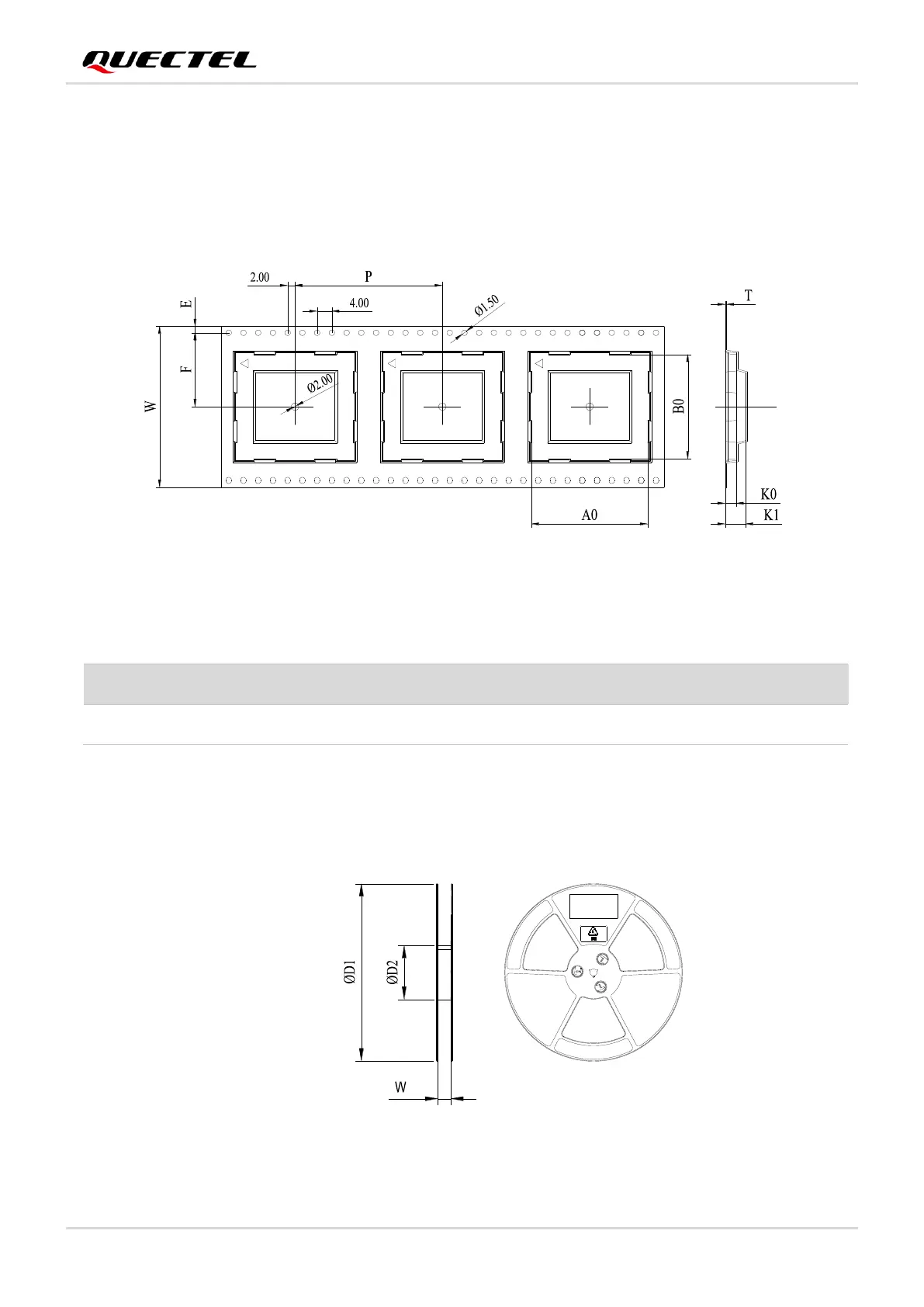

Figure 43: Carrier Tape Dimension Drawing
Table 54: Carrier Tape Dimension Table (Unit: mm)
7.3.2. Plastic Reel
Figure 44: Plastic Reel Dimension Drawing
W
P
T
A0
B0
K0
K1
F
E
44
40
0.4
31.5
28.5
3.0
5.6
20.2
1.75
