6.2. Recommended Footprint

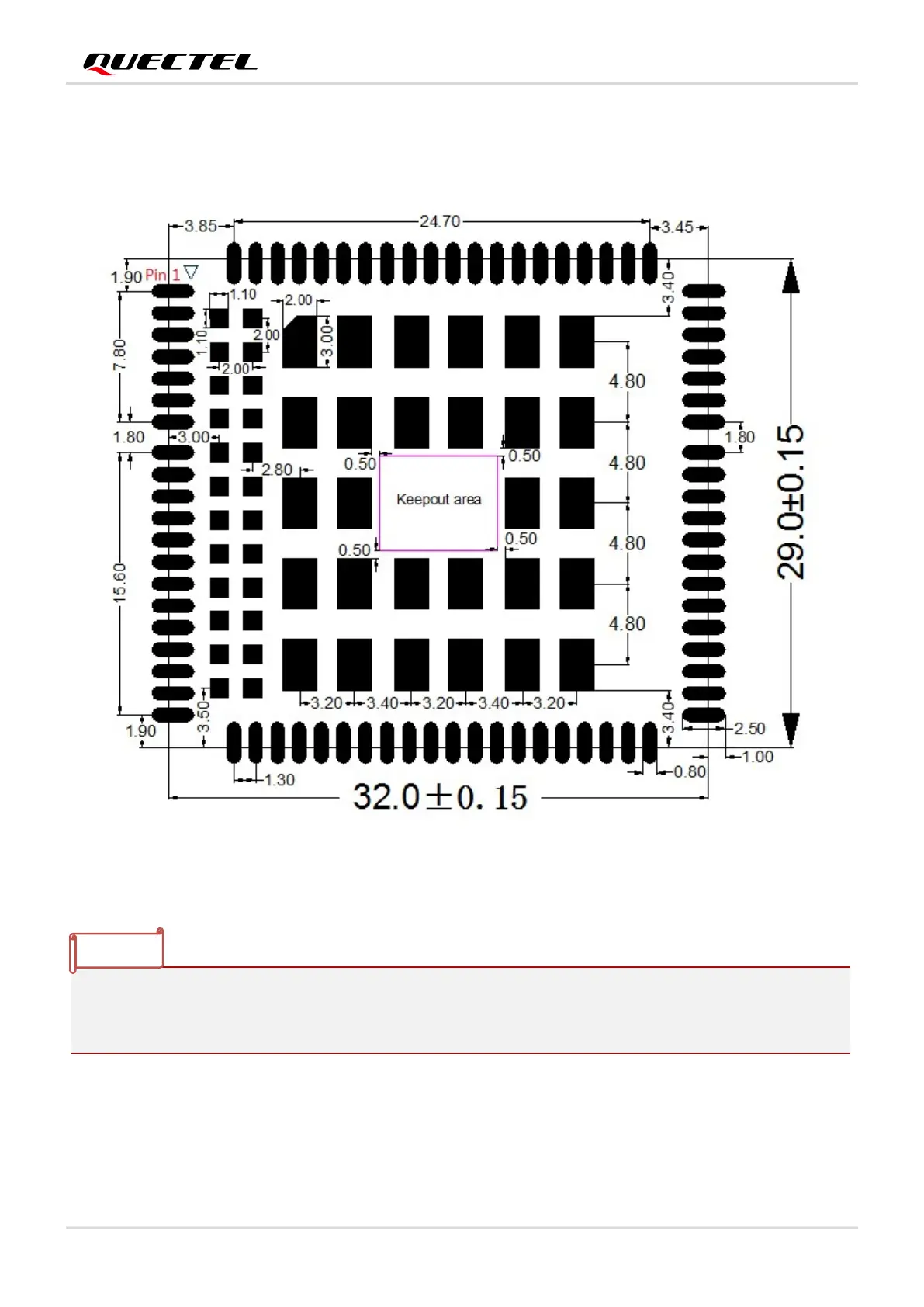

Figure 46: Recommended Footprint (Top View)
1. The keepout area (pin 73–84) should not be designed.
2. For easy maintenance of the module, keep about 3 mm between the module and other components
on the motherboard.
