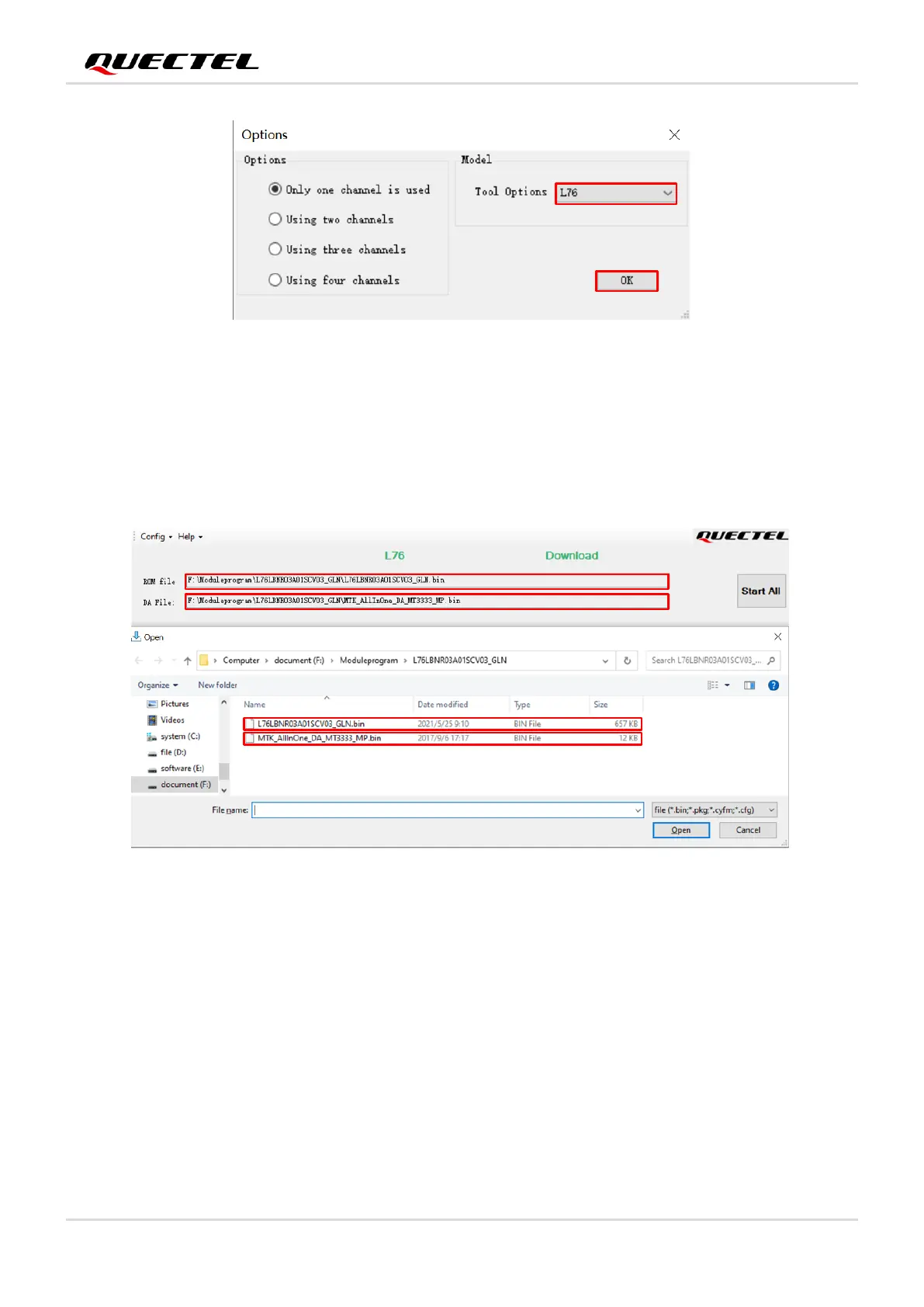

Figure 25: Firmware Upgrade – Step 2
Step 3: Double click the “ROM file” field to select the ROM file, e.g. “L76LBNR03A01SCV03_GLN.bin”,
then double click the “DA File” field to select the DA file, e.g.
“MTK_AllInOne_DA_MT3333_MP.bin”, as shown in the figure below.

Figure 26: Firmware Upgrade – Step 3
Step 4: Confirm the “Serial Port” and “Baudrate”, and then then click “Start” to download, as shown in
the figure below.
The setting of the baud rate will affect the download speed. Based on Step 2, the baud rate will
be automatically selected.
