GNSS Module
L76 EVB User Guide
L76_EVB_User Guide Confidential / Released 24 / 25

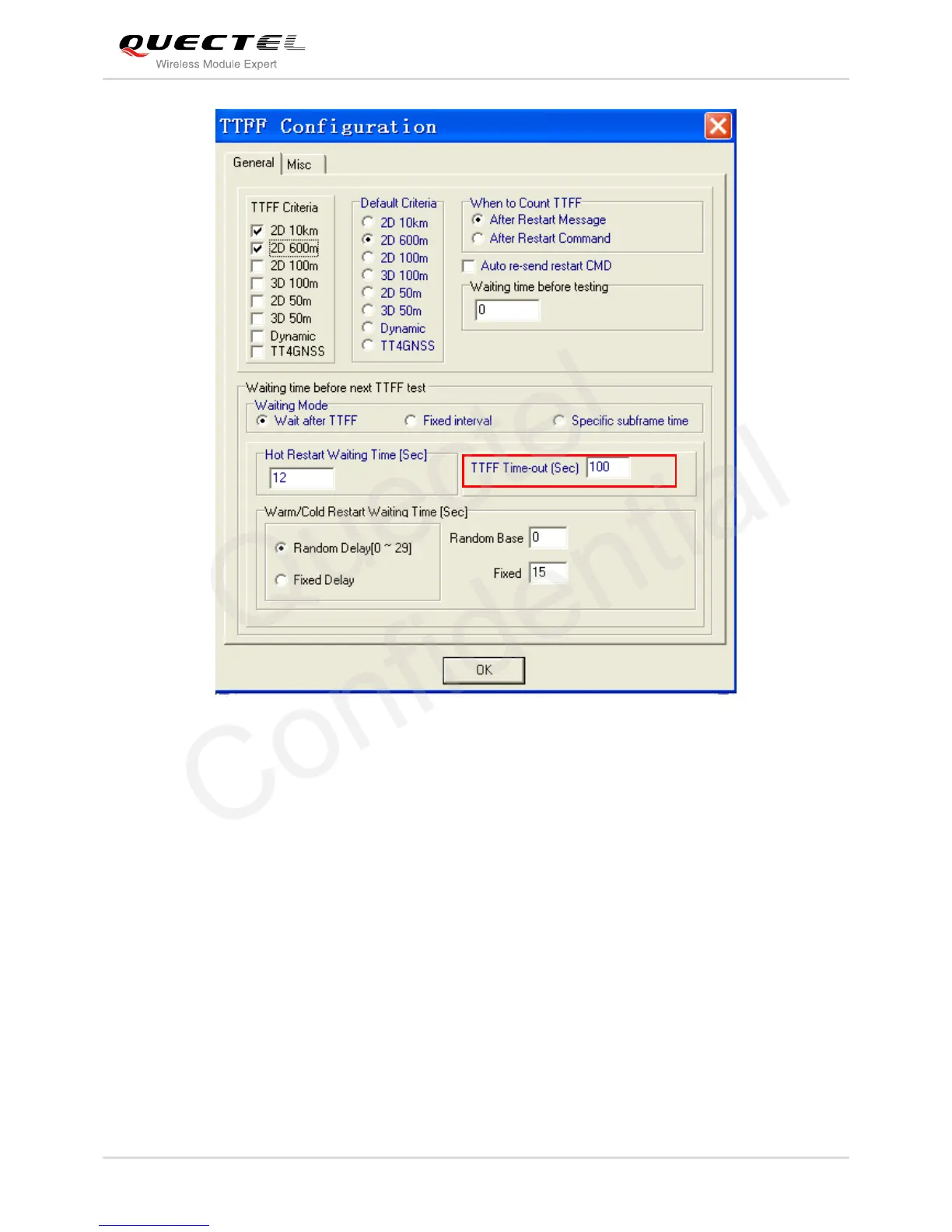

Figure 16: Static TTFF Testing Configuration
The above operation is completed. Click on the Run button to start the test and it can be stopped by
clicking Stop button.
After finishing the testing, you can see the testing result charts. Of course, the result also will be stored in
the tool installation path, and you can view the corresponding log.
