Quectel L80 User Manual

GNSS Module Series
L80&L80-R&L86&LC86L EVB User Guide
L80&L80-R&L86&LC86L_EVB_User_Guide 12 / 30
3 EVB Interfaces
3.1. Micro-USB Interface
The micro USB connector is used for both power supply input and NMEA sentences output.

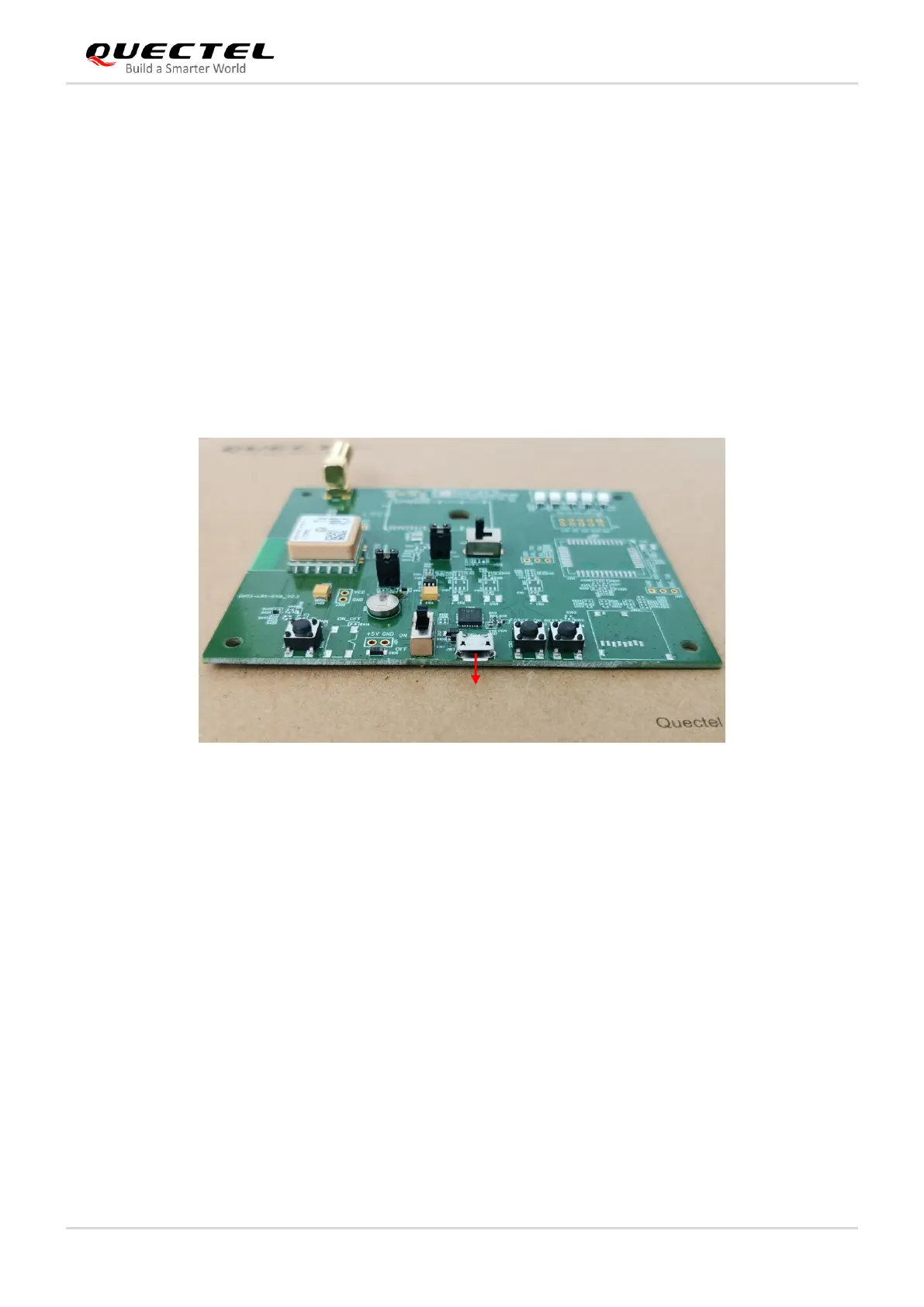

Figure 4: Micro-USB Connector
3.2. Antenna Interface
The EVB is mounted with an antenna connector for the connection with an external active GNSS
antenna.
Micro USB
Connector
