M12 Hardware Design
M12_Hardware_Design_V3.3 - 53 -

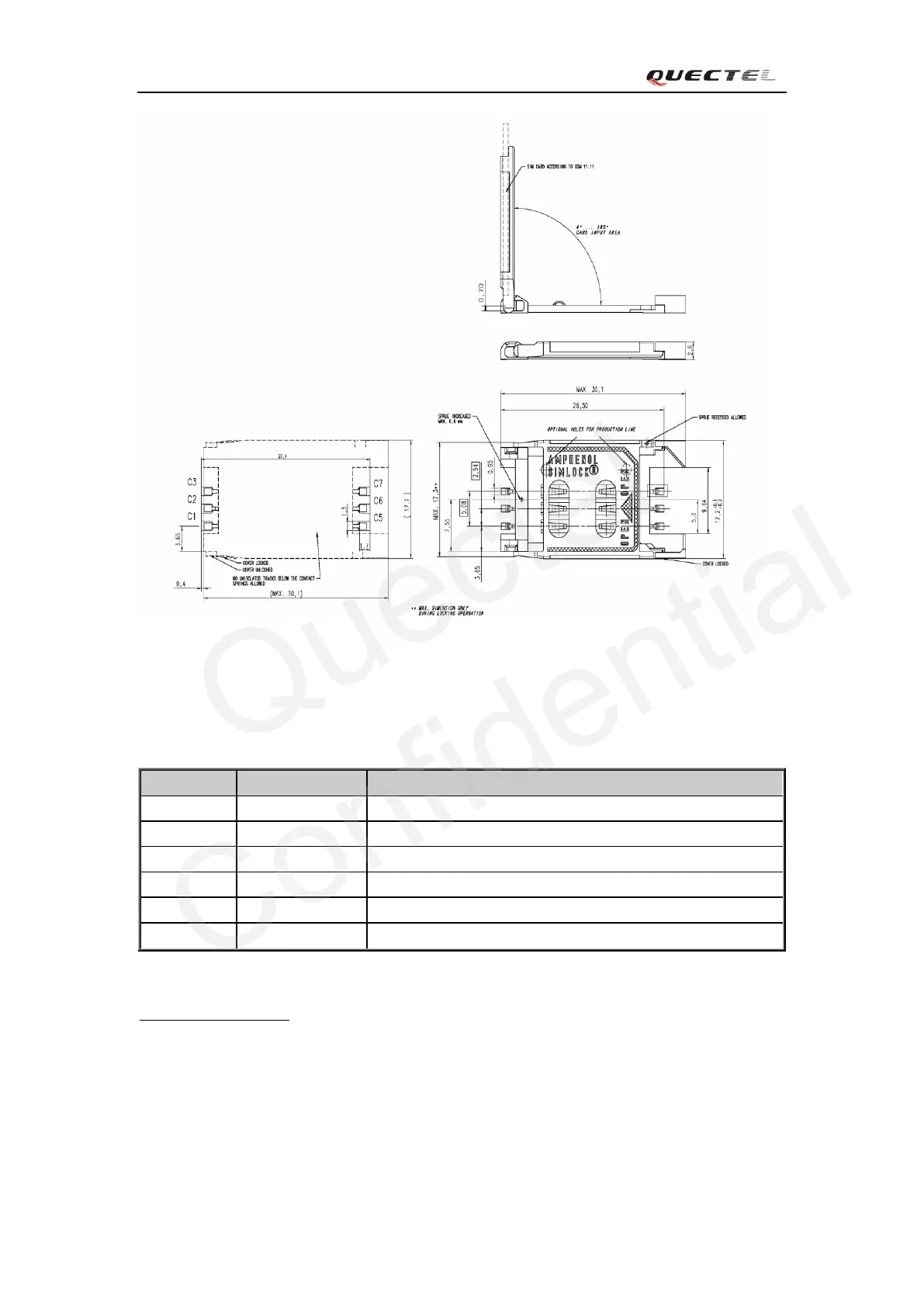

Figure 35: Amphenol C707 10M006 512 2 SIM card holder
Table 14: Pin description of Amphenol SIM card holder
Name
Pin
Function
SIM_VDD
C1
SIM Card Power supply
SIM_RST
C2
SIM Card Reset
SIM_CLK
C3
SIM Card Clock
GND
C5
Ground
VPP
C6
Not Connect
SIM_DATA
C7
SIM Card data I/O
For 8-pin SIM card holder, it is recommended to use Molex 91228. Please visit
http://www.molex.com for more information.
