QUICK BTR Series INSTALLATION AND USER’S MANUAL - REV 001C
10

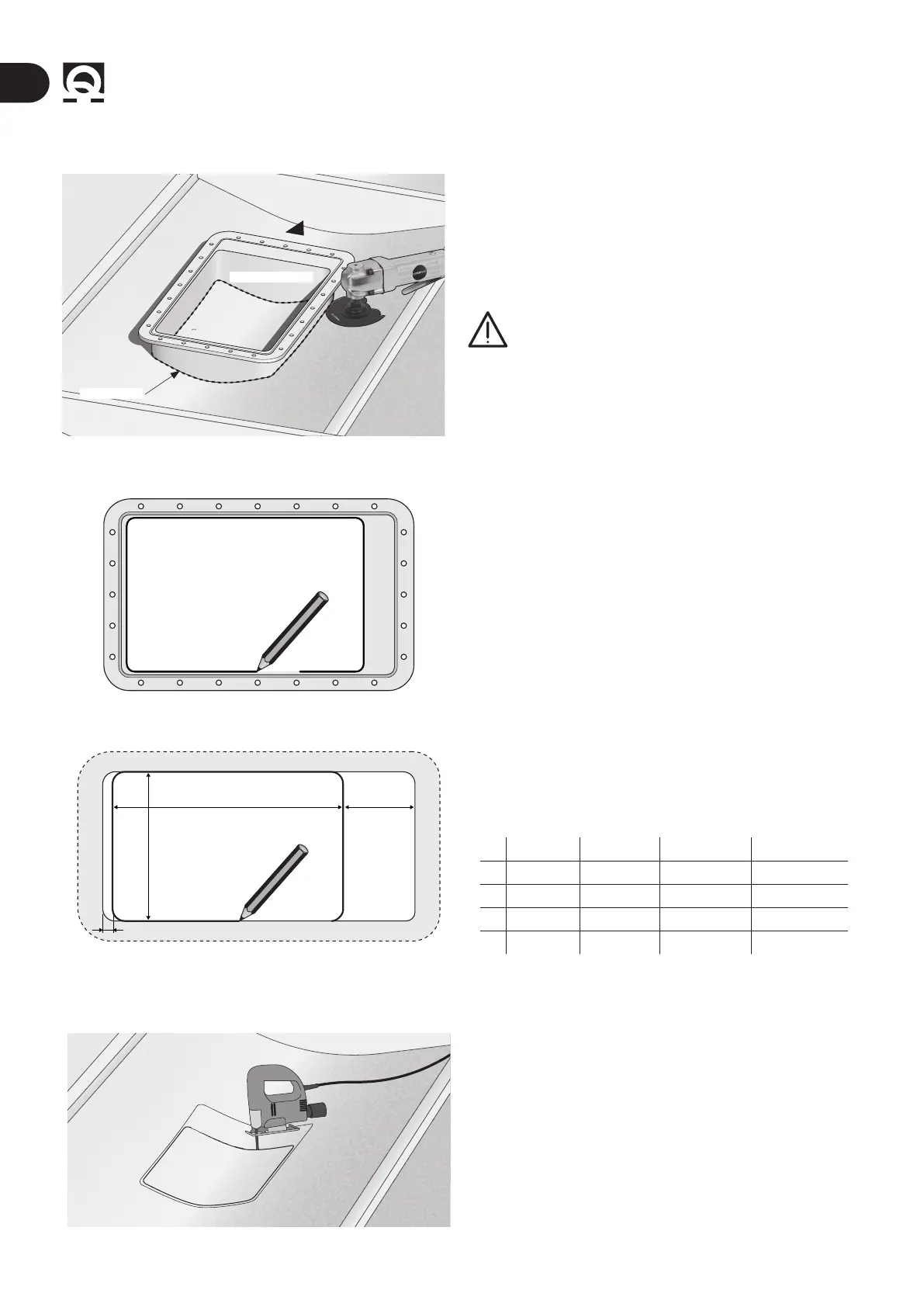

4 - Installation
CUT LINE
BOW
COUNTER FLANGE
• Place the appropriately cut counter ange and check that
the four sides adhere to the hull, if this is not the case, adapt
it until it rests and adheres to the hull in the position where it
is meant to be xed.
WARNING: take into account the minimum
dimensions for the nal placement of the hinge
(see g.13, page 12).
Fig.2
• Mark the inner perimeter of the counter ange on the hull
with a marker (g. 2).
Fig.3
A B
C
D
• Remove the counter ange and mark the cutting area: (g.3)
Ø140 Ø185 Ø250 Ø300
A 320mm 350mm 480mm 604mm
B 100mm 95mm 150mm 110mm
C 200mm 280mm 310mm 440mm
D 0mm 0mm 20mm 0mm
Fig.4
• Make the hull opening by cutting along the line of the
marked cutting area (g. 4).
