26
CHC1103 IT EN FR - REV001A
EN
INSTALLATION
UP
UP DOWN
DOWN
120
Connecting the instrument
After installing the socket as instructed above, proceed as directed below:
• Turn the cover’s ring nut counter-clockwise and take it out.
• Insert the instrument’s plug into the socket, being careful to plug it in the right direction.
• Turn the plug’s ring nut clockwise until it is fully tightened.
Disconnecting the instrument
• Turn the plug’s ring nut counter-clockwise and take it out.
• Cover the socket with the cover provided, turning the ring nut clockwise
ATTENTION: make certain the socket is covered with the cover provided when the instrument is disconnected.

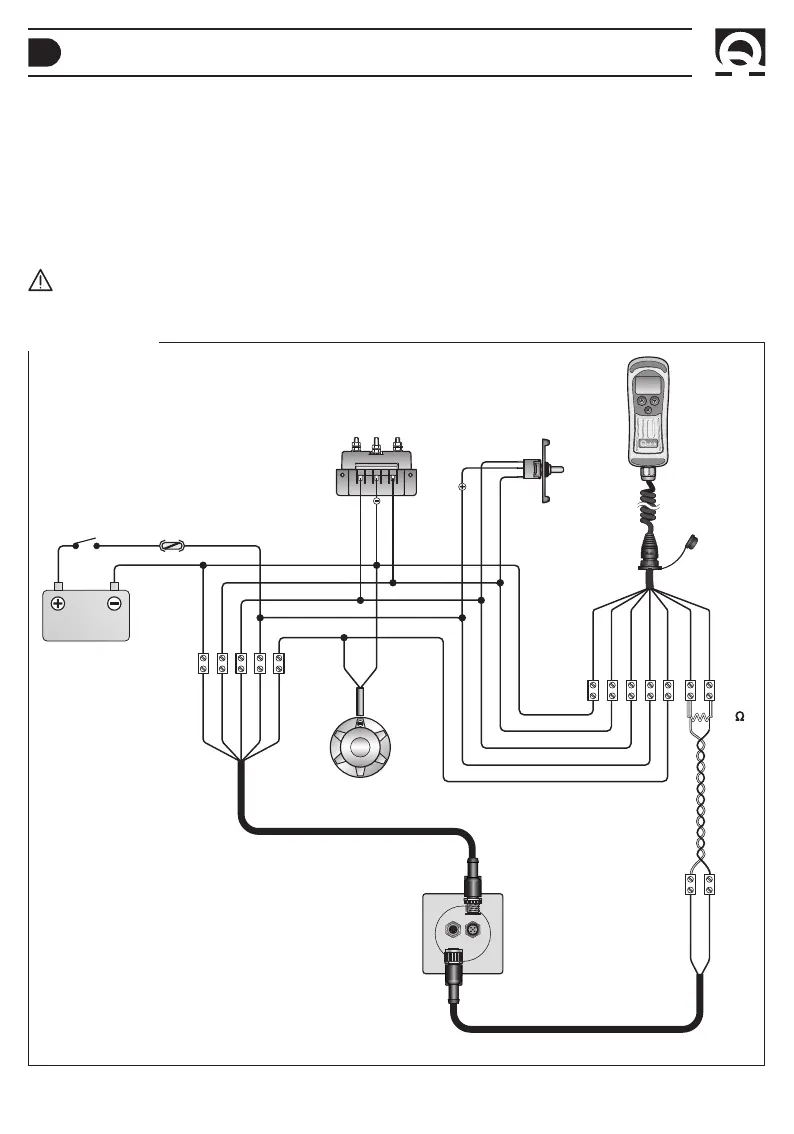

WIRING DIAGRAM
SWITCH
FUSE 4A
FAST
GYPSY
* OPTIONAL
CHC1103
CHAIN COUNTER
CHC1203
CHAIN COUNTER
* FNCH3CC00500A00
0.5M CHC3 CAN CABLE
SENSOR
CONTACTOR UNIT/
REVERSING CONTACTOR UNIT
AUXILIARY
COMMAND
BAT TERY
12/24 V
GREEN
BROWN
BLACK
BLUE
BLUE
BLACK
BROWN
WHITE
WHITE
RED
GREY
GREEN
GREEN
ORANGE
