28
CHC1103 IT EN FR - REV001A
EN
CHAIN COUNTER OPERATION
MAIN WINDOW

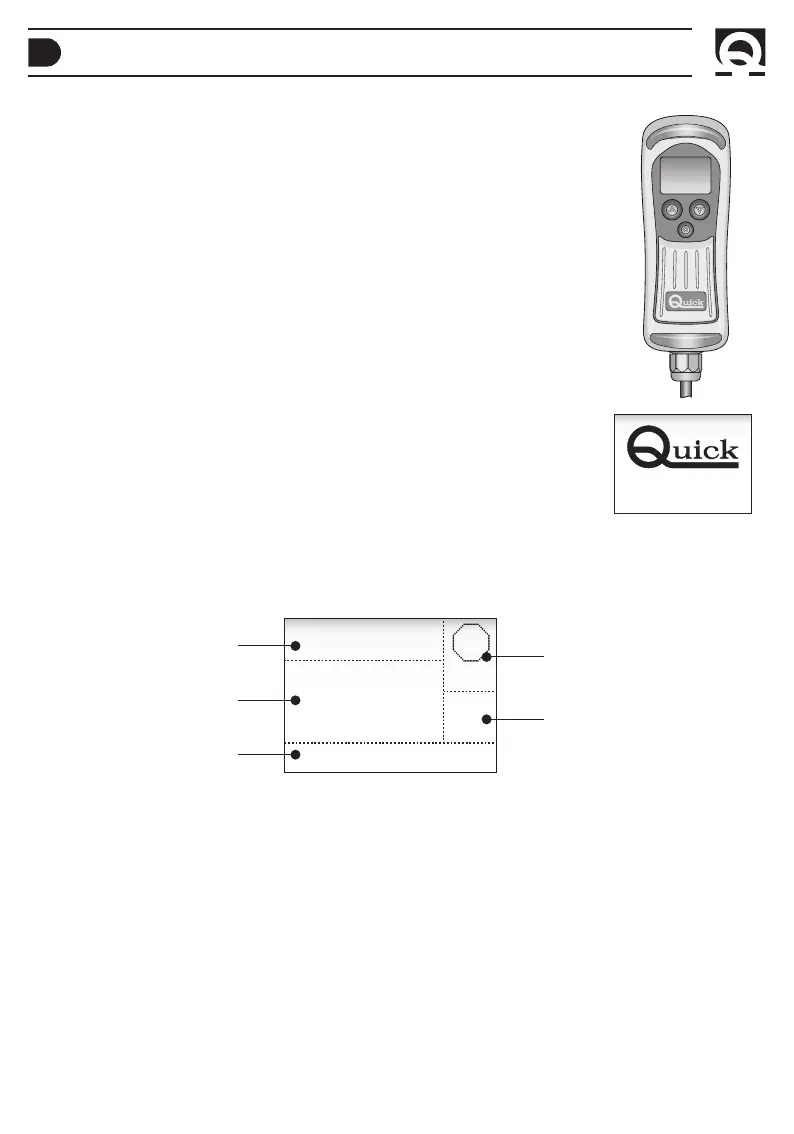

Once the initialization procedure has been completed, the main window is displayed:
This window is divided into the following sections:
Count line The length of the chain lowered is shown in this area.
Measure unit area The unit of measurement currently being used is shown in this area. The values may be
displayed in “M” for meters and “FT” for feet.
State line Messages regarding the state of the chain counter or faults detected are shown here.
Icon area The icons regarding the state of the chain counter or faults detected are shown here.
Monitor line The following information may be displayed here, depending on the selections made by the
user: supply voltage and chain speed.
STOP
35.3
M
SPEED OM/M
STOP
State line
Count line
Icon area
Measure unit area
Monitor line
CHAIN COUNTER OPERATION
Three elements are employed between user and counter interface:
A GRAPHIC DISPLAY, CONTROL KEYS AND BUZZER.
The graphic display screen shows the measure of chain lowered, state of the chain
counter along with other information.
The control keys comes with three keys. The two side keys are used to move the anchor
up (
p
, UP key) or down (
q
, DOWN key), move within the system menus or modify the
value of parameters.
The middle key (
=
SELECT) is used to select the monitoring mode, go to the system
menus or confirm parameters.
The buzzer signals when the keys have been pressed or when it is necessary to call the
user’s attention.
Use the switch on the power supply line to turn the chain counter on and off.
When the chain counter is turned on, the following window is displayed for a few seconds:
When the chain counter is turned on the first time, the menu used to select the language
in which messages are displayed appears.
The selected language can be changed later on.
CHC1103
CHAIN COUNTER
