SYSTEM FAULT - MAINTENANCE - TECHNICAL DATA

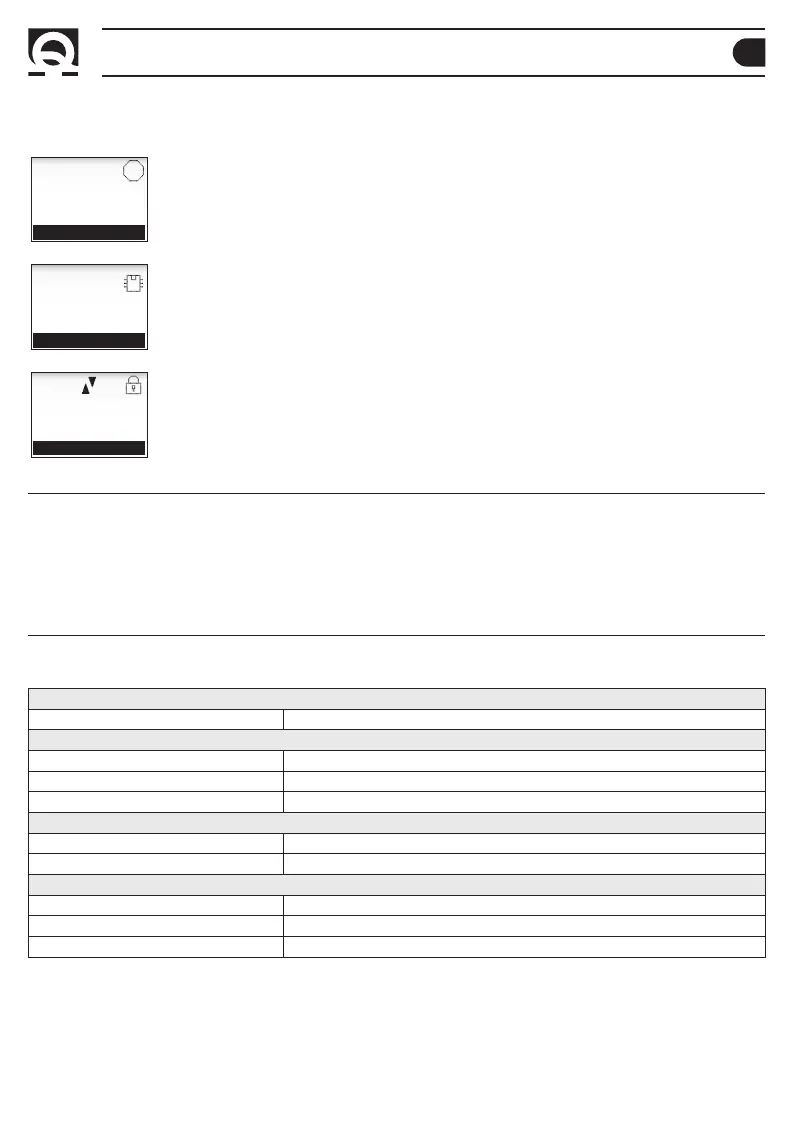

CONFIRMATION MESSAGES
Confirmation messages that may appear on the state line are shown below.
Stop
When no commands are sent to the windlass, the following window is displayed:
Memory stored
As soon as four seconds elapsed from the last operation was completed (up, down, automatic
down, free fall), the chain counter stores the length of the lowered chain in the EEPROM memory.
The window shown below is displayed while the data are being saved:
Locked Controls
Once the time set in the LOCKED KEYS parameter has elapsed, the instrument will inhibit the func-
tionality of the
p
and
q
and (UP and DOWN) keys; pressing these keys will have no effect. Press-
ing the
=
key (SELECT) will reactivate the functionality of the
p
and
q
(UP and DOWN) keys.
STOP
35.3
M
SPEED
0M/M
STOP
MEMORY STORED
35.3
M
SPEED
0M/M
LOCKED
35.3
M
SPEED
0M/M
(1) The chain counter can reset itself if the voltage is less than 9 Vdc.
(2) Typical value with back-lighting off and windlass not on.
(3) Typical value with back-lighting on at highest level and windlass on.
(4) With temperatures below 0°C the crystals in the LCD slow down.
(5) With the plug correctly inserted into the socket. Excluding the area of the socket where the exit cable is fixed (IP 00).
TECHNICAL DATA
OUTPUT CHARACTERISTICS
UP/DOWN contacts current 4A max
INPUT CHARACTERISTICS
Supply voltage (1) 9 ÷ 32 Vdc
Current absorbed when idling (2) 31 mA @ 12V - 18 mA @ 24 V
Maximum current absorbed (3) 85 mA + current used by solenoid unit
AMBIENT CHARACTERISTICS
Operating temperature (4) from -20 to +70 °C
Degree of protection (5) IP 67
GENERAL CHARACTERISTICS
Communication interface CAN BUS with differential transceiver
Weight 750 g
EMC class EN 60945 - FCC Part 15 Rules 47
MAINTENANCE
The chain counter does not require any particular maintenance. To assure top performance, check the cables and electri-
cal connections once a year.
Clean the chain counter with a soft rag dampened in water. Do not use chemicals or harsh products to clean the chain
counter.
QUICK
®
RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.
