QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
9
3 - Introduction
3.1 - Precautions
Quick
®
windlasses are designed and manufactured to weigh the anchor.
• Do not use these products for any other type of operation.
• Quick
®
shall not be held liable for direct or indirect damage caused by improper use of the product.
• The windlass is not designed to support loads generated in particular weather conditions (storm).
• Operate the product from a position where it is possible to supervise the work area.
• Always deactivate the windlass when not being used.
• Make sure that there are no bathers nearby before dropping the anchor.
• The splice between the rope and the chain must be tightly woven for the rope to slide easily into the gypsy shape.
For any problem or request, feel free to contact Quick® Technical Service.
• For improved safety, we recommend installing at least two controls to operate the windlass in case one is
damaged.
• We recommend the use of Quick
®
switch as motor safety device.
• Secure the chain with a retainer before sailing off.
• The reversing contactor box must be installed in a position protected from any water entry.
• Aftercompletingtheanchorage,securethechaintoxedpointssuchaschainstopperorbollard.
• To prevent accidental releases, the anchor must be secured. The windlass must not be used as sole securing
device.
• Isolatethewindlassfromtheelectricalsystemduringnavigationandsecuretheropetoaxedpointoftheboat.
• This equipment is not intended for use by people (including children) with reduced physical, sensory or mental
capabilities.
3.2- Precautions for the installer
CARRY OUT THE INSTALLATION IN GOOD LIGHTING CONDITIONS.
It is advisable to wear suitable clothing and personal protective equipment (PPE).
The product is not suitable for installation in potentially explosive environments and/or atmospheres.
Installationandsubsequentinspectionorrepairworkmustonlybecarriedoutbyqualiedpersonnel.
CARRY OUT INSTALLATION/MAINTENANCE WORK MAKING SURE THAT THE PRODUCT IS DISCONNECTED
FROM THE ELECTRICAL SYSTEM.
Quick
®
accepts no responsibility for inadequate connection of users to the electrical system and inadequate safety
of the electrical system.
4 - Installation
4.0 - Installation requirements

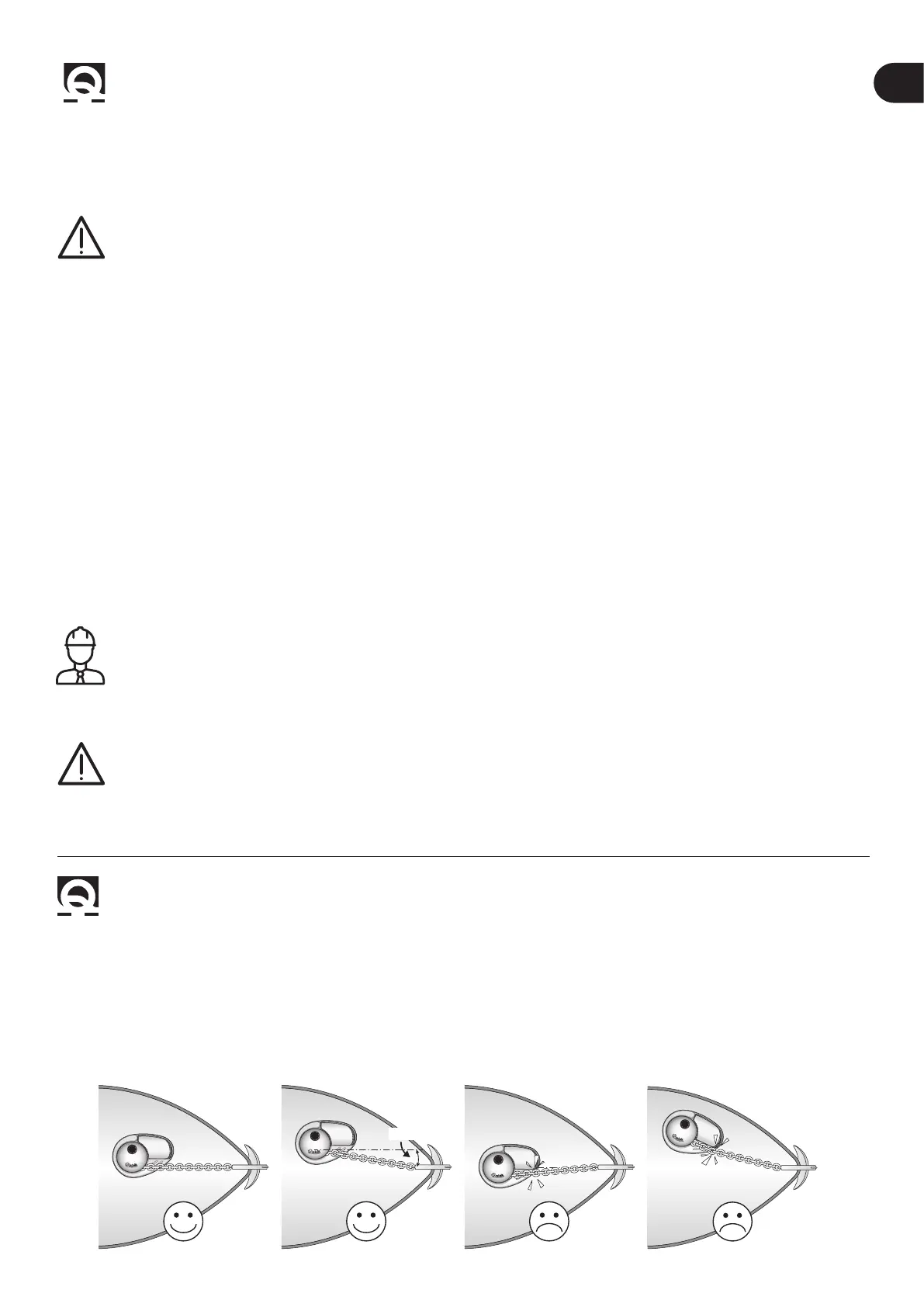

A ROLLER ALIGNMENT
Thewindlassmustbepositionedbyaligningthegypsywiththebowroller(g.1A / 2A).
Precise alignment of the windlass is essential for the correct operation of the product.
Apositivechaintiltofupto10°isallowed(g.2A).
Anexcessivenegativetiltofthechaincouldinterferewiththewindlassbase(g.3A / 4A).
