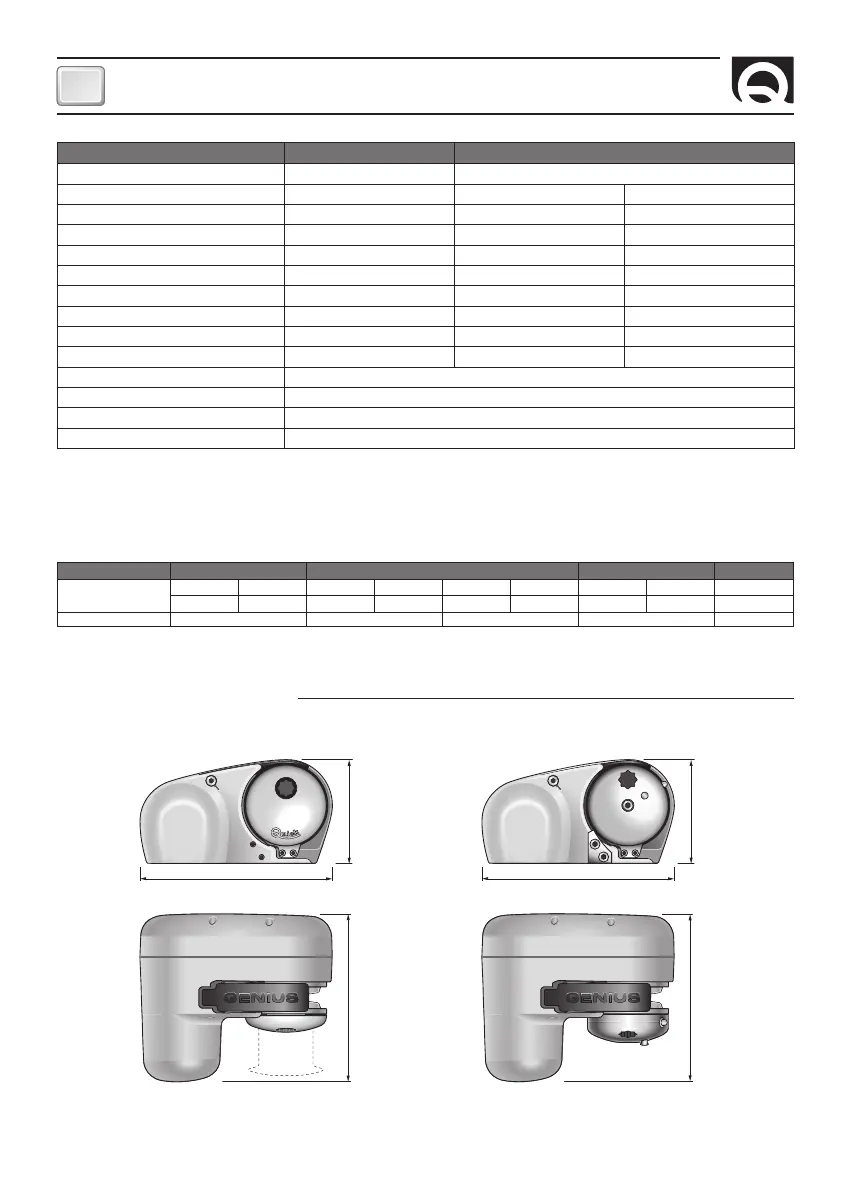

TECHNICAL DATA
GB
GP2 SERIES GENIUS 1500/2000 - REV000A
GB
DIMENSIONS OF MODELS mm ( inch )
(1) After an initial period of use.
(2) Measurements taken with a gypsy for a 8 mm chain.
(3) Minimum allowable value for a total length L< 20m (see pag. 16). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, studs can be supplied for greater deck thicknesses.
(*) The values in the table regard a three-strand polyester rope with the “Quick
®
” system rope/chain joint.
(**) ISO EN 818-3.
Quick
®
reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
F
MODELS GP2 1500 / D - GP2 1500 FF GP2 2000 / D - GP2 2000 FF
MOTOR OUTPUT 500W 800W
Motor supply voltage 12V 12V 24V
Maximum pull 680 Kg (1499,0 lb) 900 Kg (1984 lb) 900 Kg (1984 lb)
Maximum working load 250 Kg (551,0 lb) 350 Kg (772,0 lb) 350 Kg (772,0 lb)
Working load 85 Kg (187,0 lb) 120 kg (265,0 lb) 120 kg (265,0 lb)
Current absorption @ working load (1) 76 A 96 A 50 A
Maximum chain speed (2) 25,5 mm (83,7 ft/min) 29,6 mm (97,1 ft/min) 29,6 mm (97,1 ft/min)
Maximum chain speed @ working load (2) 10,3 mm (33,8 ft/min) 20,0 mm (65,6 ft/min) 20,1 mm (65,9 ft/min)
Motor cable size (3) 10 mm
2
(AWG7) 16 mm
2
(AWG5) 10 mm
2
(AWG7)
Protection circuit breaker (4) 40 A 80 A 40 A
Deck thickness (5) 20 ÷ 40 mm (3/4” ÷ 1” 9/16)
Weight mod. without drum 10,2 kg (22,4 lb)
Weight mod. with drum 11,5 kg (25,3 lb)
Weight mod. Free Fall 10,9 kg (24,0 lb)
GYPSY 6 mm 7 mm - 1/4” 8 mm 5/16”
Chain size
6 mm 6 mm 7 mm 7 mm 1/4” 1/4” 8 mm 8 mm 5/16”
DIN 766 ISO** DIN 766 ISO** G4 BBB DIN 766 ISO** G4
Rope size * 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm)
249 (9
25
/32)
135 (5
5
/16) 217 (7
31
/32)
249 (9
25
/32)
135 (5
5
/16) 217 (7
31
/32)
GP2 1500 FF - GP2 2000 FFGP2 1500 / D - GP2 2000 / D
