25
EN
INSTALLATION AND USE MANUAL QUICK MC² X3_DC REV001A
7 - Installation procedures

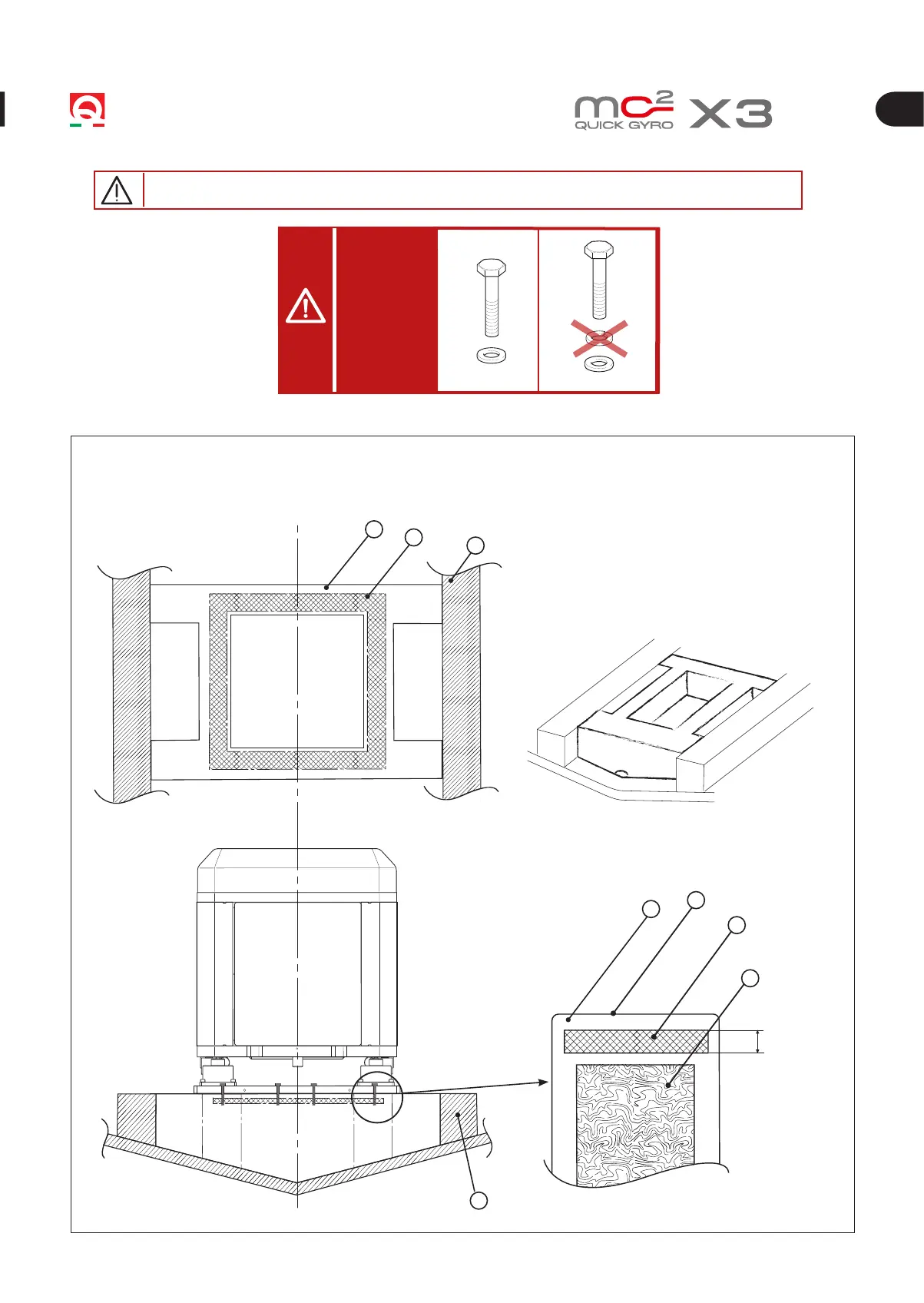

7.6 - Fiberglass Support - Example 1
A SADDLE
B BRASS PLATE
C EXISTING STRINGERS
D FIBERGLASS
E FILLING
1 - Example of berglass support structure with brass plates on a hull with enough space
in between the stringers.
Min. thickness
18 mm (45/64 in)
B
B
E
D
A
A
C
C
NO GROWER WASHER
DO NOT USE
GROWER
WASHERS
FOR FIXING TO
ANY
STRUCTURES
AND / OR
FASTENINGS
ON THE BOAT
THE EXAMPLES (1,2,3 and 4) THAT FOLLOW ARE ONLY FOR INDICATIVE PURPOSE
