7 - Installation procedures
A SADDLE
B BRASS PLATE
C EXISTING STRINGER
D FIBERGLASS

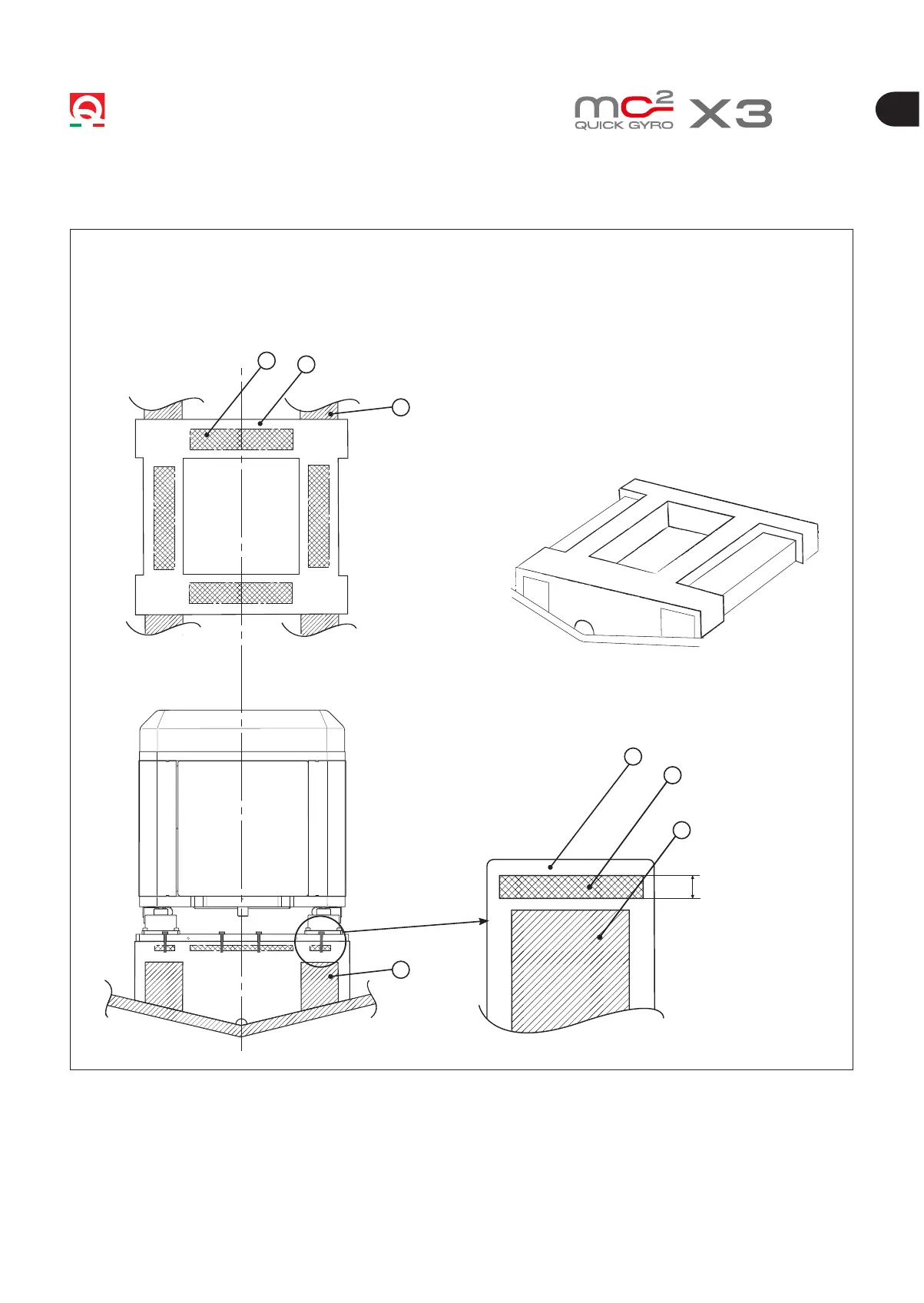

2 - Example of berglass support with brass plates on hull with insufcient space in between the longitudinal
stringers.
Min. thickness
18 mm (45/64 in)
7.7 - Fiberglass Support - Example 2
