Quickie 2, 2HD - Footrests, Legrests, & Footplates

ENGLIS H
17
MK-100070 RevA
L. FOOTRESTS, LEGRESTS, & FOOTPLATES
Make sure that your Sunrise dealer has correctly adjusted your footrests and/or legrests with the advice of a
healthcare professional. The original setup should not be changed without first checking with that advisor.
The footrest position is key to keeping your body in the proper alignment, and providing a stable support for
your legs and torso. Legrests and footrests should be swung out of the way, or removed for transfers.
Swing-in-Swing-out Hangers and Footrests (60°, 70º, 80°)

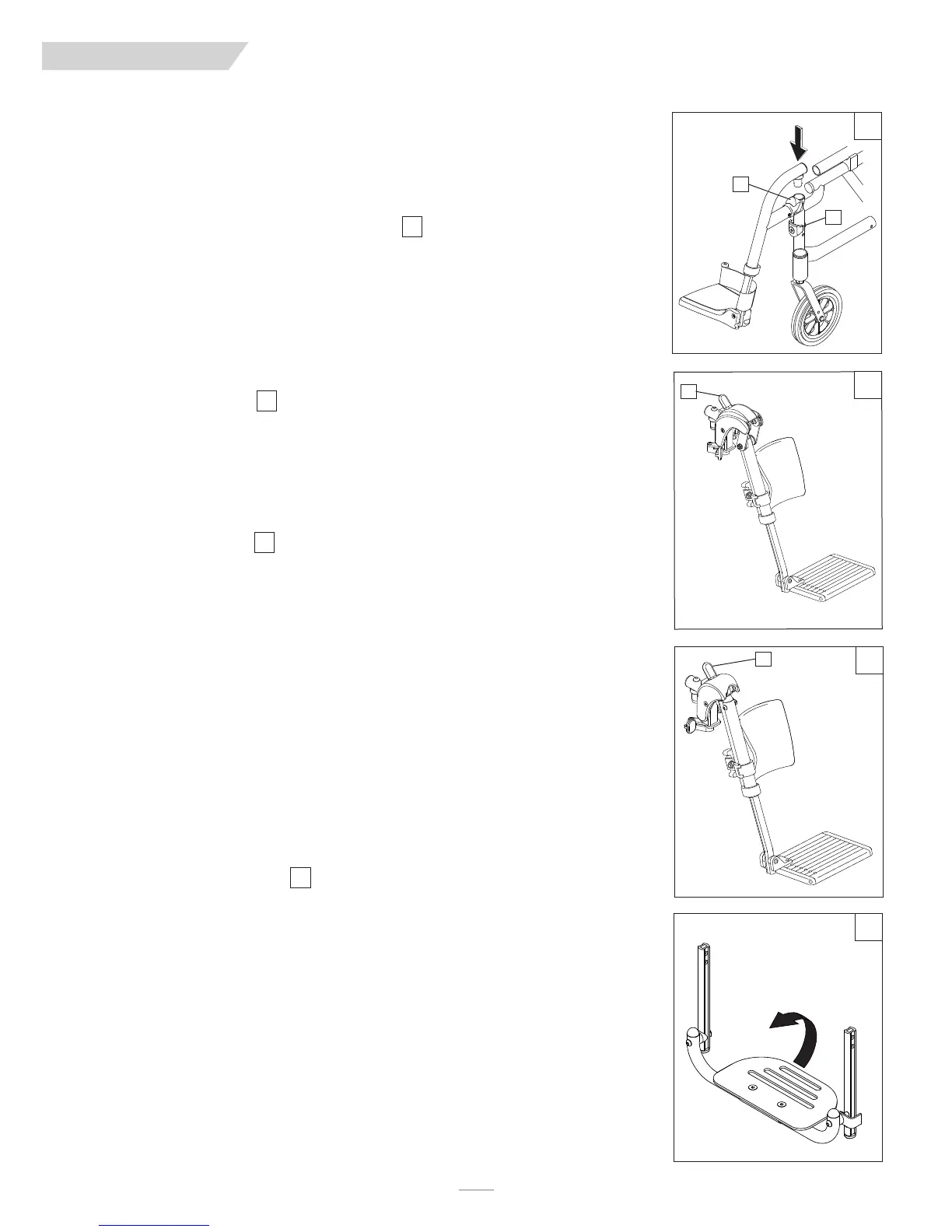

1. Basic Footrest Installation
a. Place swing-in/swing-out pivot saddle into the receiver (A) on front frame tube with the footrest
facing inward or outward from the frame.
b. Rotate the footrest inward until it locks into place on locking plate.
2. Removal
a. To remove footrest, release latch (B) by pulling lever upward or pushing lever downward.
b. Rotate footrest inward or outward and lift.
3. ALR Installation or Removal
To install or remove Articulating Legrest (ALR) see instructions for Swing-away Footrest installation.
4. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (C) down and lower Legrest to desired posi-
tion. Legrest will automatically lock in place.
5. ELR Installation or Removal
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest
installation.
6. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (D) down and lower legrest to desired posi-
tion. Legrest will automatically lock in place.
7. Flipping up the Platform Footplate
Flip-up the Footplate when transferring from your wheelchair.
