Quickie neon - Technical Data; Torque

16 NEON
EENNGGLLIISSHH
14.06.10 Neon Rev.3

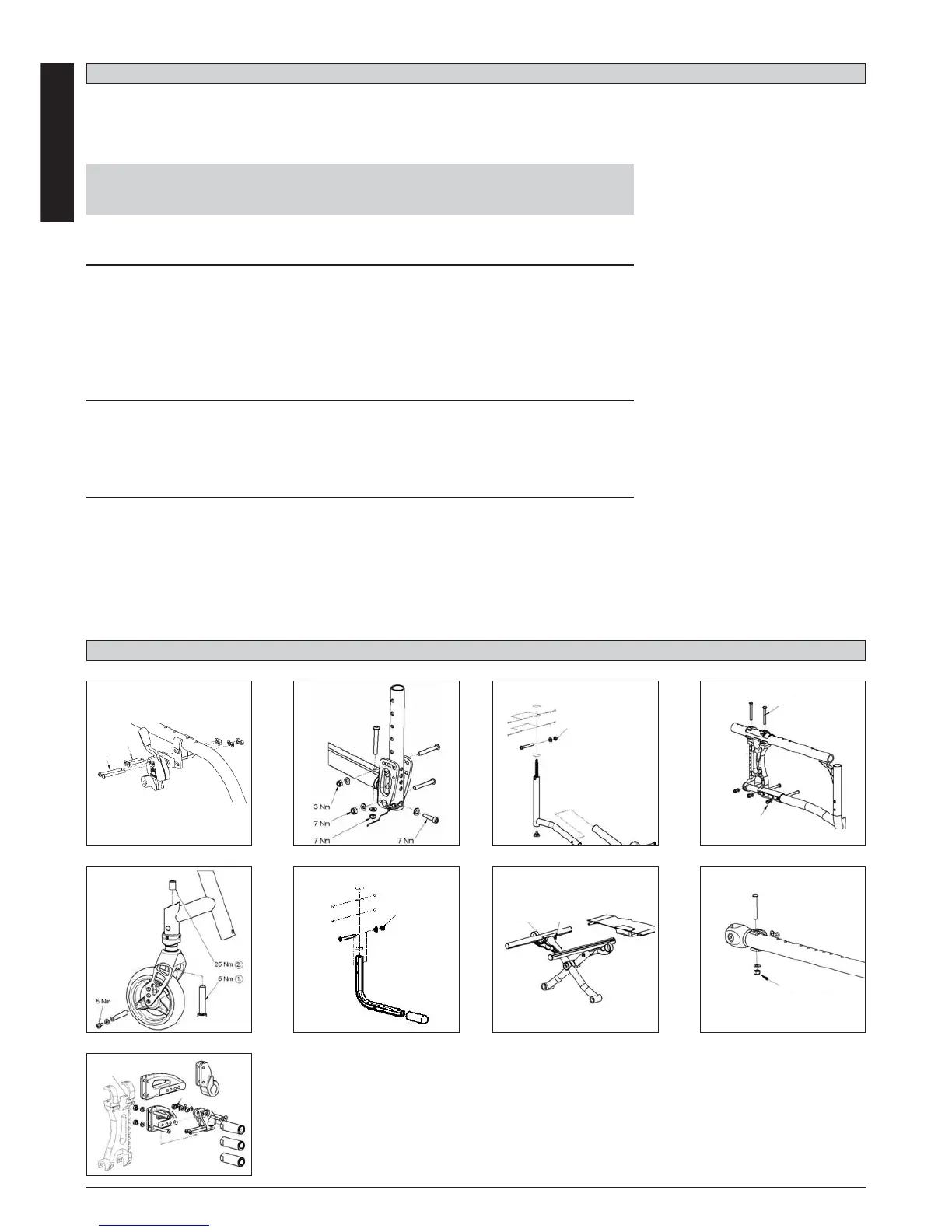

Torque
(12.1)
Torque (12.1)
The torque for the M6 screw is 7 Nm, unless
otherwise specified.
10 Nm
10 Nm
Technical Data
Seat widths: 30-50 cm in 2 cm steps
Seat depths: 30-50 cm in 2 cm steps
Seat heights:
Castors Fork Front seat Rear seat
height in cm height in cm
22’’ 24’’ 26’’
3’’ solid 72 mm 43 33-43 43-35 43-42
72 mm 44 33-44 44-35 44-42
72 mm 44 33-44 44-35 44-42
4’’ solid 118 mm 46 34-45 46-35 46-42
118 mm 47 35-45 47-35 47-42
118 mm 48 36-45 48-36 48-42
118 mm 49 38-45 49-37 49-42
118 mm 50 38-45 50-39 49-42
138 mm 48 36-45 48-36 48-42
138 mm 49 38-45 48-37 49-42
138 mm 50 38-45 48-39 49-42
138 mm 51 39-45 48-39 49-42
138 mm 52 40-45 48-40 49-42
5’’ solid 118 mm 49 33-45 48-37 49-42
118 mm 50 38-45 48-39 49-42
118 mm 51 39-45 48-39 49-42
138 mm 50 38-45 48-39 49-42
138 mm 51 39-45 48-39 49-42
138 mm 52 40-45 48-40 49-42
138 mm 53 41-45 48-41 49-42
6’’ soft 118 mm 51 39-45 48-39 49-42
118 mm 52 40-45 48-40 49-42
138 mm 51 39-45 48-39 49-42
138 mm 52 40-45 48-40 49-42
138 mm 53 41-45 48-41 49-42
138 mm 54 42-45 48-42 49-42
Overall length:
107 cm with seat depth of
50 cm
Overall height:
97 cm with back height of
45 cm
Weight in kg:
from 9.9 kg
Maximum load:
If the seat width is 42 cm,
then 115 kg, above this it
is 140 kg
1,5 Nm
1,5 Nm
7 Nm
10 Nm
7 Nm 7 Nm
10 Nm
10 Nm
10 Nm
