Quickie neon - Page 7

NEON 7
EENNGGLLIISSHH
14.06.10 Neon Rev.3

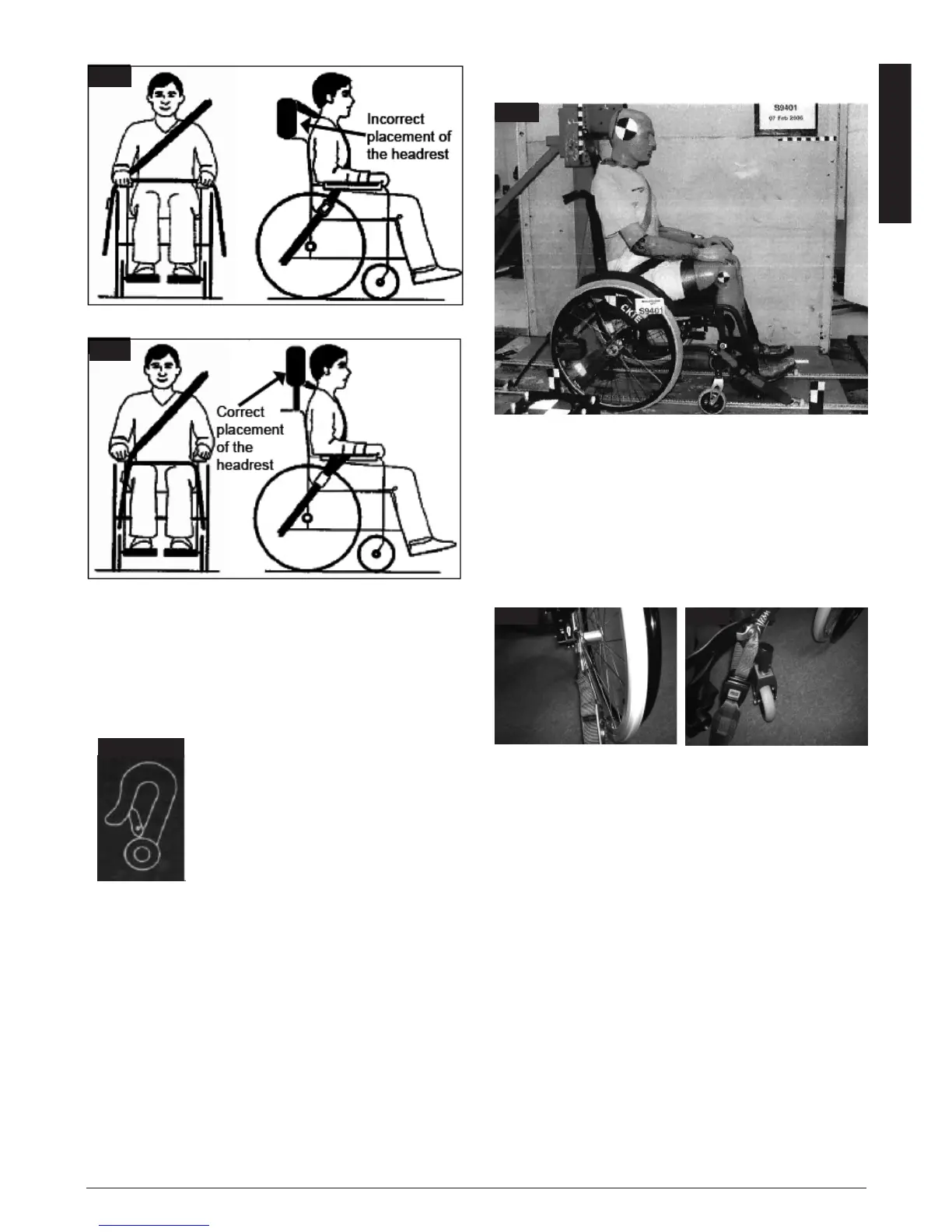

Transportability – positioning of wheelchair tie down
restraints on wheelchair
The wheelchair secured with front and rear wheelchair tie down
restraints (Fig. g).
Positioning of the restraint straps is shown in more detail below:
Position of the front wheelchair tie down restraint and the tie down
label (Fig h).
Position of the rear wheelchair tie down restraint and the tie down
label on the wheelchair (Fig.i).
Fig. 24
Fig. h Fig. i
3. The attachment points to the chair are the inner front side frame
just above the castor, and the rear side frame. The straps are fit-
ted around the side frames at the intersection of the horizontal
and vertical frame tubes.
4. The tie down symbol (Fig f) on the wheelchair frame indicates
the position of the wheelchair restraint straps. The straps are
then tensioned after the front straps have been fitted to secure
the wheelchair.
Fig. d
Fig. g
Fig. f
Fig. e
