Quickie Pulse User Manual

103688 Rev. A
14
QUICKIE PULSE
4
A
B
5
C
6
D
VIII.

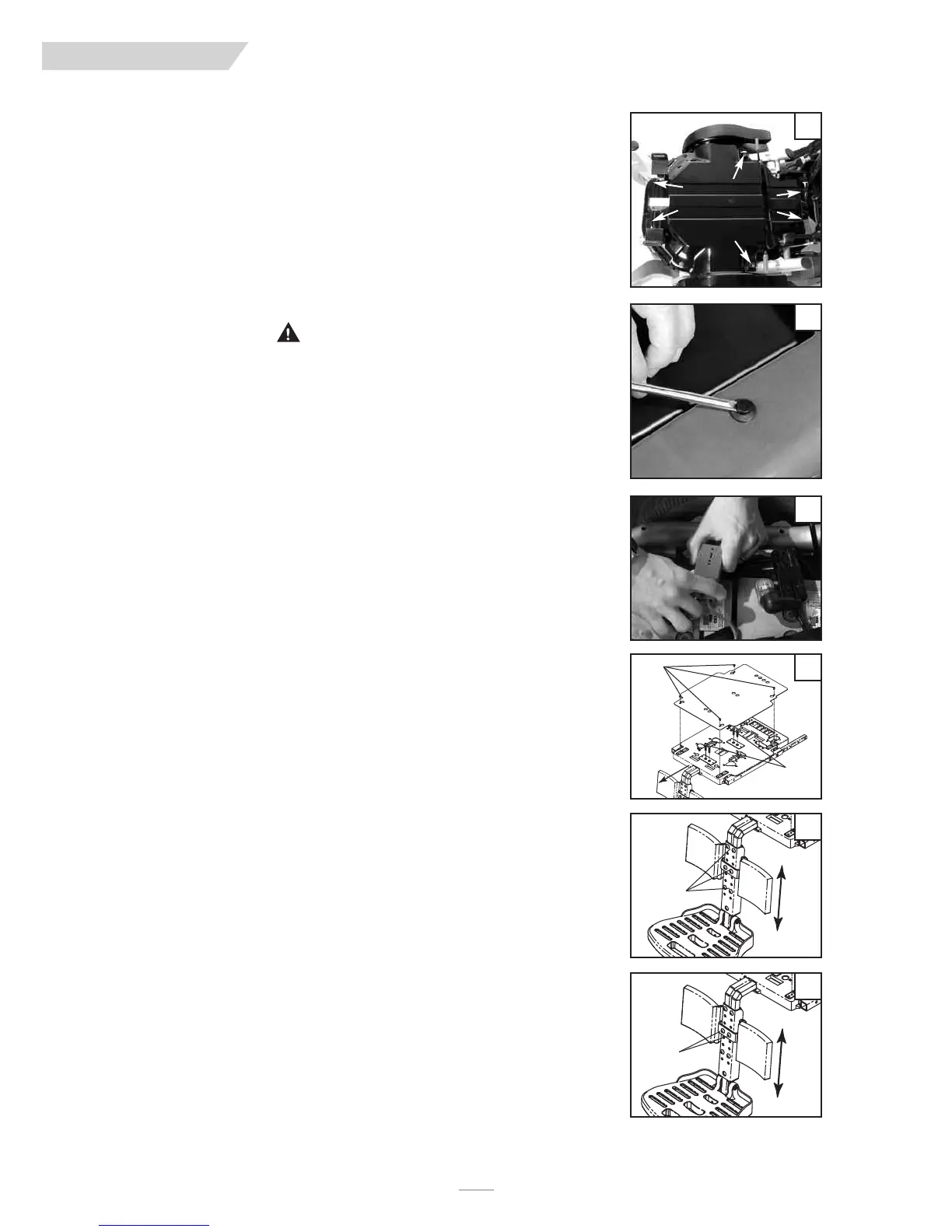

A. BATTERY REMOVAL
(Figures 1, 2, 3)
To remove the batteries for transporting or servicing:
1. Remove Batteries
a. Carefully remove seat (see Section I. Seat Removal).
b. Remove the shroud by first removing the six fasteners (Fig. 1) using a flat head screw-
driver as shown (Fig. 2). Then lift up on the shroud.
c
. Unplug and remove batteries from the chair (Fig. 3).
d. Lift batteries out of the frame.
2
. Battery Installation
S
ee Section X. Batteries, D for installation.
WARNING
Batteries may weigh up to 39 lbs. Care must be taken to avoid injury when
lifting up on battery straps.
B. CENTER MOUNT HANGER ADJUSTMENT
1. Removal (Fig. 4)
a. Remove the seat pan by removing the four attachment bolts (A).
b. Remove the four bolts (B) and slide the footrest out.
2. Height Adjustment (Fig. 5)
a. Remove the six securing bolts (C).
b. Move footplate to desired height.
c. Re-install bolts (C) through desired holes.
3. Calf Pad Adjustment (Fig. 6)
a. Remove the two securing bolts (D).
b. Move calf pads to desired height.
c. Re-install bolts (D) through desired holes.
2
3
1

Quickie Pulse Specifications

General

Type	Power Wheelchair
Maximum Speed	4.5 mph
Weight Capacity	300 lbs
Footrest Style	Swing-Away
Backrest Height	16 inches
Seat Width	16, 18, 20 inches
