103688 Rev. A
16
QUICKIE PULSE
VIII.
10

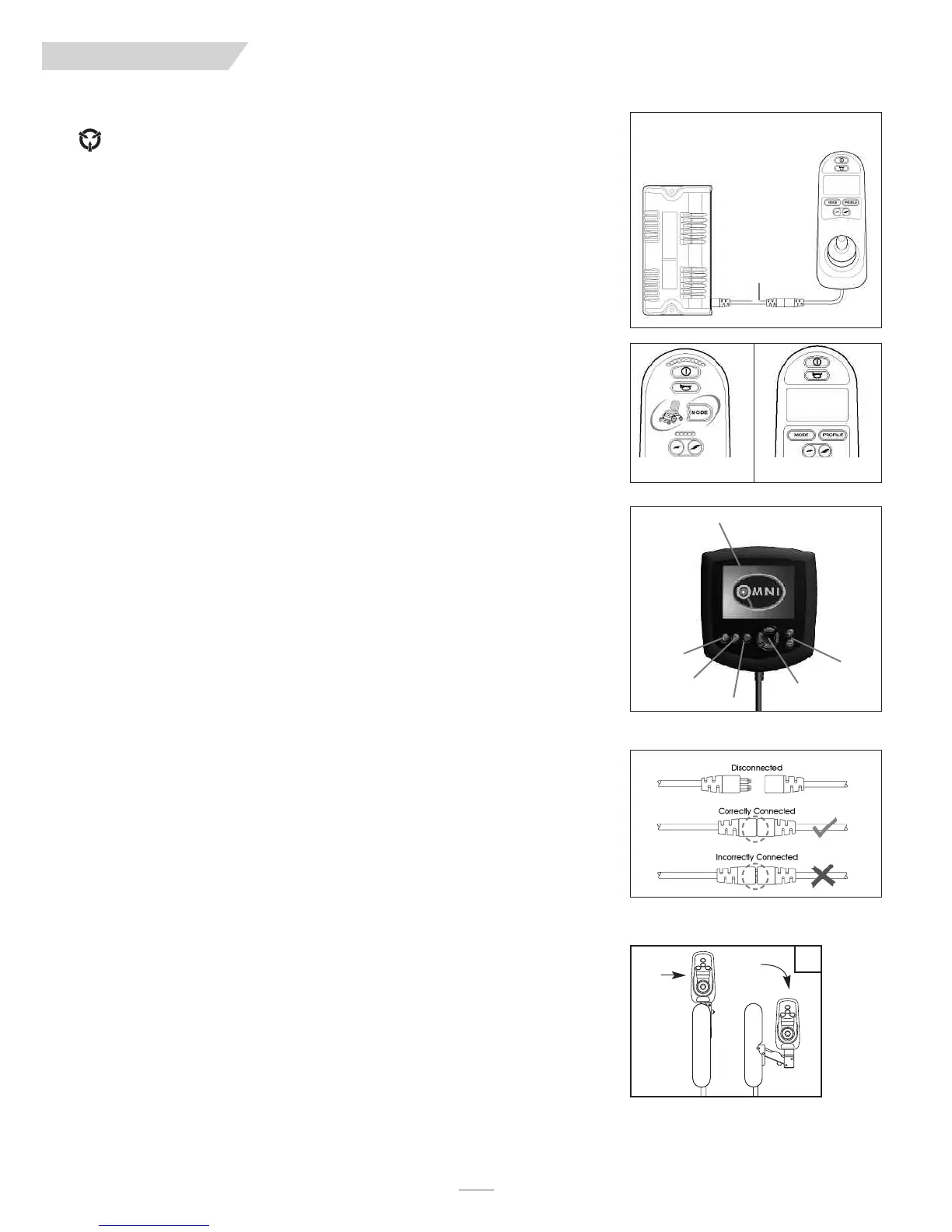

E. JOYSTICK
Controls:
• LED Joystick and color display joystick
Omni Input/Display
The Omni is a universal specialty controls interface that accepts signals from many different
types of SIDs and translates them into commands compatible with the PG Drives Technology
RNET control system.
Mating Connectors
To connect the communication cables:
Holding the connector housing, firmly push the connector into its mate until you can
no longer see the yellow plastic. The connectors are secured using a friction system.
To disconnect the communication cables:
Holding the connector housing firmly, pull the connectors apart.
NOTE– Do not hold or pull on the cable. Always grip the connector when connecting and disconnecting.
When the control system is first switched on after a connection, or system component
change, the timer will be displayed while the system checks itself. Then the re-start icon will
be displayed. Switch the control system off and on again to operate,
F. JOYSTICK RETRACTABLE MOUNT (Optional) (Fig. 10)
The joystick or Enhanced Display is mounted with a mechanism which allows the control to
be locked in a forward or retracted position using magnets.
Adjustment
a. To retract the joystick, push outward on the inside of joystick.
b. Push the joystick away from front of armrest until it locks into retracted position.
c. To return to forward position, push the joystick forward until it locks into place.
G. ASAP SEATING ADJUSTMENT
Please refer to the ASAP Seating Adjustment Guide for details on how to adjust the seat
depth, seat width, armrest height, and backrest angle.
power
module
LCD screen
Profile
+/-
Navigation
Mode
On/Off
LED Joystick Color Joystick
joystick
communication
cable
Omni Display
