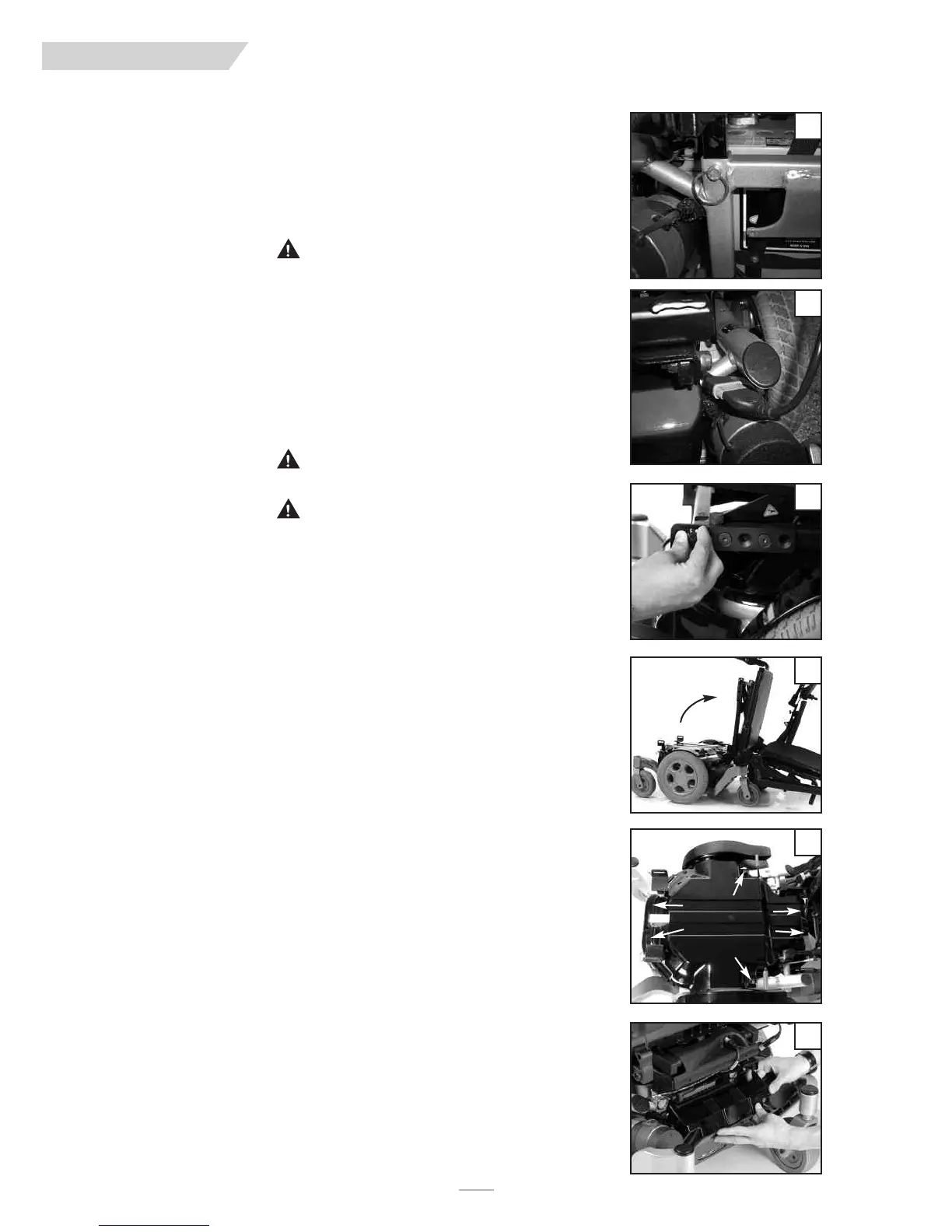

H. SEAT HEIGHT ADJUSTMENT
(Figure 11)
1. Remove seat (See Section I. Seat Removal).
2. Remove pins from all four seat mount posts.
3. Select the desired seat height (rear seat mount should never be more than
one position lower than the front).
4. Reinsert the pins.
WARNING
Ensure both front seat posts are positioned to the same height. Rear seat posts
should also be set to the same height.
I. SEAT REMOVAL
Remove Seat
a. Disconnect the joystick power cable in the rear of the chair. (Fig. 12)
b. Remove the two thumbscrews that attach the seat to the front seat posts. (Fig. 13)
c. Tilt the seat back to allow access to the battery compartment (Fig. 14).
WARNING
When replacing the seat into the mounts, ensure you do not pinch your fingers.
WARNING
Always replace the safety lock-out pin to prevent inadvertent release of the seat.
J. SHROUD REMOVAL (Figure 15 & 16)
The plastic protective shroud can be removed for adjustment or servicing.
1. Remove Top Shroud
a. Remove the seat (see Section I. Seat Removal).
b. Remove the six fasteners (Fig. 15).
c. Remove shroud by lifting up.
2. Remove Rear Shroud
a. Remove two rear shroud fasteners.
b. Pull downward at the top of the rear shroud (Fig. 16) then lift up.
3. Replace Shroud
Replace shroud by reversing above instructions.
K. CHECK-OUT
Once the wheelchair is assembled and adjusted, it should roll smoothly and easily. All acces-
sories should also perform smoothly.
After the wheelchair has been set up be sure the chair performs to your specified operational
settings (see Operating Guide). If the chair does not perform to specifications, turn the
wheelchair OFF immediately and contact your authorized supplier to reprogram operational
specifications using the RNET Operating Guide.
Repeat this procedure until the wheelchair performs to specifications before
attempting active use of the wheelchair.
If you have any problems, follow these procedures:
1. Review the Set-up, Adjustment & Use section and Operating Guide to make sure chair
was properly prepared.
2. If your problem persists, contact your authorized supplier. If you still have a problem
after contacting your authorized supplier, contact Sunrise customer service. See the
introduction page for details on how to contact your authorized supplier or Sunrise
customer service.
