103688 Rev. A
15
QUICKIE PULSE
C. SWING-AWAY FOOTRESTS

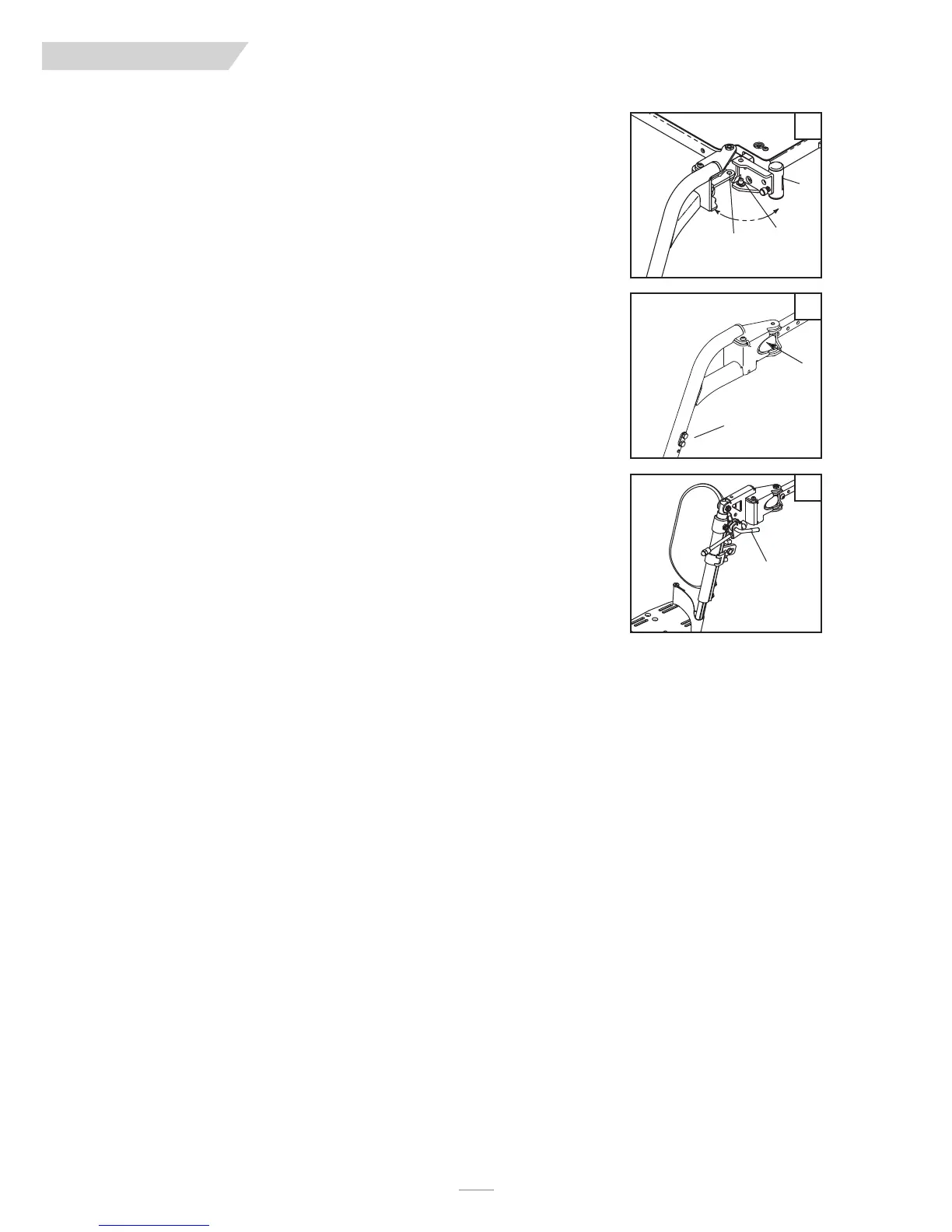

1. Installation (Fig. 7)
a. Place swing-away pivot pin (E) into the locating hole (F) on top of the hanger mount
with the footrest facing outward from frame.
b. Rotate the footrest inward until latch plate locks (G) into place on locking bolt.
2. Removal (Fig. 8)
a. To remove footrest, press quick-release lever (H).
b. Rotate footrest outward and lift.
3. Height Adjustment (Fig. 8)
a. Remove both bolts (I) in the hanger frame tube.
b
. Reposition footrest height.
c. Re-tighten all bolts (I).
D. ELEVATING LEGREST (Optional)
1. Installation
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest installa-
tion.
2. Adjustment (Fig. 9)
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, first lift slightly then press release lever (J)
down and lower legrest to desired position.
VIII.
I
E
F
G
H
J
7
8
9
