Quickie R-net User Manual

The electrical adjustment options 29R-net
MODE
AB
C
12
13
1 2 3 5
1 2 3 4a
4b
Adjustment
Move joystick backwards /
Pushing the push handles down
Tilt The entire chair will tilt backwards
High/low The entire chair will be raised
Backrest The backrest will tilt backwards
Legrest The legrest angle will increase, the
footplate will be raised
Adjustment
Move joystick forwards /
Lifting the push handles up
Tilt The entire chair will tilt forwards
High/low The entire chair will be lowered
Backrest The backrest will tilt forwards
Legrest The legrest angle will decrease,
the footplate will be lowered
6. Press on the ‘mode’ button to return to the
‘drive’ mode.

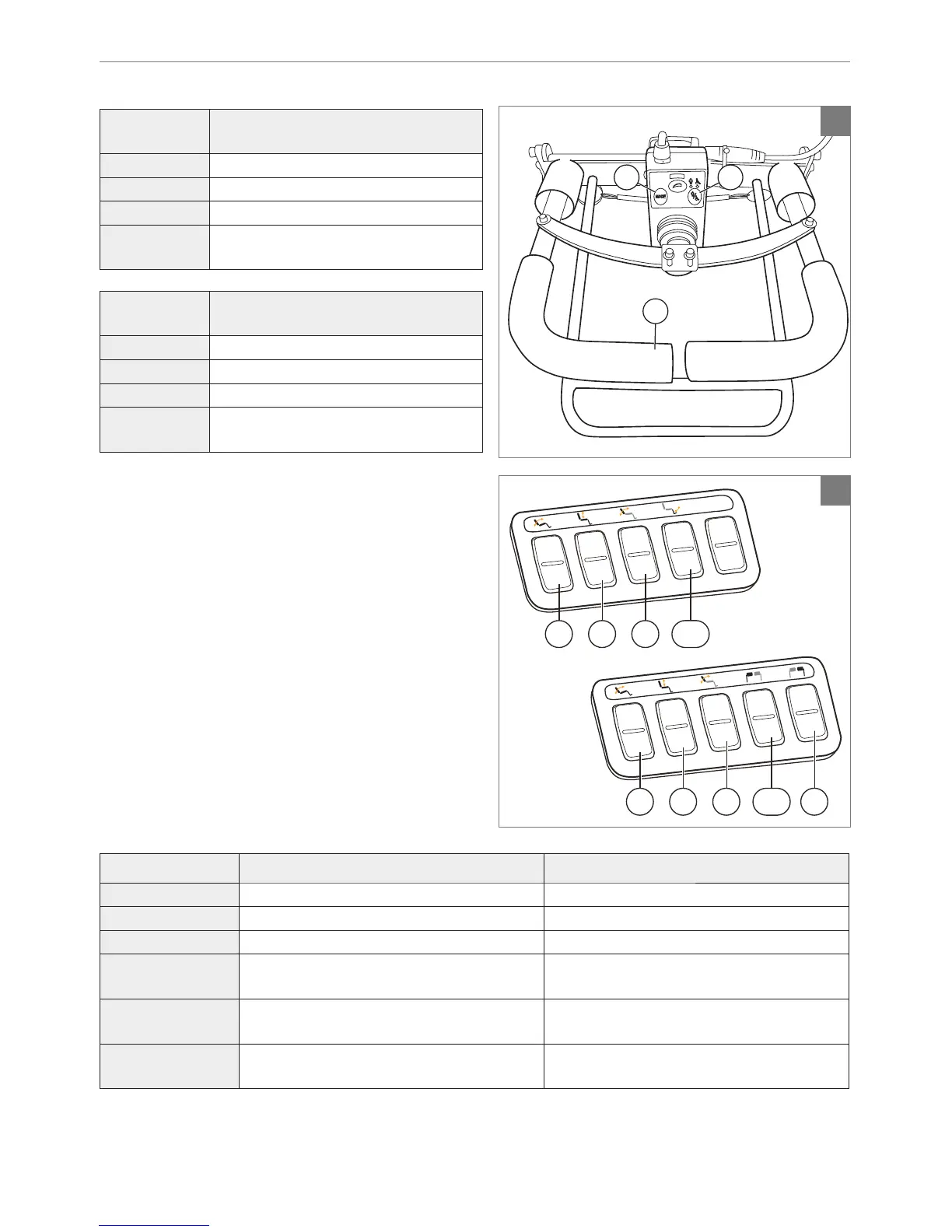

4.2 The Direct access
With the Direct access option the electrical
adjustments can be operated directly, without
VFUROOLQJWKURXJKDPHQX¿JXUH
7. 6ZLWFKRQWKHFRQWUROOHU$LQ¿JXUH
8. 7KHXSSHUEXWWRQVZLOORSHUDWHWKHVSHFL¿F
adjustment up / forwards. The lower
buttons will operate the adjustment down
EDFNZDUGVVHHWDEOHEHORZ3XVKWKH
button on the Direct access key pad to
operate the electrical adjustment option until
the desired adjustment position has been
attained.
Adjustment Upper buttons Lower buttons
1 Tilt The entire chair will tilt forwards The entire chair will tilt backwards
2 High/low The entire chair will be raised The entire chair will be lowered
3 Backrest The backrest will tilt forwards The backrest will tilt backwards
4a Central
legrest
The central legrest angle will increase,
the footplate will be raised
The central legrest angle will decrease,
the footplate will be lowered
4b Left legrest The left legrest angle will increase, the
footplate will be raised
The left legrest angle will decrease, the
footplate will be lowered
5 Right legrest The right legrest angle will increase,
the footplate will be raised
The right legrest angle will decrease,
the footplate will be lowered
