11.0 Batteries and charging
WARNING!
Please read the owner’s manual supplied with the charger
carefully.
WARNING!
Do not expose any part of the battery to direct heat (i.e.
naked flame, gas fire).
WARNING!
When charging always place your charger on a hard
surface in a room with good ventilation.
WARNING!
You should not charge your batteries in outdoor
conditions.
11.1 Batteries Salsa R2 (Fig. 11.1 - 11.5)
The batteries are contained within the drive unit located
under the battery shroud.
To remove the batteries (in case of changing or
maintenance) please use the following procedure:
• Remove the rear cover (Fig. 11.1).
• Lift the controler plate up (Fig. 11.2).
• Fold the battery support plate down (Fig. 11.3).
• Disconnet the power connector from the control box,
(Fig11.4).
• Pull the battery out and disconnect the the Grey
connector, (Fig.11.5).
• Pull the second battery out and disconnect the Grey
connector.
To fit the batteries reverse the above procedure.

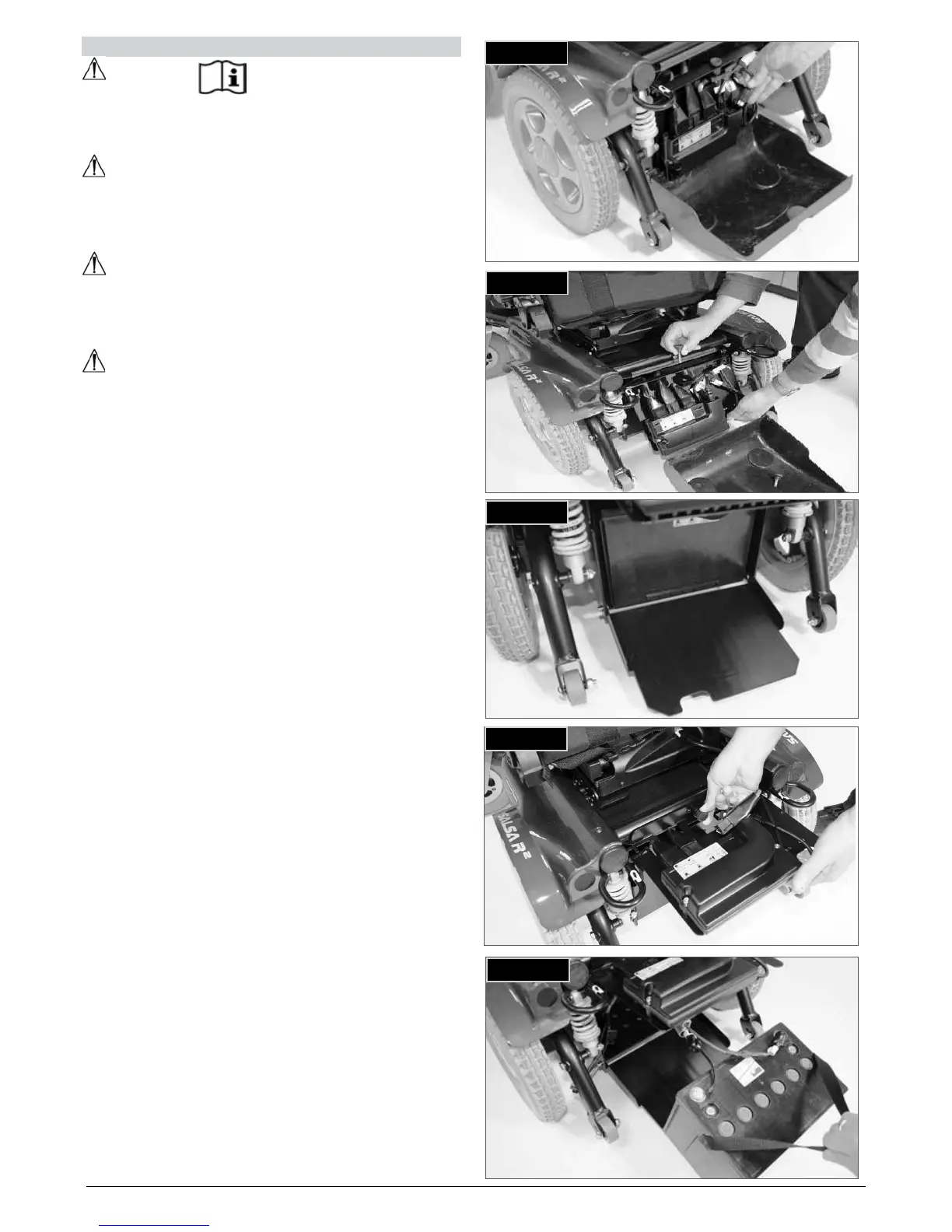

Fig.11.4
Fig.11.1
Fig.11.3
Fig.11.2
Fig.11.5
