82 SALSAR

/ SALSA M

Rev.1.0

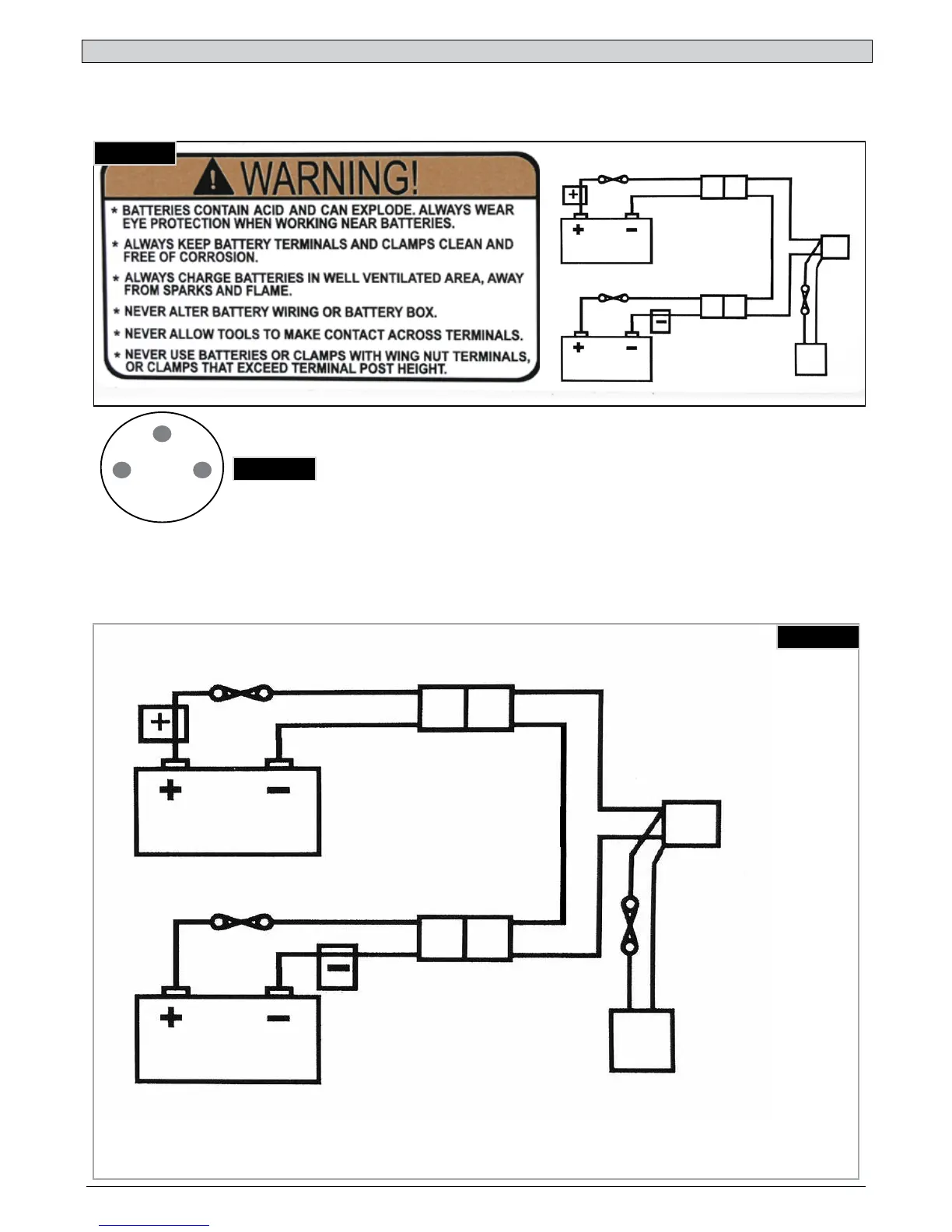

17.0 SALSA - Salsa M2 Battery Wiring Diagram

Charger Socket:

Pin 1: Battery Positive

Pin 2: Battery Negative

Pin 3: Inhibit

1 2

100A

BLACK BLACK

RED

YELLOW

BATTERY CONNECTOR

Fig.16.1

Fig.16.2

Fig.16.3

AUXILIARY POWER CONNECTOR

CONTROLLER CONNECTOR

15A
