Salsa M
2
Parts in the battery box, (Fig.13.22):
• Plastic battery box cover for 2 x 12V batteries.
• 2 x battery looms with fuse and ring terminals.
• Battery link harness with red and grey connectors.

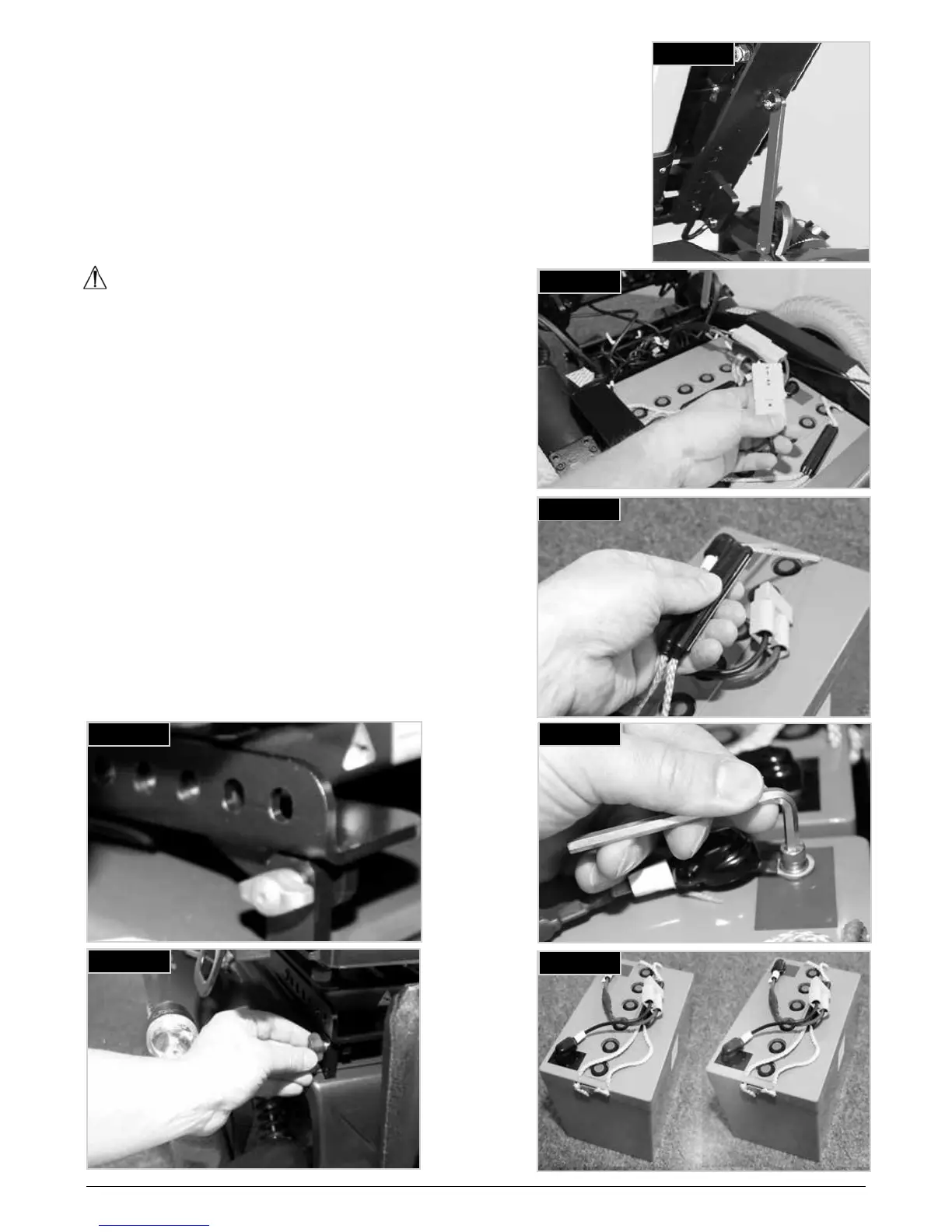

Accessing the Batteries
• Locate & loosen the 2 hand wheels at the front of the power
base, (Fig.13.23).
• Carefully tilt the seat back, (Fig.13.25).
• Support the seat with the seat stay, (Fig.13.25).
• Ensure the seat stay bar is secure.
CAUTION!
• Depending on options, the seat may be heavy to lift.It is
recommended that two people carry out this action.
• Avoid pivoting the seat more than 60°rewards.
• The Battery Cover is secured by hook and eye pads lo-
cated on the body shroud. Use gentle but rm hand pres-
sure to lift the battery cover off.
• Lift the Battery Cover clear.
• Disconnect the GREY plug on the front battery.
• Lift the front battery out using the lifting straps provided.
• Disconnect the GREY plug on the rear battery, (Fig.13.26).
• Lift the rear battery out using the lifting straps provided,
(Fig.13.27).
• Peel back the insulative cover and use a 5.0 mm Allan key
to undo & remove the terminal bolt. Repeat for the other
terminal/battery, (Fig.13.28).
• On retting, the battery terminals must be covered af-
ter connection with the caps provided on the cable,
(Fig.13.29).
Fig.13.23
Fig.13.24
Fig.13.25
Fig.13.26
Fig.13.27
Fig.13.28
Fig.13.29
