Quickie Salsa M2 User Manual

78 SALSAR
2
/ SALSA M
2
Rev.1.0
Model: Quickie Salsa R
2
(Heavy Duty)
Maximum occupant
mass with Re-hab seat
(test dummy mass):
160 kg
The wheelchair Quickie
Salsa conforms to the
following standards:
a) requirements and
test methods for static,
impact and fatigue
strengths
(ISO 7176-8)
b) power and
control systems for
electric wheelchairs
requirements and test
methods (ISO 7176-14)
c) climatic test in
accordance with ISO
7176 -9
d) requirements for
resistance to ignition in
accordance with
ISO 7176-16
e) the product is
specified as a Class B
power chair

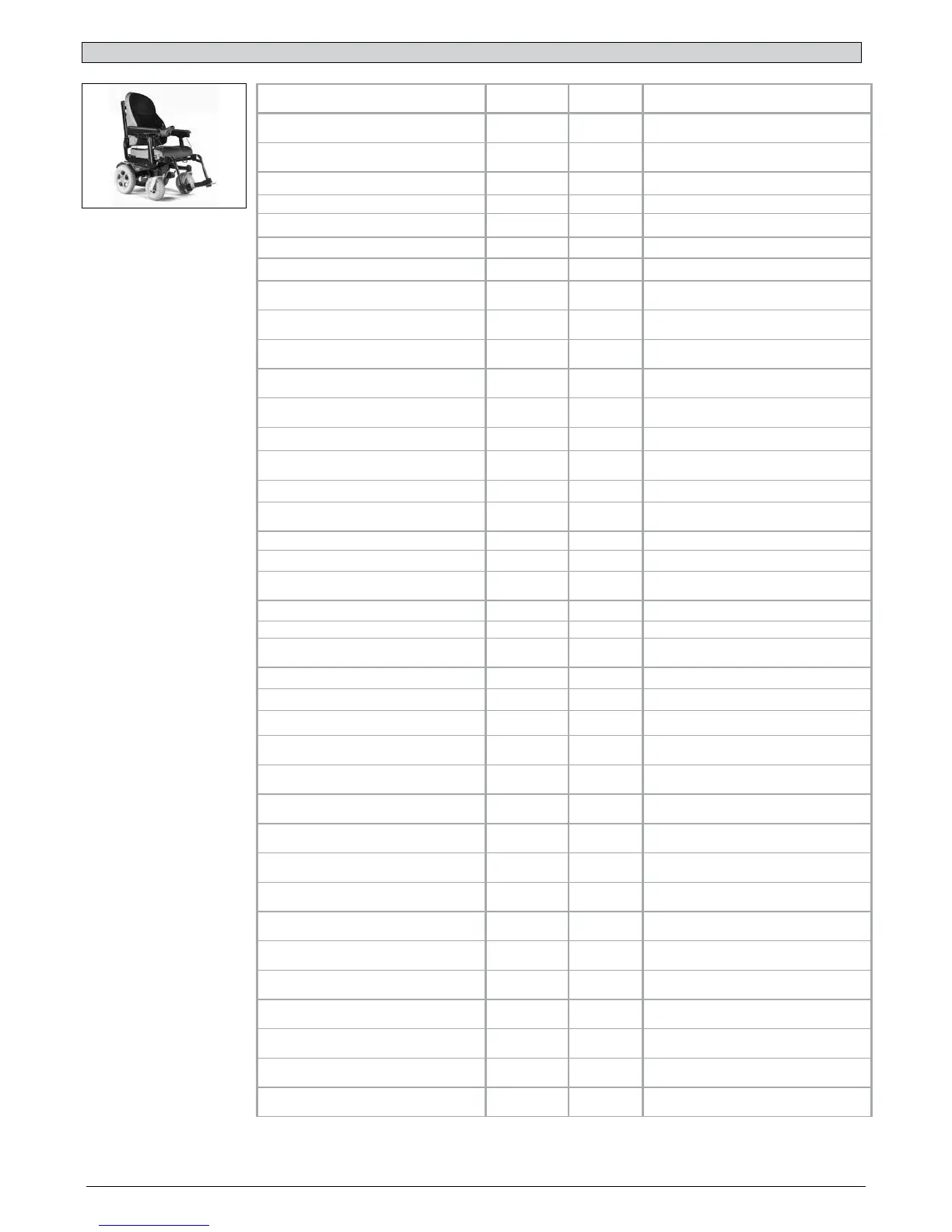

ISO7176-15 Min. Max. Comments
Overall length (with legrest) 1100 mm 1140 mm 70° hanger
Overall width 580 mm 610 mm 12” / 14” wheels
Folded length
“ “ Not folding
Folded width
“ “ Not folding
Folded Height
“ “ Not folding
Total mass (w. batteries) 120 kg 168 kg without Balle/with Balle lift & tilt
Mass of the heaviest part - 18.5 kg Heaviest removable part
Static stability downhill - > 20°
0° tilt/0° recline/40 cm deep & 50 cm
seat height
Static stability uphill - 10.6° 9° tilt/16° recline& 45 cm seat height
Static stability sideways - 15.2°
0° tilt/0° recline/40 cm deep & 50 cm
seat height
Energy consumption (max. range) - 32
6 kph motor and 100 kg user
(ISO7176-4)
Dynamic stability uphill - 8 °
9° tilt/16° recline &max. seat height
(not with balle)
Obstacle climbing (with kerb climber) 85 mm 100 mm
Max. speed forward 6 kph 10 kph
6 kph motor & 12.5” wheels/ 10 kph
motor & 14” wheels
Min. brake distance from max. speed - - Dep. programming
Seat plane angle -5° 30°
-5° only with MBL tilt + additional
brackets
Effective seat depth 400 mm 560 mm
Effective seat width 400 mm 560 mm
Seat surface height at front edge 375 mm 490 mm 12” wheels / 385 mm 14” wheels
Backrest angle -5° 12° mechanical
Backrest height 560 mm 700 mm
Footrest to seat distance 340 mm 540 mm
Leg to seat surface angle 110° -
Armrest to seat distance 210 mm 300 mm
Front location of armrest structure 260 mm 560 mm
Horizontal location of axle
mm mm
Min. turning radius 850 mm 910 mm 70° hanger
Nominal battery voltage 24V -
Battery cut-off voltage 16V -
Battery fusible links - - 100A in line fuse on each battery
Quickie Direct Actuator Control Box
fusible link
- - 15A AST Mini Blade
Mass of the test dummy - 160 kg
EN 12184 Min. Max. Comments
Max. kerb height 85 mm 100 mm with kerb climber
Ground clearance 70 mm 80 mm 12” / 14”
Turning space 1200 mm -
Speed control operation force - 2N
Direction control operation force - 1N
