Quickie Salsa R2 User Manual

SALSA R
2
/ SALSA M
2
21
Rev.1.0

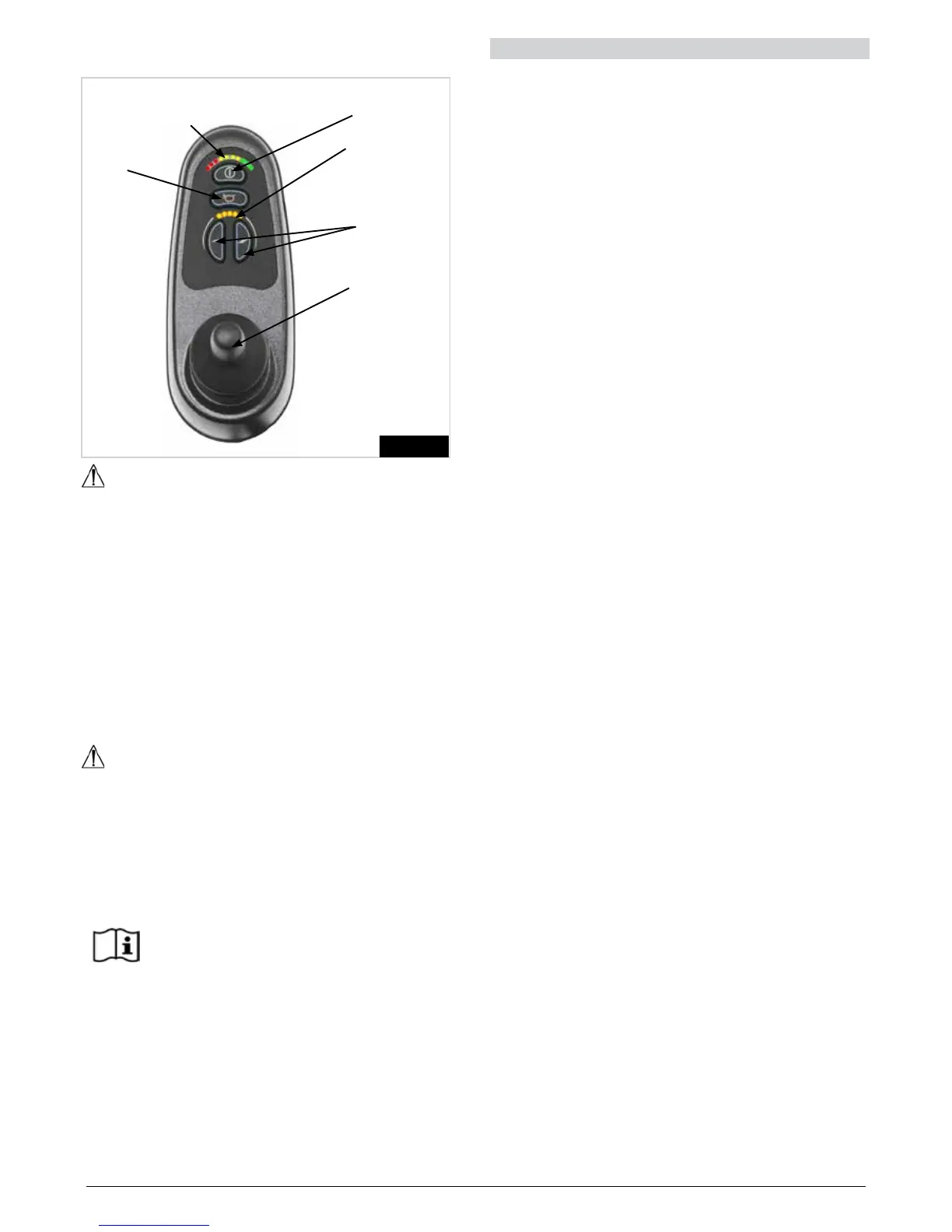

4.32 VR2 Controller (Fig. 4.21)
WARNING!
• Avoid knocking your control system and especially the
joystick.
• Be careful not to strike obstacles with the control
system or joystick when you drive.
• Never drop the control system.
• When transporting your wheelchair, make sure that the
control system is well protected.
• Avoid damage to cables.
• To improve the reliability of the control system keep
exposure to extreme conditions to a minimum.
• Do not expose your control system or its components
to damp for prolonged periods.
• If your control system becomes contaminated with
food or drink clean it off as soon as possible.
DANGER!
• In the event of the wheelchair moving in an unexpected
way RELEASE THE JOYSTICK. This action will stop
the wheelchair under any circumstances
• Do not operate the control system if the wheelchair
behaves erratically or shows abnormal signs of
heating, sparks or smoke. Turn the control system off
at once and consult your Sunrise approved dealer.
R-net Control
Please refer to your R-net Owner’s Manual for
details.
Battery Level Indicator
On/Off Button
Horn
Speed
Indicator
Speed
Buttons
Joystick
Fig. 4.21
5.0 Preparing your wheelchair for use
5.1 Handling the wheelchair
NOTE: To dismantle the chair for transport or storage no
tools are required.
List of components when dismantled (components
below are related to the maximum detachable parts and
dependent on the type of seating system chosen):
1 pair of armrests
1 pair of legrests, (Standard Seat), or single centre mount
leg rest with flip-up footplate, (Rehab Seat).
1 backrest, (Standard, Jay/ Jay Comfort)
1 drive unit with seat frame
5.2 Preparation for transportation or storage
Standard Seat.
First remove the swing-away legrests. Leave the armrests
in the fold down position. (Fig.5.1). Disconnect the Hand
Control, (Fig.5.2), if necessary. To remove the control pod
you have to access the motor controller through the plastic
cover between the castor wheels and remove the square
remote control connector.
Place the control pod & arm in a safe place until required.
To reconnect the hand control just use the process in
reverse. Release and lift off the backrest at the frame,
(Fig.5.3). Now you can store the chassis part.
Rehab Seat
First remove the leg rests if swing away leg rests are
attached. In the case of a centre mount leg rest, just
flip up the footboard. Lift off the armrests (Fig. 5.5),
disconnect the hand control if necessary, (Fig.5.7-5.8).
Release the retainer pin and fold down the backrest at the
frame (Fig. 5.6R). Now you can store the chassis part. By
releasing the freewheel mechanism (Fig. 5.5 RWD-FWD
and Fig. 5.6 MWD) on the left and right side of the chassis
you can move the drive unit as close as possible to the
place you want to store it.
You can also drive the base with the joystick up or down a
ramp into and out of a car for transportation.
By releasing the freewheel mechanism on the left and right
side of the chassis you can move the drive unit as close as
possible to the place you want to store it.
You can also drive the base with the joystick up or down a
ramp into and out of a car for transportation.
NOTE: See overleaf for figures
