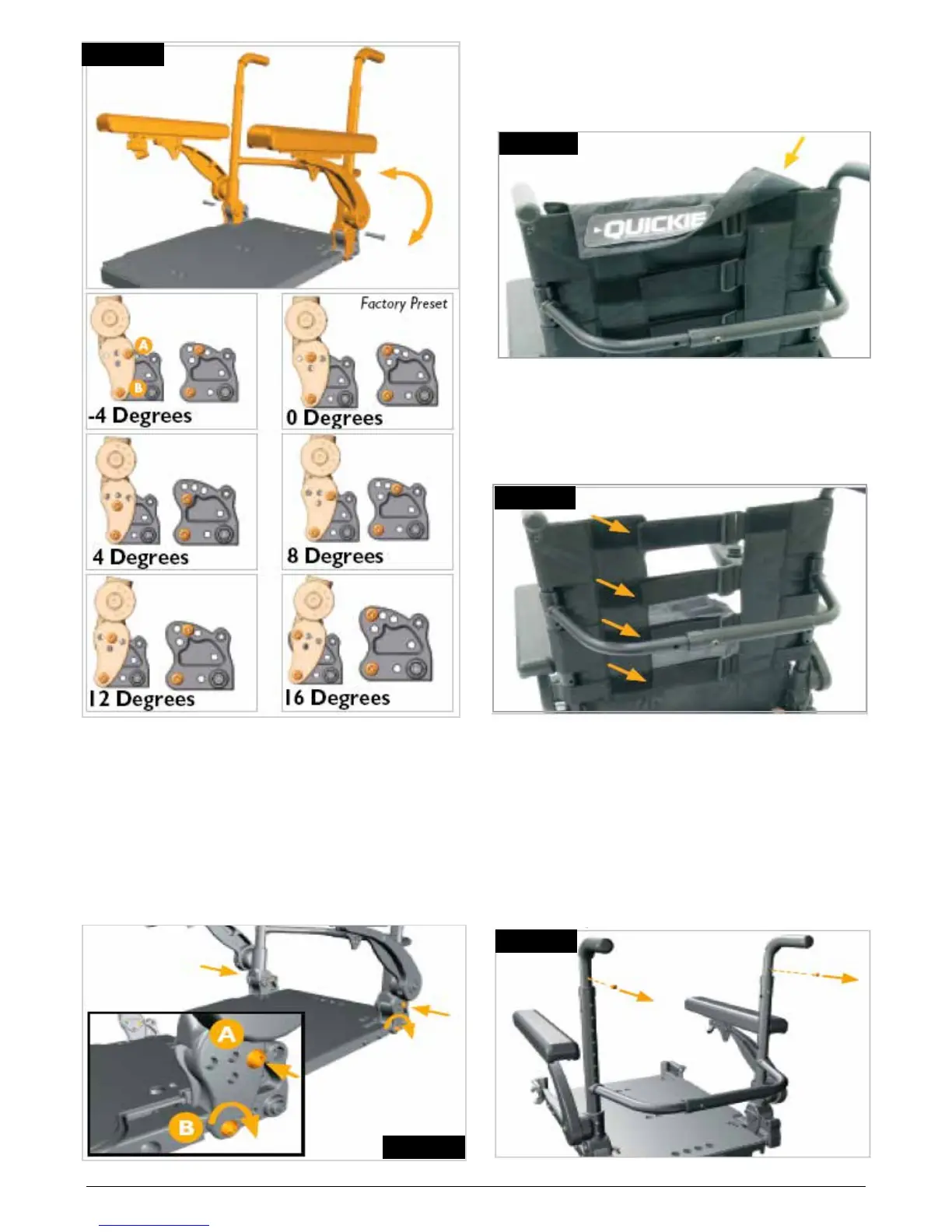

3. Reinsert and tighten both backrest bracket index bolts
and bracket bolts (A & B). Use 20 N/m or 177 in/lb of
torque, (Fig.6.16).
NOTE: The figures below represent the 8°angle.
6.12 Back Height Adjustment
1. Begin by removing the upholstery cover, (Fig.6.17).
Fig. 6.16
Fig. 6.15
Fig. 6.19
3. Remove the top upholstery screws. The upholstery can
now be moved and vertically compressed to provide
access to the hidden Phillips-head bolts, (Fig.6.19).
2. Loosen the upholstery straps. It is not necessary to
remove the upholstery, (Fig.6.18).
Fig. 6.17
Fig. 6.18
