11.2 Batteries Salsa M2 (Fig. 11.6 - 11.12)
The batteries are contained within the drive unit located
under the battery shroud.
To remove the batteries:
• Release the two handle screws under the front of the
seat frame that connect the seat frame with the seat
module interface.
• Flip the seat frame backwards and secure it with the
safety bar, (Fig.11.8).
• Lift off the battery lid.
• Disconnect the 2 pin Anderson connectors from each
battery.
• There are straps available on each battery where they
can be lifted out with the front battery being removed
first.
• To fit the batteries please proceed in the opposite way.
WARNING!
Ensure that the 2 handle screws securing the seat to the
base are in place and screwed fully in, (Fig.11.6-11.7).

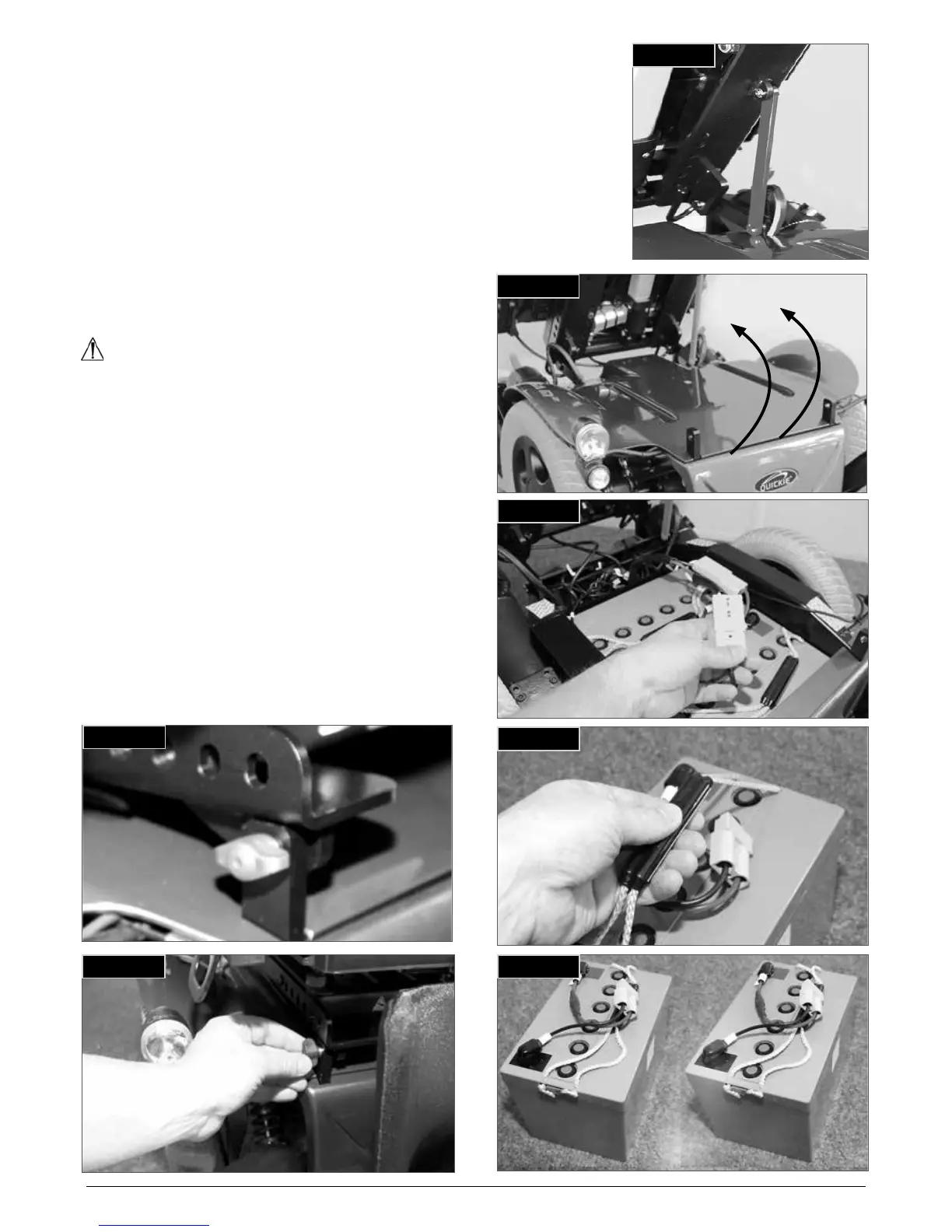

Fig.11.8
Fig.11.10
Fig.11.11
Fig.11.12
Fig.11.6
Fig.11.7
Fig.11.9
