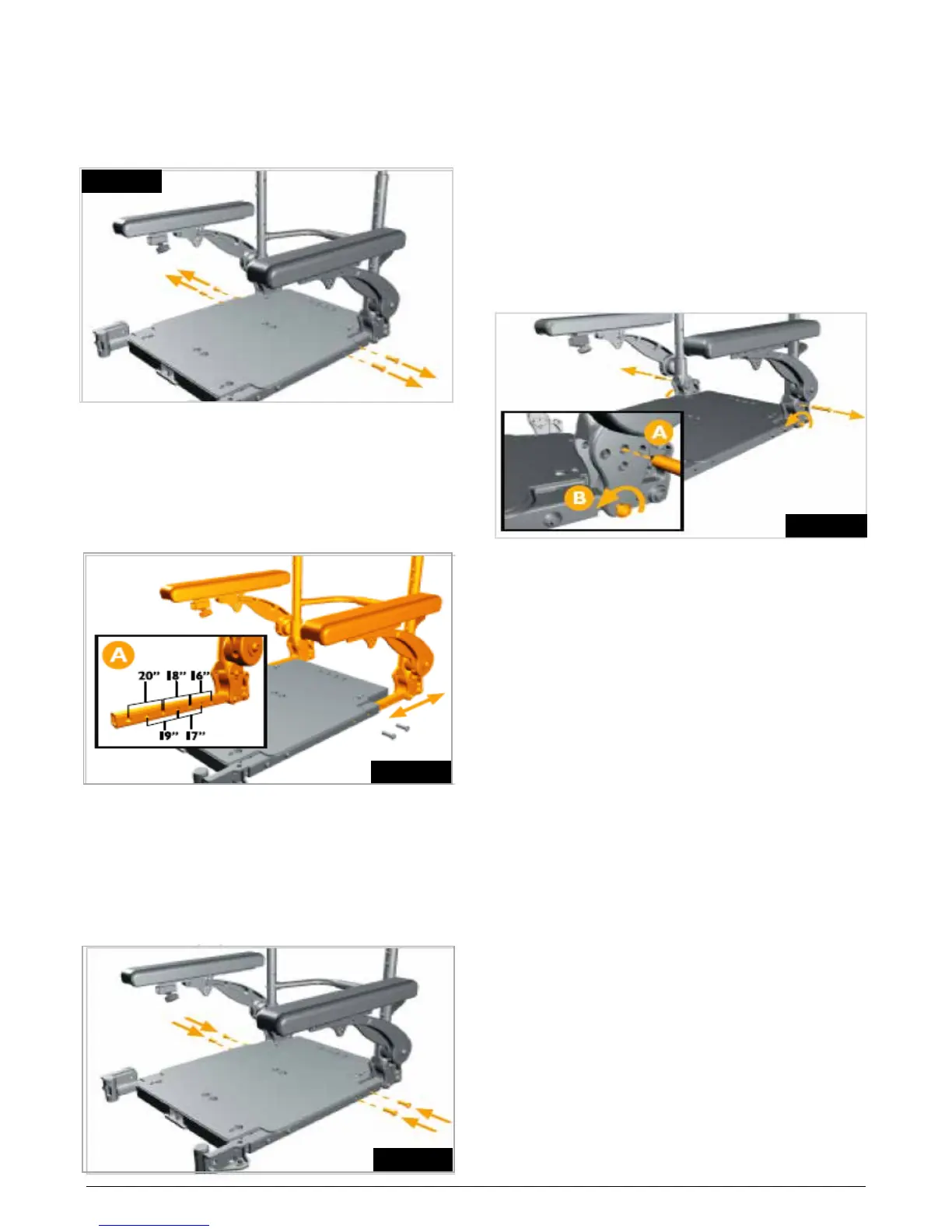

6.10 Standard Seat Depth Adjustment
1. Remove the 5mm depth adjustment bolts from both
sides of the seat, (Fig.6.11).
6.11 Backrest Angle Adjustment
1. Remove the 5mm backrest bracket index bolts (A) on
both sides of the backrest. Loosen the 5mm backrest
bracket pivot bolts (B) on both sides of the backrest.
NOTE: The index bolt (A) may be in a different starting
position than shown below in Fig.6.14.
Fig. 6.11
Fig. 6.14
2. Slide the rear backrest and armrests into the desired
seat depth position. Reference seat depth position
patterns (A), (Fig.6.12).
3. Replace both sets of depth adjustment bolts.
Use 20 N/m or 177 in/lb of torque, (Fig.6.13).
Fig. 6.12
Fig. 6.13
2. Tilt the backrest assembly forward or backward to
the desired angle. See angle configurations below,
(Fig.6.15 next page).
