6.9 Standard Seat height adjustment
WARNING!
Make sure the top frame does not trap your fingers. Get
someone to hold the seat steady during adjustment.
To change the seat height:
Salsa R2 Rear Wheel Drive only:
• Remove the two bolts from the front seat posts, using a
5mm allen key.
• Access the bolts by removing the front cover.
• Take the safety clips off the flat rear posts, pull the ring
pins out and loosen the two clamping bolts.
• Lift/lower the seat height by choosing the required hole
position on the rear seat posts.
• Replace the pins, clips and bolts. Tighten the bolts.
• Choose the matching set of holes for the front seat
posts. Replace and tighten the bolts, (Fig.6.9 - 6.11).
Salsa M2id-Wheel Drive only:
• Release the two handle screws under the front of the
seat frame that connect the seat frame with the seat
module interface.
• Flip the seat frame backwards and secure it with the
safety bar, (like the bonnet of a car).
CAUTION!
• Depending on options, the seat may be heavy to lift.It is
recommended that two people carry out this action.
• Avoid pivoting the seat more than 60°rewards.
• Remove the 2 socket studs from the back seat posts.
• Lift/lower the seat to the required position.
• Align the holes then refit & tighten the socket studs.
• Remove the 2 socket studs from the front seat posts.
• Lift/lower the posts to match the required position.
• Align the holes then refit & tighten the socket studs.
• Close the seat, refit & tighten the hand wheels
(f i g.6.10.1).

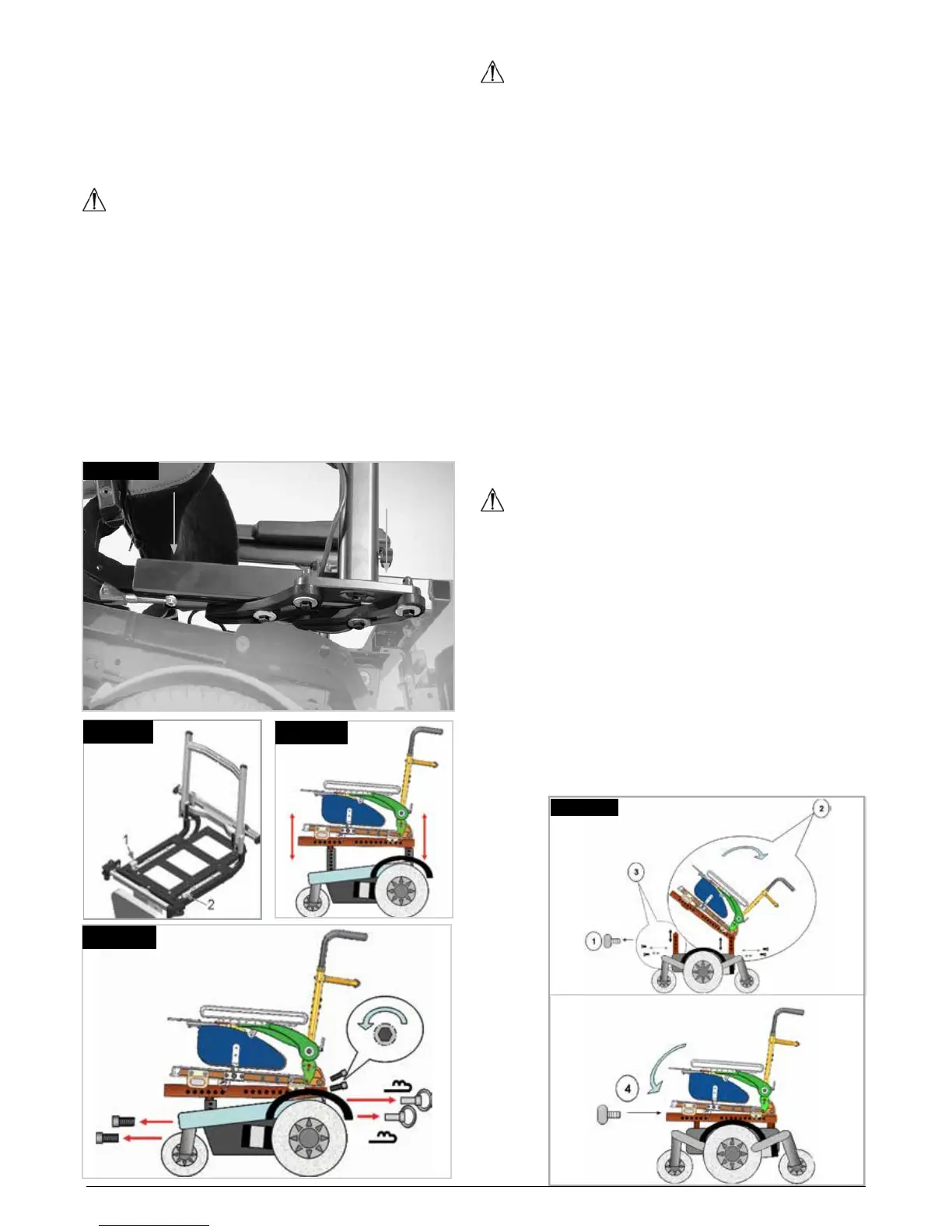

Fig. 6.9
6.8 Rehab seat depth
Loosen the arm rest width adjustment screws, using a
13.0mm spanner, (2 and 3, Fig 6.7).
• Loosen the Mechanical Fixed Recline/ Gas Strut /
electric Actuator fixing screws, (1 and 2, Fig 6.8).
• Repeat for the other side.
• Slide the inner seat frame to the desired position.
• Tighten all screws, (Fig.6.7-6.8).
WARNING!
• Sunrise Medical strongly recommend that you
contact your approved Sunrise medical servicing
agent to carry out this task.
Fig.6.7
1
2
3
4
Fig. 6.8
Fig. 6.10
Fig. 6.10.1
