4. Remove the 4mm towel bar bolts and the towel bar,
(Fig.6.20).
NOTE: This step is not necessary in every case. If the
push handles are high enough, the towel bar bolts might
not thread into the push handle tubes. To test, skip this
step and move to Numbers 5 and 6. If the towel bar does
not impede movement of the push handles, the towel bar
may be left intact.
5. Remove the 4mm back post adjustment bolts,
(Fig.621).
6. Move both back posts to the desired height, (Fig.6.22).
7. Replace the backpost adjustment screws. Use 10 N/m
or 88.5 in/lb of torque, (Fig.6.23).
8. If removed in Number 4, replace the towel bar and
the towel bar bolts. Use 10 N/m or 88.5 in/lb of torque,
(Fig.6.24).
NOTE: The towel bar may be repositioned at this point as
well.
9. Replace both top upholstery bolts. Ensure the bolts
thread through the top upholstery eyelets (A),
(Fig.6.25).

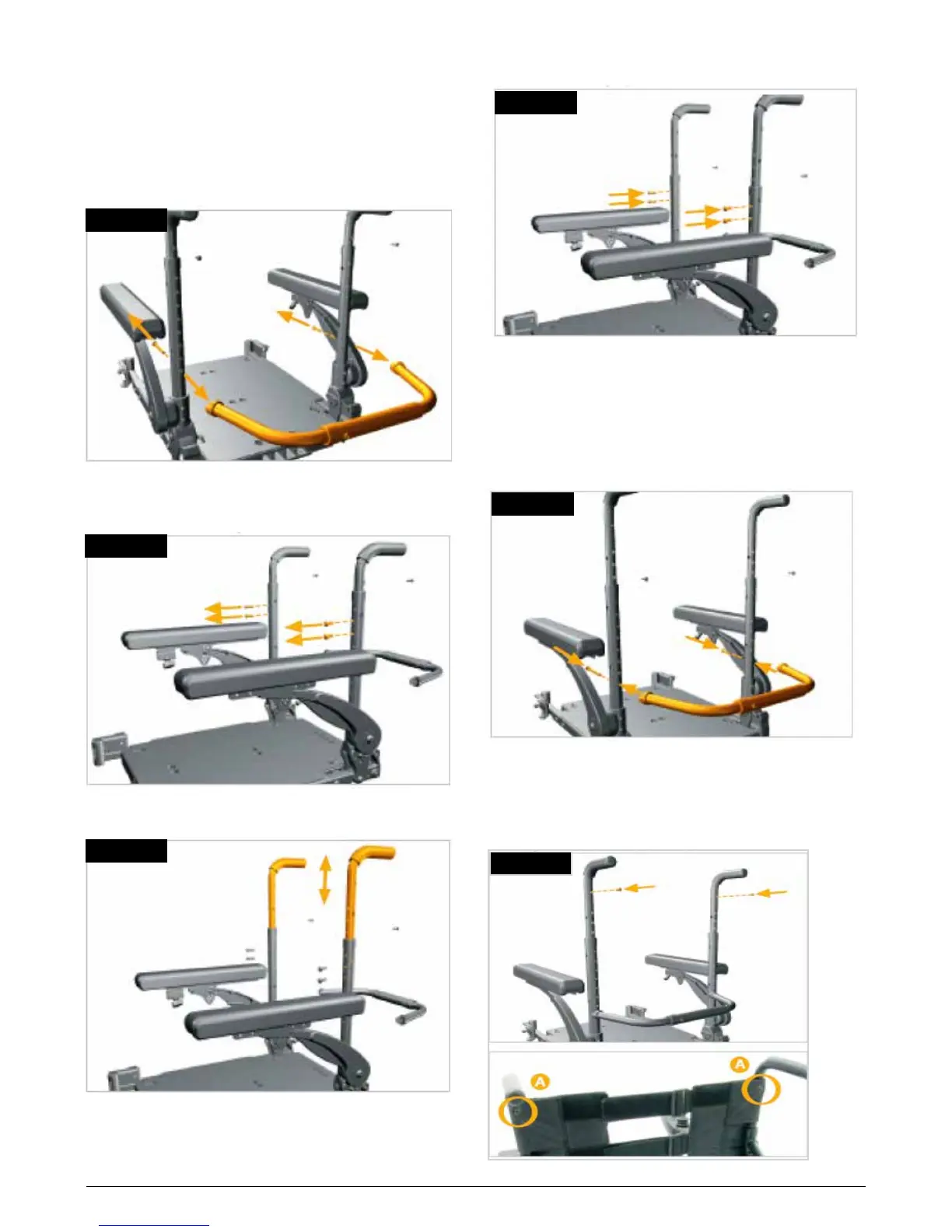

Fig. 6.20
Fig. 6.21
Fig. 6.22
Fig. 6.23
Fig. 6.24
Fig. 6.25
