Step 4- Adjusting the lateral support arms.

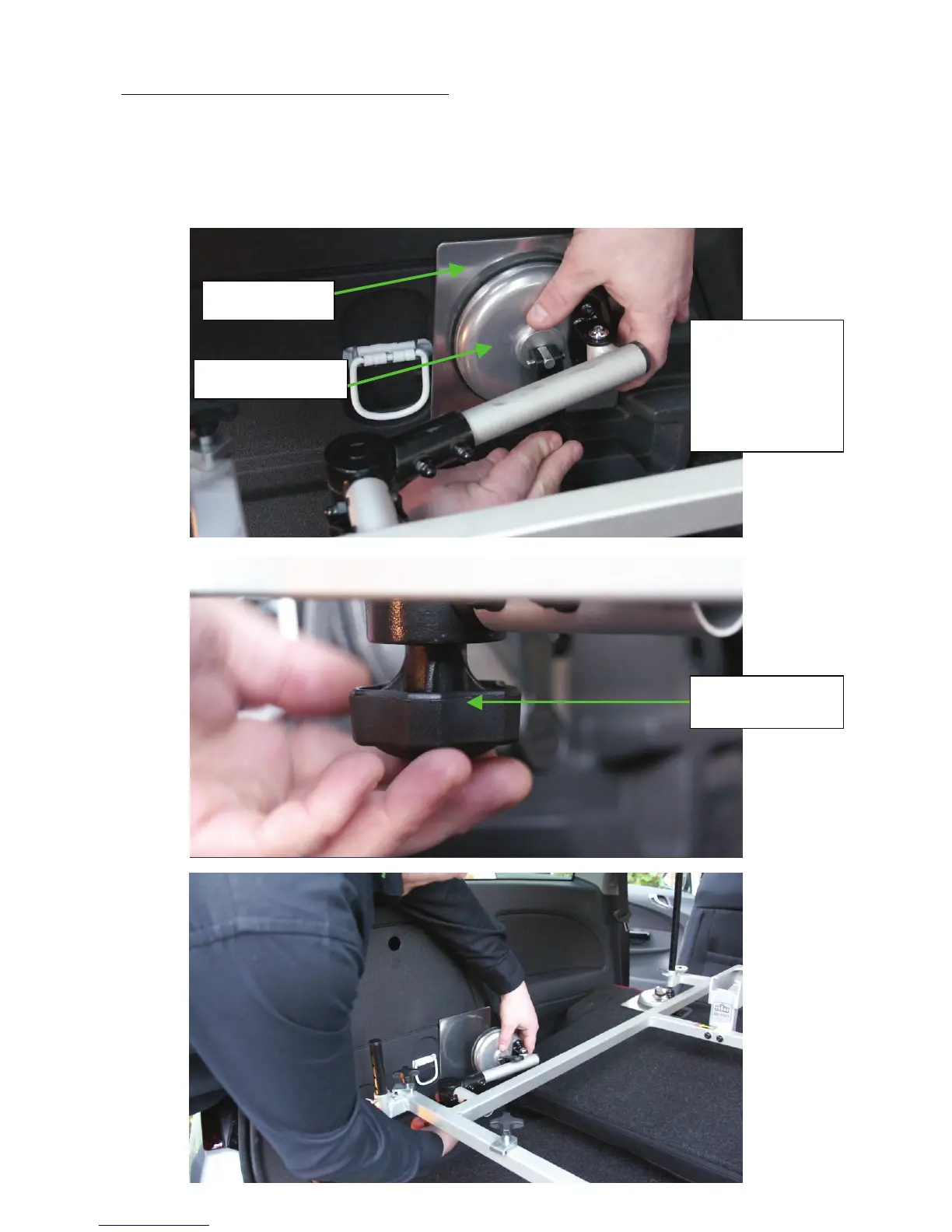

a) Attach and activate the two remaining base plates to the lateral support arms, making
sure the complete suction clamps are on the plate. Loosen the thumb screws on
each of the support arms and manoeuvre them into position so that they are pressed
against the base plate, and then tighten the thumb screw.
Base Plate
Suction Clamp
Press against
Base Plate
Activate Suction
Clamp Lever
Tighten Thumb
Screw
