25

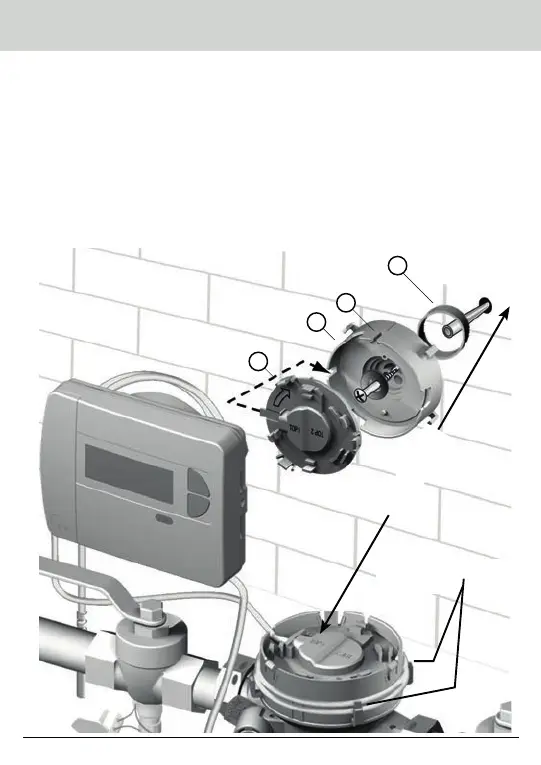

Wall installation with removable calculator unit
Variants with removable calculator unit can be installed up to max. 40 cm away
from the ow sensor using the optional wall bracket.
(1) Attach the spacer (a) and wall bracket (b) in the required position using the
enclosed material. Align the wall bracket in such a way that the groove (b1)
is pointing upwards.
(2) Fit the cover (c) in such a way that the marking "TOP1" can be read horizon-
tally, and click it into the wall bracket.
(3) Take the calculator unit off the ow sensor, unwind the calculator unit cable.
(4) Firmly latch the calculator unit into the wall bracket.
c
b1
b
a
max. 40 cm
Cable holder for excess
cable
