Bubble‐Up®JrInteractive™RadonRemovalSystem
25
Appendix:A



PartNumberBUB‐075A,7GPMStandard45/65PressureSwitch
Forusewithonly115voltBubble‐Uppumps.

PatentNumber:US8,393,875B2

A. SETTINGPRESSURESWITCHFORPROPEROPERATION:
1. Alwaysunplugthepressureswitchbeforeremovingpressureswitchcoverandmakingadjustments.See
pressureadjustmentinstructionsunderthecover.
2. Adjustthelargespringonlyuntilthepressureswitchturnsonat45PSI.
3. Donotadjustthesmallspring.Thiswillkeep20psidifferential.

B. HOWITWORKS
Pressureswitchisconnectedtotheventurithroatpressure.Whenthereis½to1GPMflowthroughtheventurithe
pressureswitchsenseslessthan65psi.Thiskeepsthepumprunningatlowflows.




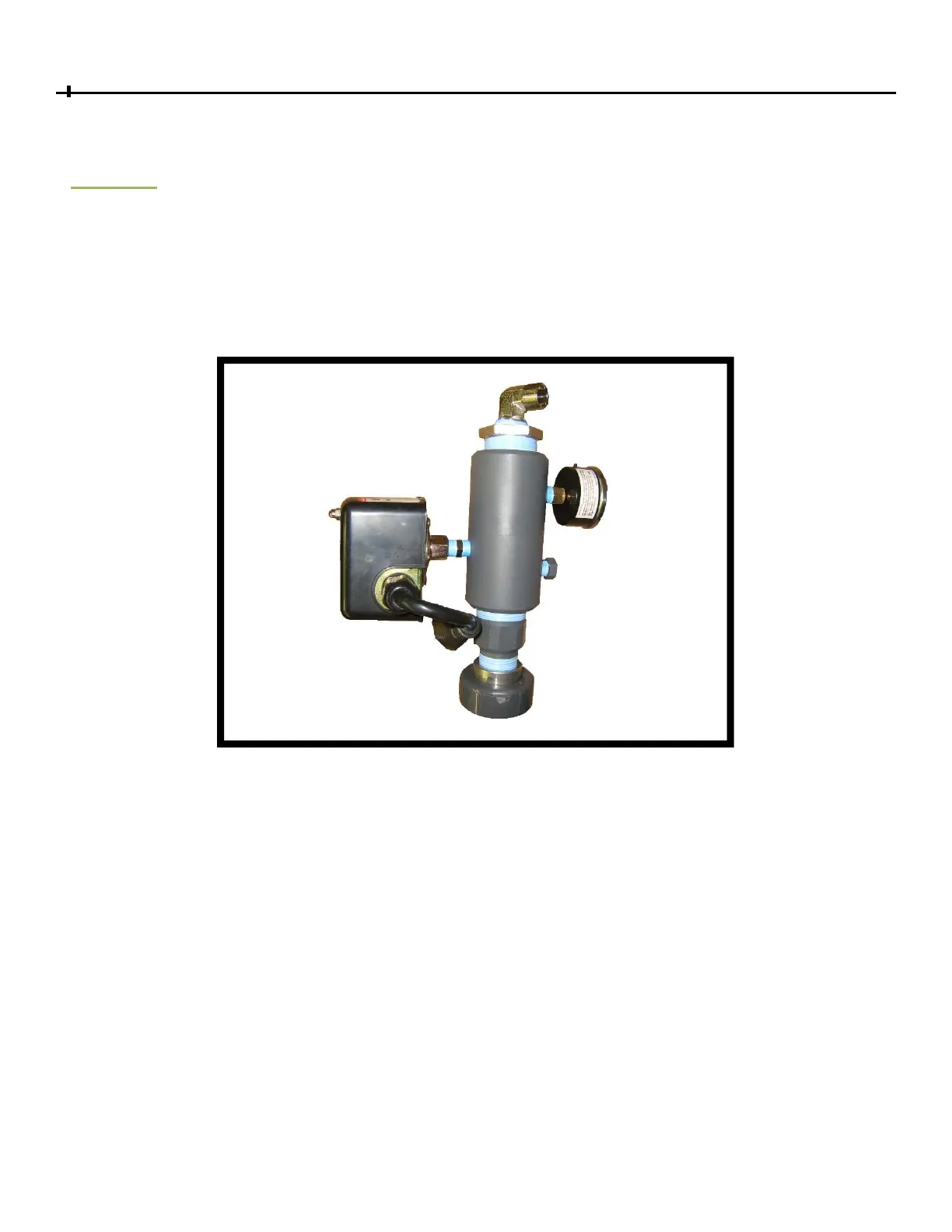

7GPMBubble‐UpMechanicalPump
ControlAssemblyManual
