Bubble‐Up®JrInteractive™RadonRemovalSystem

8



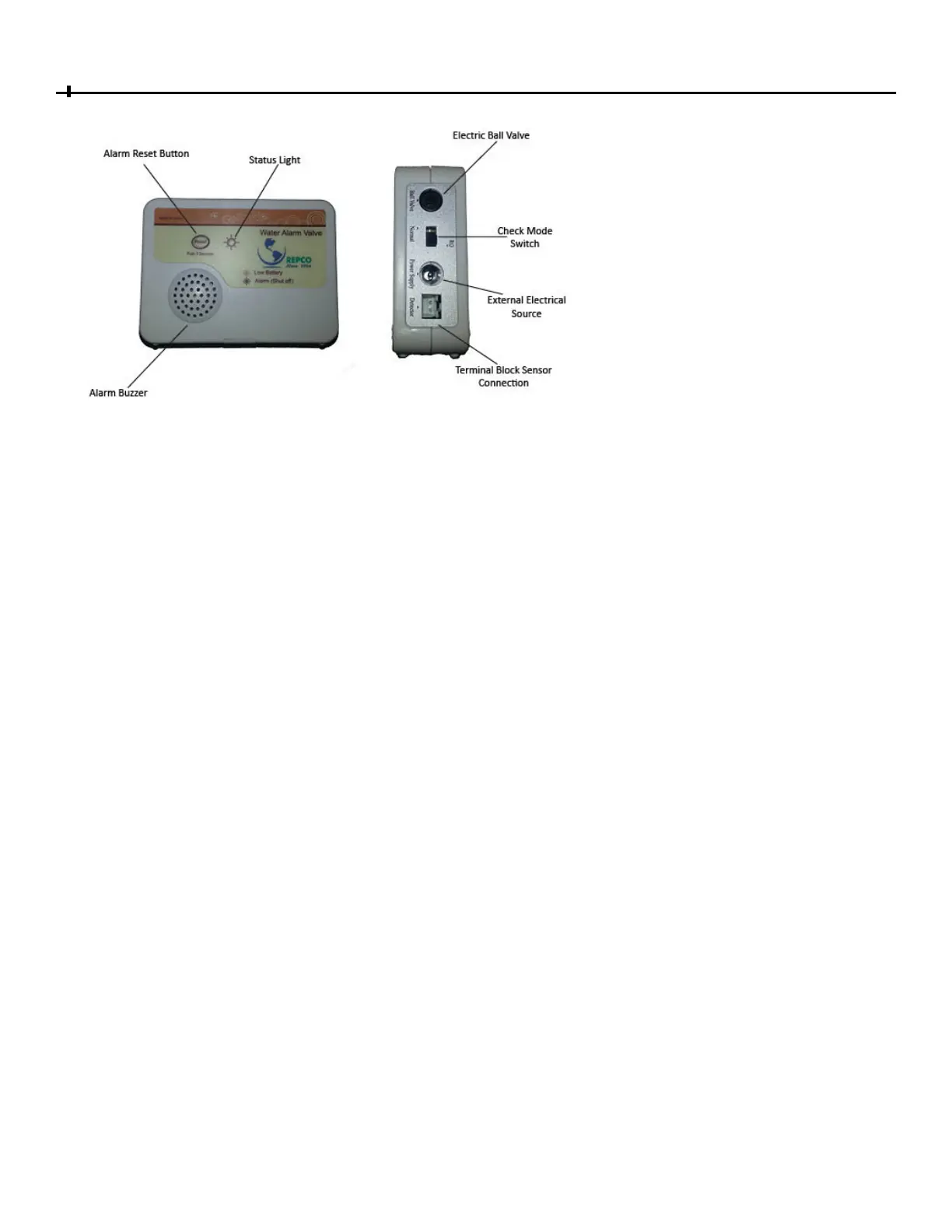

Figure5–WaterAlarmValve



Installation



1. Besurethefloatswitchesarenottangledaroundthepumpbyremovingthe2”ventfittingandvisually

inspectingthefloat.

2. TheBubble‐Up®JrInteractive™comeswithastandard2.1gallonwaterexpansiontank.Plumbthis expansion

tankneartheoutletoftheBubble‐Up®Jr

Interactive™.



Note:Thisexpansiontankcanbeusedforacertainamountofwaterheaterthermalexpansion.Ifyouhaveatanktype

waterheater,checkmanufa cturer’srequirementsfor sizingthermalexpansiontank.

RadonTestingNote:Itisimportanttoinstallanewsamplevalveorboilerdraininnew

pipingsothattheradontesting

isnotinfluencedbyoldpiping.



3. SetthemaintankoftheBubble‐Up®JrInteractive™inthedesiredlocationthatcanholdtheweightofthe

Bubble‐Up®JrInteractive™shownintheSpecificationSectiononpage2.Chooseaflat,level

surfacewithample

set‐upspace.

4. Incaseofamalfunction,theunitcouldoverflow.TheBubble‐Up®JrInteractive™isfittedwithanoverflow

pipe.(Theoverflowpipeismountedneartherearoftheunit.SeeFigure7)Takethisintoaccountwhen

positioningtheunit.It

isbestiftheunitcanbepositionednearadrainorsumppitwithasumppump.

5. Depressthehighwateralarmfloatsoitisflushwiththerubbercordseal.(Figure6)

6. Setwateralarmsensoronfloorandwiretoterminalblock,onewireon

theblackconnectionandonewireon

theredconnection.



Importantnoteaboutover flow:TheBubble‐Up®JrInteractive™incorporatesahighwateralarmfloatswitchinthecord

seal,awateralarmtanktopterminalblock sensorandawateralarmfloorsensor.Thecontr olwilloperatethewater



alarmvalveandshutoffincomingwaterwhenthereisanobstructionintheradonexhaustpipe,wateraroundthefloor

sensorortanktoterminalblocksensor,afaultyfloatswitchassembly,tangledfloatswitchassembly,orifthesolenoid

valveisstuckopen.Thiswateralarmvalvehas

abatterybackupandwillfunctionduringapoweroutage.However,

additionaloverflowprecautionsshouldbetakensuchasconnectingtheoverflowtoaproperdrain.



Caution!Normally,theoutputfromthepumpisatapressureof70PSI.Thisshouldnotcreateaprobleminan

installationwhere

theexistingplumbingisingoodcondition.However,inaninstallationwheretheexistingplumbing

cannotwithstandtheoperatingpressureoftheBubble‐Up®JrInteractive™,theoutputfromthepumpmayproducea
