2 Wildcat (BL2000)
• Backup battery.
• Ability to send e-mail and serve Web pages containing embedded data from single-
board computer.
• Remote program downloading and debugging capability via RabbitLink.
• Boards with the CE mark are CE-compliant.
• Optional plastic enclosure (can be wall-mounted or panel-mounted) and LED light
pipes (enclosure and light pipes are included with the Tool Kit, and are also sold sepa-
rately).
Appendix A provides detailed specifications.
Four models of the BL2000 are available. Their standard features are summarized in
Table 1.
1.2.1 Connector Options
In addition to the standard screw-terminal connectors supplied on BL2000 boards, IDC
headers, bottom-mount connectors, and polarized friction-lock terminals may be factory-
installed instead. Visit our Web site at www.rabbit.com or contact your Rabbit sales repre-
sentative or authorized distributor for further information.
Table 1. BL2000 Series Features
Model Features
BL2000 Full-featured single-board computer.
BL2010
BL2000 with eleven 10-bit A/D converter inputs (no D/A
converter outputs).
BL2020 BL2000 without Ethernet interface, only 6 LEDs.
BL2030 BL2010 without Ethernet interface, only 6 LEDs.

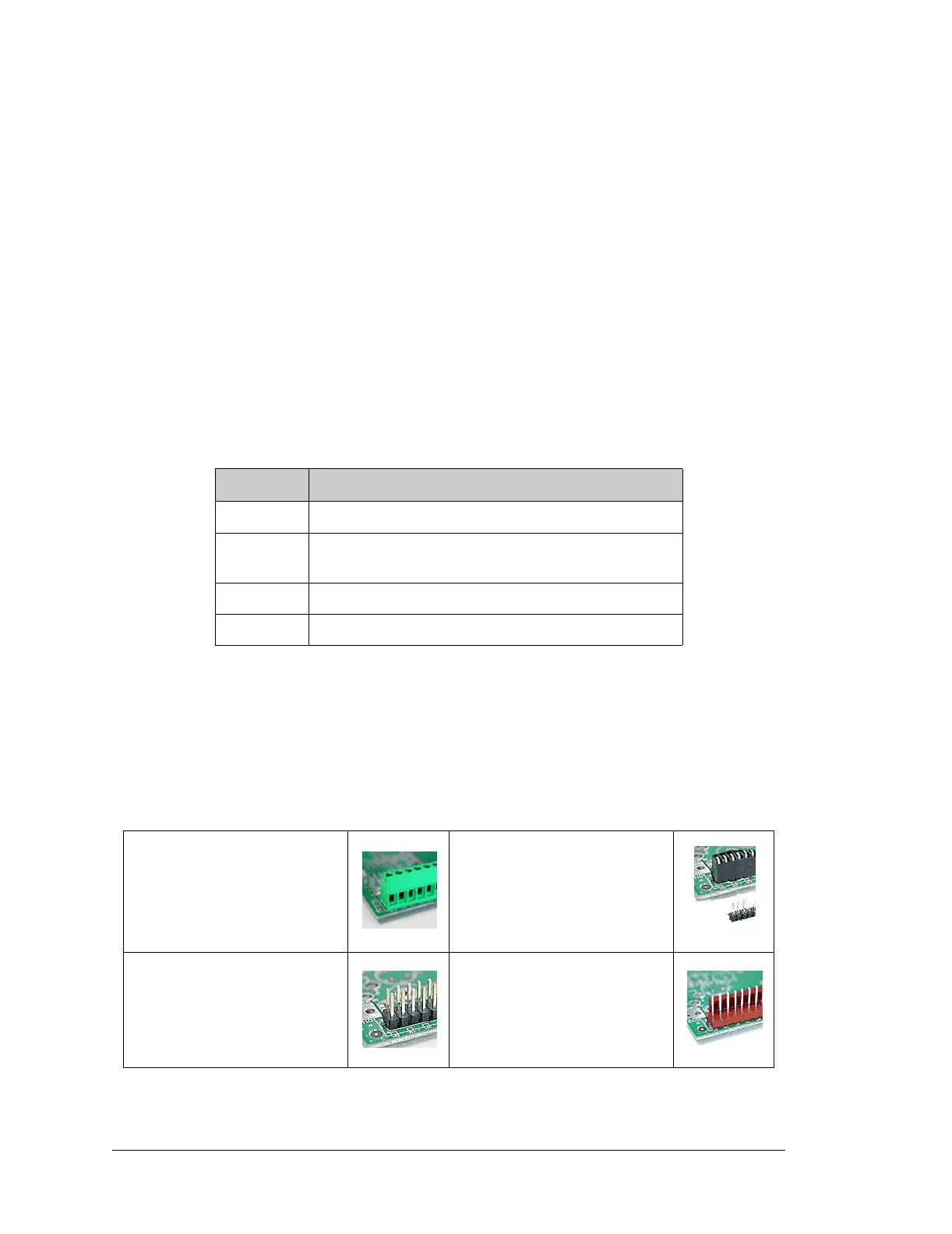

Standard screw terminals, accept
up to 14 AWG (1.5 mm
2
) wire
“Bottom-mount connector” to
mount BL2000 directly on 0.1"
pitch pins located on motherboard
2 × 17 IDC headers, 0.1" pitch
Polarized friction-lock terminals,
0.1" pitch
