A.1.1 Headers
The BL2000 has an option for 0.1" IDC headers or friction-lock connectors at J1, J3, J10,
and J11 for physical connection to other boards or ribbon cables.

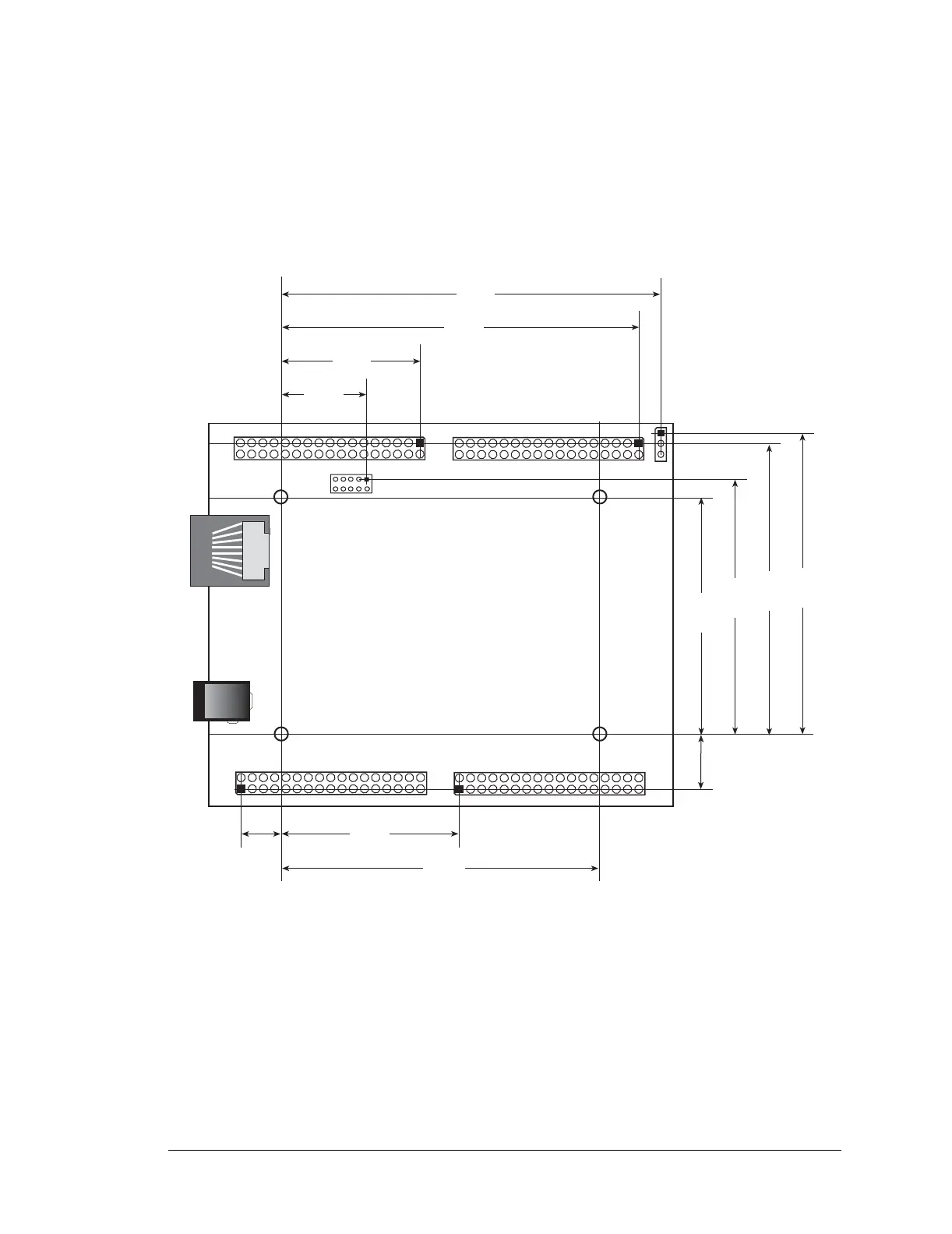

Figure A-2 shows the BL2000 footprint. These values are relative to one of the mounting
holes.
Figure A-2. User Board Footprint for BL2000
NOTE: The same footprint applies for the IDC header and bottom-mount socket options.
J1
J3
J12
J11
J10
J6
J7
1.589
(40.4)
2.839
(72.1)
0.361
(9.2)
0.760
(19.3)
3.189
(81.0)
1.239
(31.5)
3.380
(85.9)
0.487
(12.4)
2.641
(67.1)
2.113
(53.7)
2.280
(57.9)
2.598
(66.0)
J5
