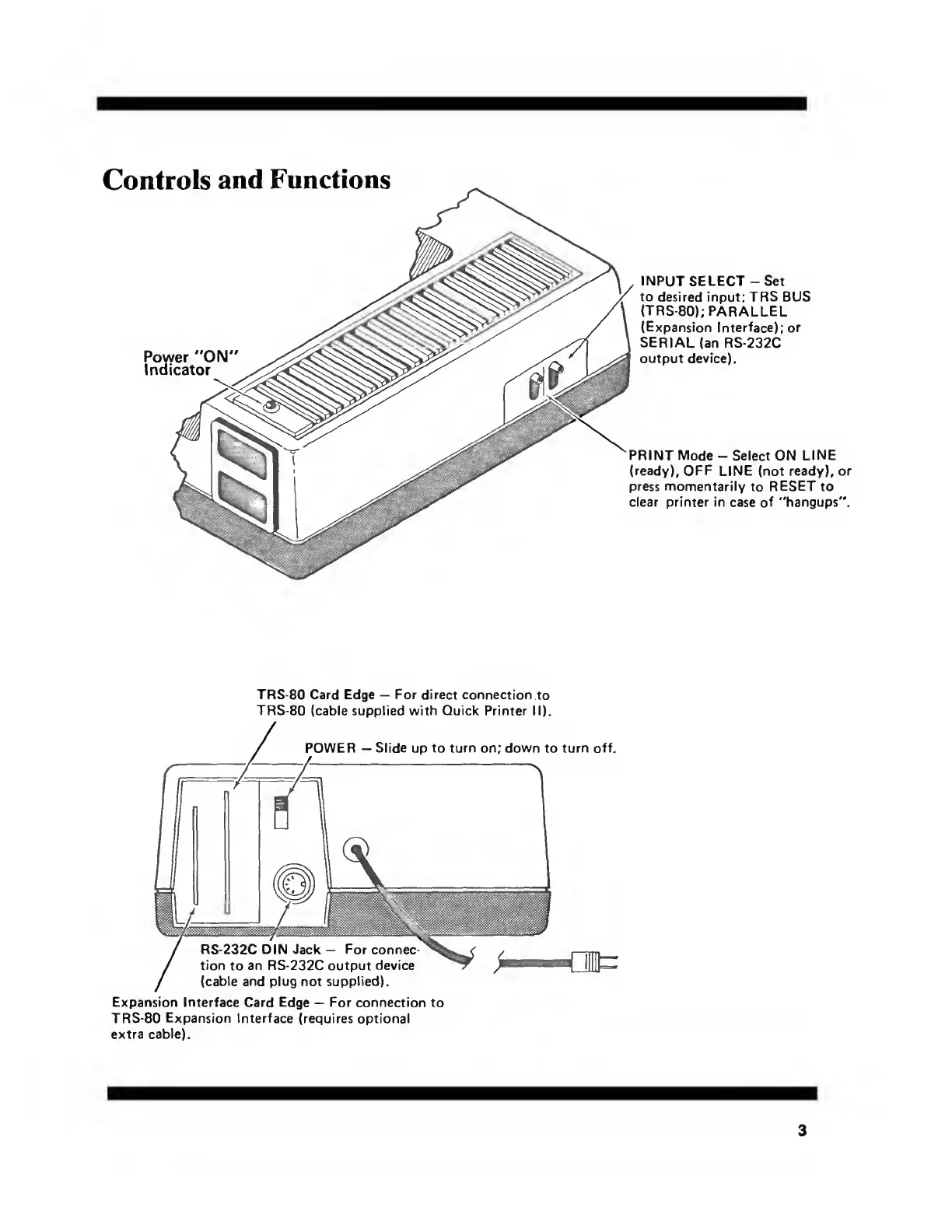

Controls
and Functions
Power
"ON"
Indicator
INPUT SELECT -Set
to
desired input; TRS BUS
(TRS-80);
PARALLEL
(Expansion Interface); or
SERIAL (an RS-232C
output device).
PRINT
Mode
-
Select ON
LINE
ready), OFF
LINE (not ready), or
press momentarily
to
RESET
to
clear printer in case
of
"hangups".
TRS-80 Card Edge
—
For direct connection
to
TRS-80
(cable supplied with
Quick Printer
II).
POWER
—
Slide
up
to turn
on;
down
to turn off.
RS-232C DIN Jack
-
For
connec-
tion
to
an RS-232C output device
(cable and plug not supplied).
Expansion Interface
Card Edge
—
For connection to
TRS-80 Expansion Interface
(requires optional
extra cable).
;
