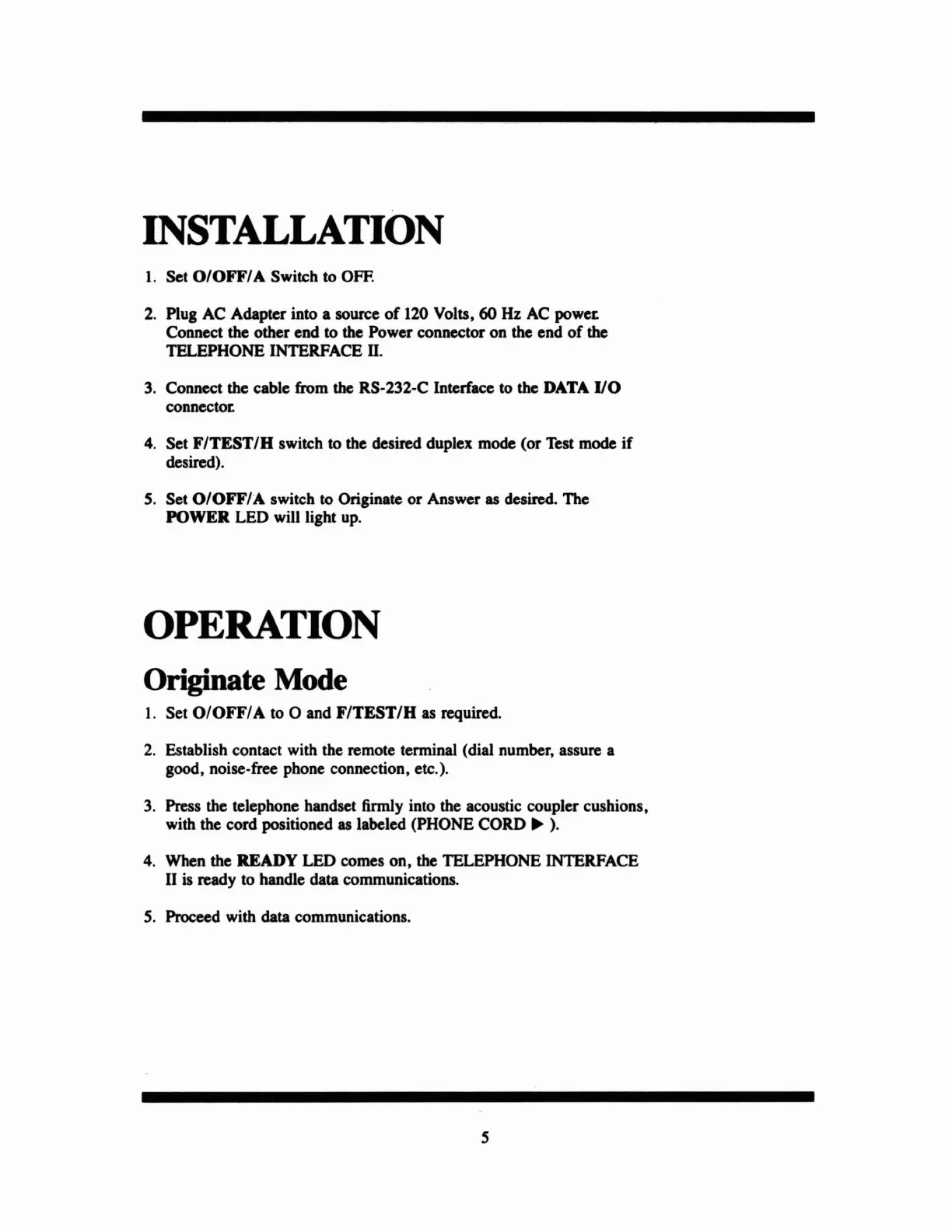

INSTALLATION
1.
Set
O/OFFI
A Switch to
OFF.
2.
Plug
AC
Adapter into a source
of
120
Volts, 60
Hz
AC
powet
Connect the other end to the Power connector on the end
of
the
TELEPHONE INTERFACE II.
3.
Connect the cable from
the
RS-232-C Interface to
the
DATA
1/0
connectot
4.
Set
F/TEST/H
switch to the desired duplex mode (or Test mode
if
desired).
S.
Set
O/OFF/A
switch to Originate
or
Answer as desired. The
POWER LED will light
up.
OPERATION
Originate Mode
1.
Set
O/OFFI
A to 0 and
F/TEST/H
as required.
2.
Establish contact with the remote terminal (dial number, assure a
good, noise-free phone connection, etc.).
3.
Press the telephone handset firmly into the acoustic coupler cushions,
with the cord positioned
as
labeled (PHONE CORD •
).
4.
When the
READY
LED comes on, the TELEPHONE INTERFACE
II
is
ready to handle data communications.
S.
Proceed with data communications.
