7
When you choose an antenna, keep in
mind that, for the best performance, you
should mount the antenna:
• as high as possible on your vehicle,
home or building
• as far as possible from source of
electrical noise
• vertically

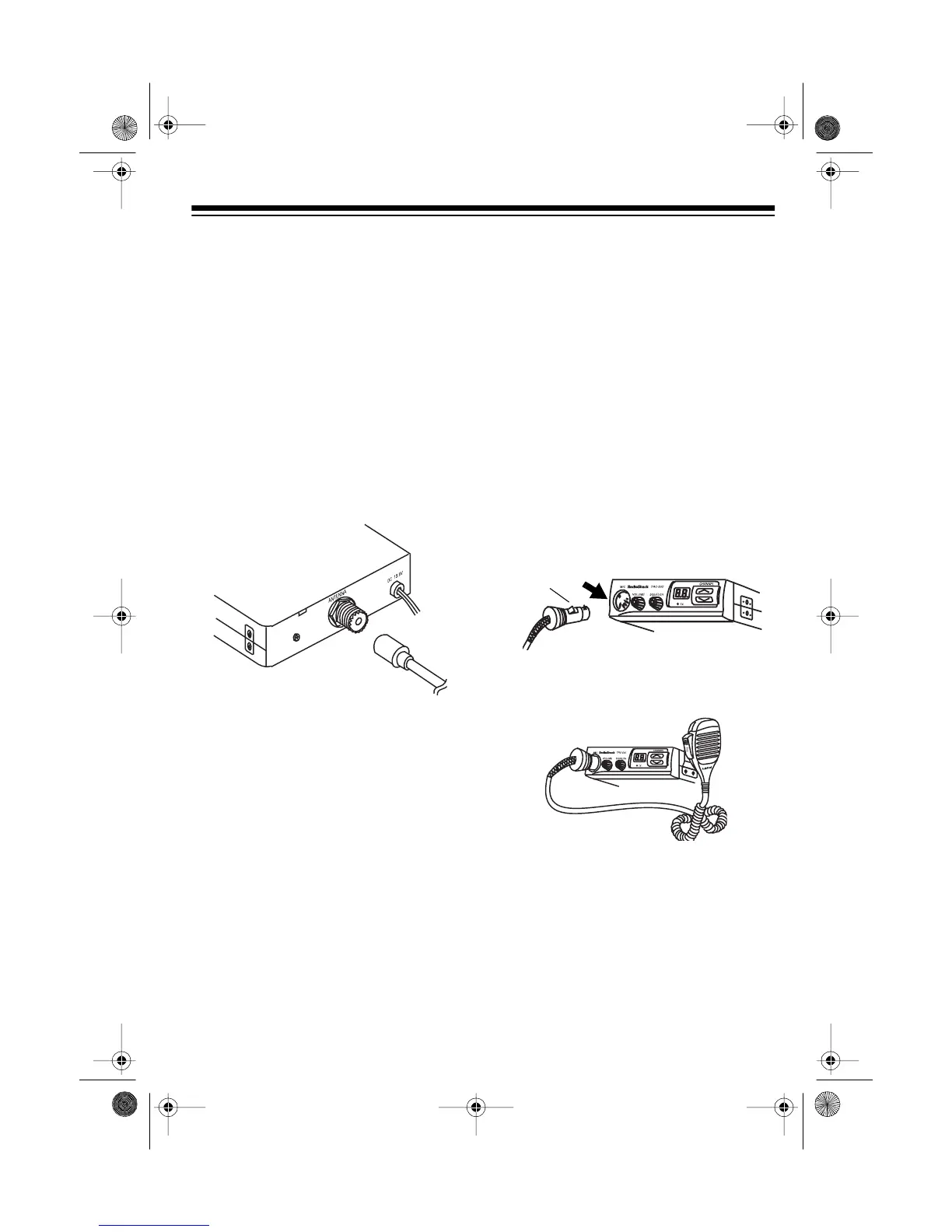

Once you choose an antenna, follow its
mounting instructions. Then route the
cable to the CB and connect the cable to
ANTENNA
on the back of the CB.
Cautions
:
• Avoid routing the cable next to sharp
edges or moving parts which might
damage the cable.
• Do not run the cable next to power
cables or other radio antenna
cables.
• Do not run the cable through a vehi-
cle’s engine compartment or other
areas that produce extreme heat.
To take advantage of your radio’s maxi-
mum range, adjust the antenna’s Stand-
ing Wave Ratio (SWR) using an SWR
meter (such as Cat. No. 21-523).
Follow the instructions supplied with the
SWR meter and antenna to adjust your
antenna’s SWR to the lowest possible
value. SWR values of 2.0:1 are general-
ly acceptable, with readings of 1.5:1 or
lower being more desirable.
CONNECTING THE
MICROPHONE
1. Press the plastic tab on the top of
the supplied microphone’s plug and
align the 5-pin DIN microphone plug
with the corresponding pin holes in
the CB’s
MIC
jack. Then push the
plug into the mic jack.
2. Slide the microphone onto the
microphone holder.
To disconnect the microphone from the
CB, press the plastic tab on the side of
the plug, then pull out the plug.
Caution
: Never pull on the microphone
cable.
Tab
21-1702.fm Page 7 Thursday, August 5, 1999 1:02 PM
