Follow these steps to install the CB as a
base station.
1. Mount the base station antenna as
described in it’s owner’s manual.
2. Connect the antenna to
ANTENNA
.
3. Connect the CB’s black power wire
to the negative (–) terminal on the
DC power supply.
4. Connect the CB’s red wire to the
positive (+) terminal on the DC
power supply.
5. Connect the DC power supply to a
standard AC outlet.
Caution
: To prevent damage to the CB,
be sure you connect an antenna and the
microphone before you use the CB.

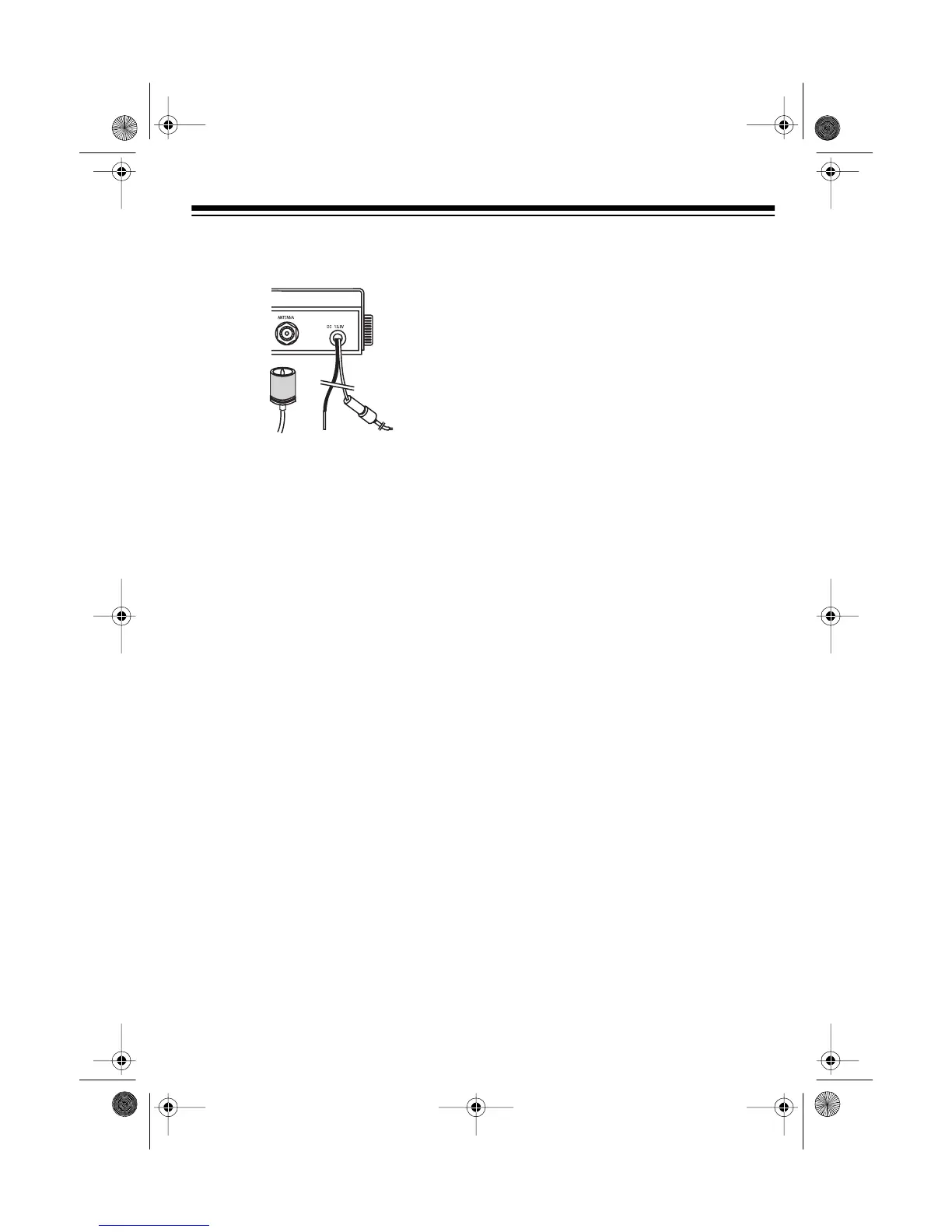

Black Wire
to Ne
ative
Red Wire
to Positive
Antenna
Terminal of
DC Power
Terminal of
DC Power
Suppl
Suppl
Wire
