29
Line 1 Pulse = 2 nsec VOP
V Gain = 4 x
VOP = 83%
L1=08 dBRL
Batt
P r e s s
*
1 1 2 ft
3 4 m
2
1
Line 1 Pulse = 25 nsec VOP
V Gain = 1 x
VOP = 83%
L1 =25 dBRL
Batt
P r e s s
*
8 7 ft
2 6 m
2
1

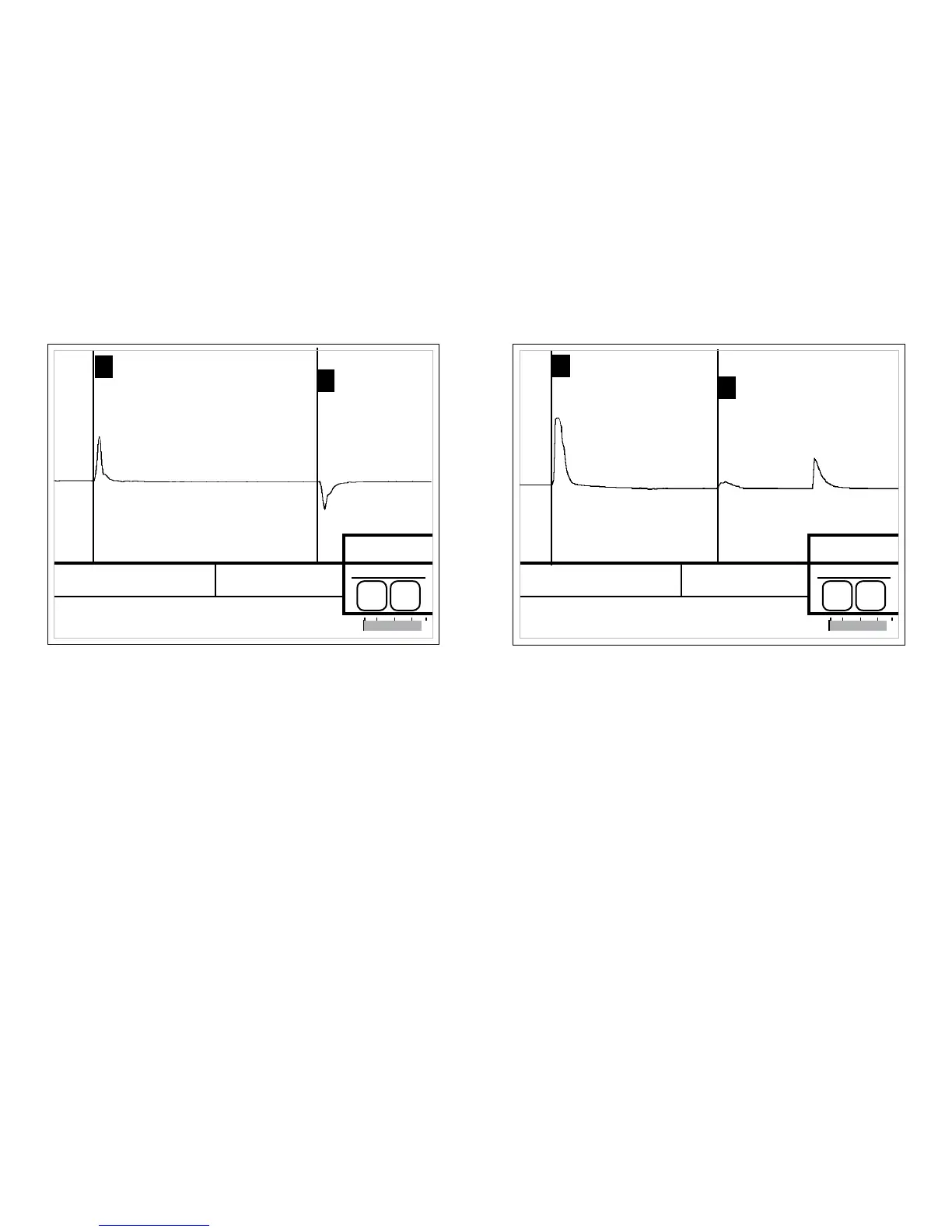

A reflection with the opposite polarity indicates a fault
with short (low impedance) tendencies. The reflection
shown at the 2nd cursor is a dead short.
The middle reflection at the 2nd cursor is a partial
open followed by a complete open (end of the
cable). The more severe the fault, the larger the
reflection.
